  • AX 6320450 | Operating housing AX with handle strips, The command panel with handle strips based on AX, carbon steel, with support arm cut-out Ø 130 mm to match the support arm system CP 60/120/180, service access from rear, aluminum front panel can

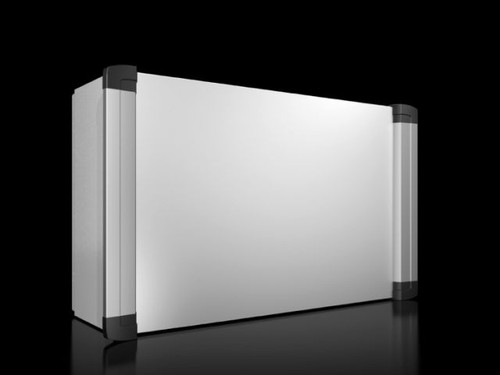

AX 6320450 | Operating housing AX with handle strips, The command panel with handle strips based on AX, carbon steel, with support arm cut-out Ø 130 mm to match the support arm system CP 60/120/180, service access from rear, aluminum front panel can

RITTAL

No reviews yet Write a Review
SKU:
AX 6320450
$928.60
AX 6320450 | Operating housing AX with handle strips, The command panel with handle strips based on AX, carbon steel, with support arm cut-out Ø 130 mm to match the support arm system CP 60/120/180, service access from rear, aluminum front panel can Image_1
Condition:
New
Width:
19.70 (in)
Height:
19.70 (in)
Depth:
8.27 (in)
Shipping:
Calculated at Checkout
Operating housing AX with handle strips, The command panel with handle strips based on AX, carbon steel, with support arm cut-out Ø 130 mm to match the support arm system CP 60/120/180, service access from rear, aluminum front panel can be easily rem View full description
$928.60
40 people looking at this.

Extra Information

Brand:
RITTAL
Width:
19.70 (in)
Height:
19.70 (in)
Depth:
8.27 (in)
Data Sheet:
Material:
Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal Front panel: Aluminum Cover caps: Plastic
Base Material:
Carbon steel
Surface Finish:
Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Handle strip: Natural anodized Front panel: Natural anodized.
Color:
Housing and door: RAL 7035 Handle strip: Natural anodized Front panel: Natural anodized. Cover caps: Similar to RAL 7024
Supply Includes:
Housing with cut-out and reinforcement for support arm connection Ø 130 mm Front with maximum cut-out, covered with easily machinable 3 mm aluminum front panel Side handle strips with cover caps Integral interior mounting bracket with system punching
Width (mm):
500mm
Height (mm):
500mm
Depth (mm):
210mm
Width (in):
19.7in
Height (in):
19.7in
Depth (in):
8.27in
IK Code:
IK08
NEMA Rating:
NEMA 1 | NEMA 12
UL Type Rating:
Type 1 | Type 12
Customs Tariff No:
94032080
Packaging Unit:
1 pc(s).
Net Weight (kg):
12.288
Net Weight (lb):
27.090
Gross Weight (kg):
13.000
Gross Weight (lb):
28.660
EAN:
4028177923171
ETIM 9:
EC002504
ETIM 8:
EC002504
ECLASS 8.0:
27180505
