RITTAL
SKU: HD 1330600

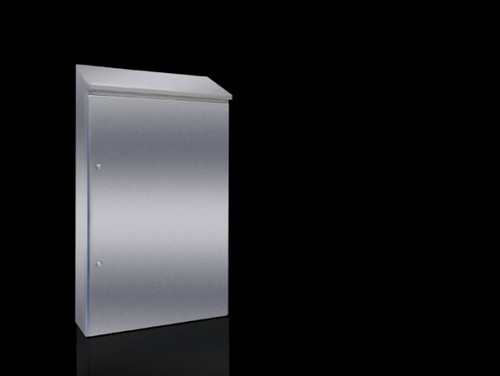

HD 1330600 | Compact enclosure HD, single-door, Enclosure solution tailored to the requirements of the food and beverage industry. Roof angled forwards by 30Deg. Seal dyed blue to clearly distinguish it from foodstuffs, Housing and door: Stainless st
Data Sheet: Data SheetMaterial: Housing and door: Stainless steel 1.4301 (AISI 304) Mounting plate: Carbon steel HD lock inserts: Stainless steel 1.4404 (AISI 316L) Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600Base Material: Stainless steel 1.4301 (AISI 304)Surface Finish: Housing and door: Brushed, grain 400, peak-to-valley height < 0.8 µm Mounting panel: Zinc-plated Seal: Blue, dyed (RAL 5010)Supply Includes: Housing of all-round solid construction Door with fitted seal Door hinged on the right, may be swapped to the left Mounting panelMounting Plate Dims: 879 mm x 871 mm ( 34.6 ? x 34.3 ? )Width (mm): 940mmDepth (mm): 300mmWidth (in): 37inDepth (in): 11.8inIP Rating: IP 66 | IP X9IK Code: IK08NEMA Rating: NEMA 1 | NEMA 3 | NEMA 3X | NEMA 4 | NEMA 4X | NEMA 12 | NEMA 13UL Type Rating: Type 1 | Type 3 | Type 3X | Type 4 | Type 4X | Type 12 | Type 13Customs Tariff No: 9403200082Packaging Unit: 1 pc(s).UPC Code: 91534EAN: 4028177953062ETIM 9: EC000261ETIM 8: EC000261ECLASS 8.0: 27180101$4,368.92Please Call/Email for Stock Availability (864)-458-9988
