Baying systems TS 8

(Showing 12 of 63)
Compare
Show 12 24 All
  • TS 8406500 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on Image_1
    Quick view

    RITTAL

    SKU: TS 8406500

    TS 8406500 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Gland plate Mounting panel 2 TS punched rails, 18 x 38 mm
    Number of Doors: 1
    Width (mm): 400mm
    Depth (mm): 600mm
    Width (in): 15.7in
    Height (in): 78.7in
    Depth (in): 23.6in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 9403200082
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 113.977
    Net Weight (lb): 251.276
    Gross Weight (kg): 121.252
    Gross Weight (lb): 267.315
    UPC Code: 85880
    EAN: 4028177571426
    ECLASS 8.0: 27180101
    $2,167.39
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8406510 | TS Bayed enclosure system, WHD: 400x2000x600 mm, sheet steel, without mounting plate, single door at the frontImage_1
    Quick view

    RITTAL

    SKU: TS 8406510

    TS 8406510 | TS Bayed enclosure system, WHD: 400x2000x600 mm, sheet steel, without mounting plate, single door at the front

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit 2 support strips fitted in the enclosure depth
    Number of Doors: 1
    Width (mm): 400mm
    Depth (mm): 600mm
    Width (in): 15.7in
    Height (in): 78.7in
    Depth (in): 23.6in
    IP Rating: IP 55 in conjunction with side panels and gland plates
    IK Code: IK09
    NEMA Rating: NEMA 12 in conjunction with side panels and gland plates
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 51.700
    Net Weight (lb): 113.979
    Gross Weight (kg): 55.600
    Gross Weight (lb): 122.577
    EAN: 4028177357273
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $2,051.02
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8485500 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on Image_1
    Quick view

    RITTAL

    SKU: TS 8485500

    TS 8485500 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Gland plate Mounting panel 2 TS punched rails, 18 x 38 mm
    Number of Doors: 1
    Width (mm): 400mm
    Depth (mm): 500mm
    Width (in): 15.7in
    Height (in): 70.9in
    Depth (in): 19.7in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 9403200082
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 286.927
    Net Weight (lb): 632.565
    Gross Weight (kg): 302.028
    Gross Weight (lb): 665.857
    UPC Code: 92868
    ECLASS 8.0: 27180101
    $1,899.05
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8485510 | TS Bayed enclosure system, WHD: 400x1800x500 mm, sheet steel, without mounting plate, single door at the frontImage_1
    Quick view

    RITTAL

    SKU: TS 8485510

    TS 8485510 | TS Bayed enclosure system, WHD: 400x1800x500 mm, sheet steel, without mounting plate, single door at the front

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit
    Number of Doors: 1
    Width (mm): 400mm
    Depth (mm): 500mm
    Width (in): 15.7in
    Height (in): 70.9in
    Depth (in): 19.7in
    IP Rating: IP 55 in conjunction with side panels and gland plates
    IK Code: IK09
    NEMA Rating: NEMA 12 in conjunction with side panels and gland plates
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 49.020
    Net Weight (lb): 108.070
    Gross Weight (kg): 51.600
    Gross Weight (lb): 113.758
    EAN: 4028177357242
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $1,604.65
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8604500 | TS Bayed enclosure system, WHD: 600x2000x400 mm, Sheet steel, with mounting plate, single door at the frontImage_1
    Quick view

    RITTAL

    SKU: TS 8604500

    TS 8604500 | TS Bayed enclosure system, WHD: 600x2000x400 mm, Sheet steel, with mounting plate, single door at the front

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base plates: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and base plates: Zinc-plated
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting panel 2 TS punched rails, 18 x 38 mm
    Mounting Plate Dims: 499 mm x 1,896 mm ( 19.6 ? x 74.6 ? )
    Number of Doors: 1
    Width (mm): 600mm
    Depth (mm): 400mm
    Width (in): 23.6in
    Height (in): 78.7in
    Depth (in): 15.7in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 92.720
    Net Weight (lb): 204.412
    Gross Weight (kg): 97.600
    Gross Weight (lb): 215.171
    EAN: 4028177250796
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $2,134.72
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8605500 | TS Bayed enclosure system, WHD: 600x2000x500 mm, Sheet steel, with mounting plate, single door at the frontImage_1
    Quick view

    RITTAL

    SKU: TS 8605500

    TS 8605500 | TS Bayed enclosure system, WHD: 600x2000x500 mm, Sheet steel, with mounting plate, single door at the front

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base plates: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and base plates: Zinc-plated
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting panel 2 TS punched rails, 18 x 38 mm
    Mounting Plate Dims: 499 mm x 1,896 mm ( 19.6 ? x 74.6 ? )
    Number of Doors: 1
    Width (mm): 600mm
    Depth (mm): 500mm
    Width (in): 23.6in
    Height (in): 78.7in
    Depth (in): 19.7in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 96.230
    Net Weight (lb): 212.151
    Gross Weight (kg): 101.300
    Gross Weight (lb): 223.328
    EAN: 4028177250802
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $2,234.20
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8606500 | TS Bayed enclosure system, WHD: 600x2000x600 mm, Sheet steel, with mounting plate, single door at the frontImage_1
    Quick view

    RITTAL

    SKU: TS 8606500

    TS 8606500 | TS Bayed enclosure system, WHD: 600x2000x600 mm, Sheet steel, with mounting plate, single door at the front

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base plates: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and base plates: Zinc-plated
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting panel 2 TS punched rails, 18 x 38 mm 2 support strips fitted in the enclosu
    Mounting Plate Dims: 499 mm x 1,896 mm ( 19.6 ? x 74.6 ? )
    Number of Doors: 1
    Width (mm): 600mm
    Depth (mm): 600mm
    Width (in): 23.6in
    Height (in): 78.7in
    Depth (in): 23.6in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 98.800
    Net Weight (lb): 217.816
    Gross Weight (kg): 104.000
    Gross Weight (lb): 229.280
    EAN: 4028177250819
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $2,312.75
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8608500 | TS Bayed enclosure system, WHD: 600x2000x800 mm, Sheet steel, with mounting plate, single door at the frontImage_1
    Quick view

    RITTAL

    SKU: TS 8608500

    TS 8608500 | TS Bayed enclosure system, WHD: 600x2000x800 mm, Sheet steel, with mounting plate, single door at the front

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base plates: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and base plates: Zinc-plated
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting panel 2 TS punched rails, 18 x 38 mm 2 support strips fitted in the enclosu
    Mounting Plate Dims: 499 mm x 1,896 mm ( 19.6 ? x 74.6 ? )
    Number of Doors: 1
    Width (mm): 600mm
    Depth (mm): 800mm
    Width (in): 23.6in
    Height (in): 78.7in
    Depth (in): 31.5in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 105.735
    Net Weight (lb): 233.105
    Gross Weight (kg): 108.800
    Gross Weight (lb): 239.863
    EAN: 4028177250956
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $2,421.40
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8625500 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on Image_1
    Quick view

    RITTAL

    SKU: TS 8625500

    TS 8625500 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Gland plate Mounting panel 2 TS punched rails, 18 x 38 mm
    Number of Doors: 1
    Width (mm): 600mm
    Depth (mm): 500mm
    Width (in): 23.6in
    Height (in): 86.6in
    Depth (in): 19.7in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 9403200082
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 164.242
    Net Weight (lb): 362.091
    Gross Weight (kg): 164.242
    Gross Weight (lb): 362.091
    UPC Code: 38025
    EAN: 4028177505810
    ECLASS 8.0: 27180101
    $2,431.81
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

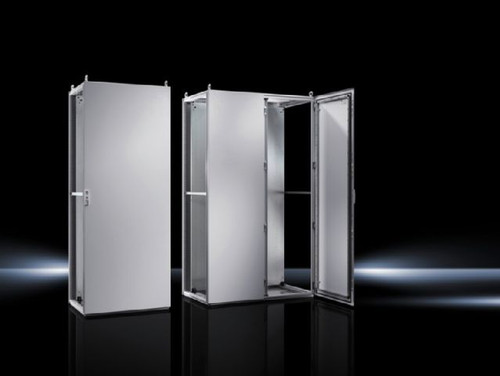

  • TS 8626500 | TS Bayed enclosure system, WHD: 600x2200x600 mm, Sheet steel, with mounting plate, single door at the frontImage_1
    Quick view

    RITTAL

    SKU: TS 8626500

    TS 8626500 | TS Bayed enclosure system, WHD: 600x2200x600 mm, Sheet steel, with mounting plate, single door at the front

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base plates: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and base plates: Zinc-plated
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting panel 2 TS punched rails, 18 x 38 mm 2 support strips fitted in the enclosu
    Mounting Plate Dims: 499 mm x 2,096 mm ( 19.6 ? x 82.5 ? )
    Number of Doors: 1
    Width (mm): 600mm
    Depth (mm): 600mm
    Width (in): 23.6in
    Height (in): 86.6in
    Depth (in): 23.6in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 9403200082
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 230.159
    Net Weight (lb): 507.413
    Gross Weight (kg): 241.182
    Gross Weight (lb): 531.715
    UPC Code: 38026
    EAN: 4028177250963
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $2,536.55
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8628500 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on Image_1
    Quick view

    RITTAL

    SKU: TS 8628500

    TS 8628500 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Gland plate Mounting plate 2 TS punched rails, 18 x 38 mm
    Number of Doors: 1
    Width (mm): 600mm
    Depth (mm): 800mm
    Width (in): 23.6in
    Height (in): 86.6in
    Depth (in): 31.5in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 9403200082
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 242.504
    Net Weight (lb): 534.629
    Gross Weight (kg): 250.882
    Gross Weight (lb): 553.099
    UPC Code: 38028
    EAN: 4028177693425
    ECLASS 8.0: 27180101
    $2,582.32
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8645500 | TS Bayed enclosure system, WHD: 600x1400x500 mm, Sheet steel, with mounting plate, single door at the frontImage_1
    Quick view

    RITTAL

    SKU: TS 8645500

    TS 8645500 | TS Bayed enclosure system, WHD: 600x1400x500 mm, Sheet steel, with mounting plate, single door at the front

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base plates: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and base plates: Zinc-plated
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting panel 2 TS punched rails, 18 x 38 mm
    Mounting Plate Dims: 499 mm x 1,296 mm ( 19.6 ? x 51 ? )
    Number of Doors: 1
    Width (mm): 600mm
    Depth (mm): 500mm
    Width (in): 23.6in
    Height (in): 55.1in
    Depth (in): 19.7in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 72.000
    Net Weight (lb): 158.733
    Gross Weight (kg): 76.000
    Gross Weight (lb): 167.551
    EAN: 4028177250970
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $2,053.48
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

Our Manufacturer Partners!

View All Manufacturers

Terms & Conditions | Contact Us | Our Brands
