Cast aluminum housing GA

(Showing 12 of 15)
Compare
Show 12 24 36 48 96 All
  • GA 9101210 | GA Cast aluminium enclosure, WHD: 58x64x34 mm, Cast aluminum, without mounting plate, with coverImage_1
    Quick view

    RITTAL

    SKU: GA 9101210

    GA 9101210 | GA Cast aluminium enclosure, WHD: 58x64x34 mm, Cast aluminum, without mounting plate, with cover

    Data Sheet: Data Sheet
    Material: Housing: Cast aluminum Cover: cast aluminum, all-round CR foam rubber round core seal
    Base Material: Cast aluminum
    Surface Finish: Textured paint
    Color: RAL 7001
    Supply Includes: Housing with cover Cover screws, captive Screws for attaching support rails Screw for connection of the PE conductor
    Width (mm): 58mm
    Height (mm): 64mm
    Depth (mm): 36mm
    Width (in): 2.28in
    Height (in): 2.52in
    Depth (in): 1.42in
    IP Rating: IP 66
    IK Code: IK08
    NEMA Rating: NEMA 4
    Customs Tariff No: 84879090
    Packaging Unit: 5 pc(s).
    Net Weight (kg): 0.825
    Net Weight (lb): 1.819
    Gross Weight (kg): 0.875
    Gross Weight (lb): 1.929
    EAN: 4028177145337
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $256.12
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • GA 9102210 | GA Cast aluminium enclosure, WHD: 98x64x35 mm, Cast aluminum, without mounting plate, with coverImage_1
    Quick view

    RITTAL

    SKU: GA 9102210

    GA 9102210 | GA Cast aluminium enclosure, WHD: 98x64x35 mm, Cast aluminum, without mounting plate, with cover

    Data Sheet: Data Sheet
    Material: Housing: Cast aluminum Cover: cast aluminum, all-round CR foam rubber round core seal
    Base Material: Cast aluminum
    Surface Finish: Textured paint
    Color: RAL 7001
    Supply Includes: Housing with cover Cover screws, captive Screws for attaching support rails Screw for connection of the PE conductor
    Width (mm): 98mm
    Height (mm): 64mm
    Depth (mm): 36mm
    Width (in): 3.86in
    Height (in): 2.52in
    Depth (in): 1.42in
    IP Rating: IP 66
    IK Code: IK08
    NEMA Rating: NEMA 4
    Customs Tariff No: 84879090
    Packaging Unit: 3 pc(s).
    Net Weight (kg): 0.630
    Net Weight (lb): 1.389
    Gross Weight (kg): 0.662
    Gross Weight (lb): 1.459
    EAN: 4028177145344
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $178.87
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • GA 9104210 | GA Cast aluminium enclosure, WHD: 75x80x57 mm, Cast aluminum, without mounting plate, with coverImage_1
    Quick view

    RITTAL

    SKU: GA 9104210

    GA 9104210 | GA Cast aluminium enclosure, WHD: 75x80x57 mm, Cast aluminum, without mounting plate, with cover

    Data Sheet: Data Sheet
    Material: Housing: Cast aluminum Cover: cast aluminum, all-round CR foam rubber round core seal
    Base Material: Cast aluminum
    Surface Finish: Textured paint
    Color: RAL 7001
    Supply Includes: Housing with cover Cover screws, captive Screws for attaching support rails Screw for connection of the PE conductor
    Width (mm): 75mm
    Height (mm): 80mm
    Depth (mm): 58mm
    Width (in): 2.95in
    Height (in): 3.15in
    Depth (in): 2.28in
    IP Rating: IP 66
    IK Code: IK08
    NEMA Rating: NEMA 4
    Customs Tariff No: 84879090
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 0.300
    Net Weight (lb): 0.661
    Gross Weight (kg): 0.330
    Gross Weight (lb): 0.728
    EAN: 4028177145368
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $79.30
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • GA 9105210 | GA Cast aluminium enclosure, WHD: 125x80x57 mm, Cast aluminum, without mounting plate, with coverImage_1
    Quick view

    RITTAL

    SKU: GA 9105210

    GA 9105210 | GA Cast aluminium enclosure, WHD: 125x80x57 mm, Cast aluminum, without mounting plate, with cover

    Data Sheet: Data Sheet
    Material: Housing: Cast aluminum Cover: cast aluminum, all-round CR foam rubber round core seal
    Base Material: Cast aluminum
    Surface Finish: Textured paint
    Color: RAL 7001
    Supply Includes: Housing with cover Cover screws, captive Screws for attaching support rails Screw for connection of the PE conductor
    Width (mm): 125mm
    Height (mm): 80mm
    Depth (mm): 58mm
    Width (in): 4.92in
    Height (in): 3.15in
    Depth (in): 2.28in
    IP Rating: IP 66
    IK Code: IK08
    NEMA Rating: NEMA 4
    Customs Tariff No: 84879090
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 0.430
    Net Weight (lb): 0.948
    Gross Weight (kg): 0.470
    Gross Weight (lb): 1.036
    EAN: 4028177145375
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $104.19
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

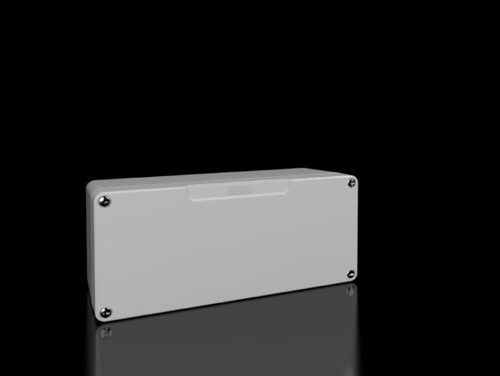

  • GA 9106210 | GA Cast aluminium enclosure, WHD: 175x80x57 mm, Cast aluminum, without mounting plate, with coverImage_1
    Quick view

    RITTAL

    SKU: GA 9106210

    GA 9106210 | GA Cast aluminium enclosure, WHD: 175x80x57 mm, Cast aluminum, without mounting plate, with cover

    Data Sheet: Data Sheet
    Material: Housing: Cast aluminum Cover: cast aluminum, all-round CR foam rubber round core seal
    Base Material: Cast aluminum
    Surface Finish: Textured paint
    Color: RAL 7001
    Supply Includes: Housing with cover Cover screws, captive Screws for attaching support rails Screw for connection of the PE conductor
    Width (mm): 175mm
    Height (mm): 80mm
    Depth (mm): 58mm
    Width (in): 6.89in
    Height (in): 3.15in
    Depth (in): 2.28in
    IP Rating: IP 66
    IK Code: IK08
    NEMA Rating: NEMA 4
    Customs Tariff No: 84879090
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 0.500
    Net Weight (lb): 1.102
    Gross Weight (kg): 0.584
    Gross Weight (lb): 1.287
    EAN: 4028177145382
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $122.27
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • GA 9107210 | GA Cast aluminium enclosure, WHD: 250x80x57 mm, Cast aluminum, without mounting plate, with coverImage_1
    Quick view

    RITTAL

    SKU: GA 9107210

    GA 9107210 | GA Cast aluminium enclosure, WHD: 250x80x57 mm, Cast aluminum, without mounting plate, with cover

    Data Sheet: Data Sheet
    Material: Housing: Cast aluminum Cover: cast aluminum, all-round CR foam rubber round core seal
    Base Material: Cast aluminum
    Surface Finish: Textured paint
    Color: RAL 7001
    Supply Includes: Housing with cover Cover screws, captive Screws for attaching support rails Screw for connection of the PE conductor
    Width (mm): 250mm
    Height (mm): 80mm
    Depth (mm): 58mm
    Width (in): 9.84in
    Height (in): 3.15in
    Depth (in): 2.28in
    IP Rating: IP 66
    IK Code: IK08
    NEMA Rating: NEMA 4
    Customs Tariff No: 84879090
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 0.700
    Net Weight (lb): 1.543
    Gross Weight (kg): 0.729
    Gross Weight (lb): 1.607
    EAN: 4028177145399
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $171.10
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • GA 9108210 | GA Cast aluminium enclosure, WHD: 122x120x80 mm, Cast aluminum, without mounting plate, with coverImage_1
    Quick view

    RITTAL

    SKU: GA 9108210

    GA 9108210 | GA Cast aluminium enclosure, WHD: 122x120x80 mm, Cast aluminum, without mounting plate, with cover

    Data Sheet: Data Sheet
    Material: Housing: Cast aluminum Cover: cast aluminum, all-round CR foam rubber round core seal
    Base Material: Cast aluminum
    Surface Finish: Textured paint
    Color: RAL 7001
    Supply Includes: Housing with cover Cover screws, captive Screws for attaching support rails Screw for connection of the PE conductor
    Width (mm): 122mm
    Height (mm): 120mm
    Depth (mm): 82mm
    Width (in): 4.8in
    Height (in): 4.72in
    Depth (in): 3.23in
    IP Rating: IP 66
    IK Code: IK08
    NEMA Rating: NEMA 4
    Customs Tariff No: 84879090
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 1.050
    Net Weight (lb): 2.315
    Gross Weight (kg): 1.100
    Gross Weight (lb): 2.425
    EAN: 4028177145405
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $182.21
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • GA 9110210 | GA Cast aluminium enclosure, WHD: 220x120x91 mm, Cast aluminum, without mounting plate, with coverImage_1
    Quick view

    RITTAL

    SKU: GA 9110210

    GA 9110210 | GA Cast aluminium enclosure, WHD: 220x120x91 mm, Cast aluminum, without mounting plate, with cover

    Data Sheet: Data Sheet
    Material: Housing: Cast aluminum Cover: cast aluminum, all-round CR foam rubber round core seal
    Base Material: Cast aluminum
    Surface Finish: Textured paint
    Color: RAL 7001
    Supply Includes: Housing with cover Cover screws, captive Screws for attaching support rails Screw for connection of the PE conductor
    Width (mm): 220mm
    Height (mm): 120mm
    Depth (mm): 93mm
    Width (in): 8.66in
    Height (in): 4.72in
    Depth (in): 3.66in
    IP Rating: IP 66
    IK Code: IK08
    NEMA Rating: NEMA 4
    Customs Tariff No: 84879090
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 1.652
    Net Weight (lb): 3.642
    Gross Weight (kg): 1.752
    Gross Weight (lb): 3.862
    EAN: 4028177145412
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $227.09
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • GA 9111210 | GA Cast aluminium enclosure, WHD: 360x120x82 mm, Cast aluminum, without mounting plate, with coverImage_1
    Quick view

    RITTAL

    SKU: GA 9111210

    GA 9111210 | GA Cast aluminium enclosure, WHD: 360x120x82 mm, Cast aluminum, without mounting plate, with cover

    Data Sheet: Data Sheet
    Material: Housing: Cast aluminum Cover: cast aluminum, all-round CR foam rubber round core seal
    Base Material: Cast aluminum
    Surface Finish: Textured paint
    Color: RAL 7001
    Supply Includes: Housing with cover Cover screws, captive Screws for attaching support rails Screw for connection of the PE conductor
    Width (mm): 360mm
    Height (mm): 120mm
    Depth (mm): 84mm
    Width (in): 14.2in
    Height (in): 4.72in
    Depth (in): 3.31in
    IP Rating: IP 66
    IK Code: IK08
    NEMA Rating: NEMA 4
    Customs Tariff No: 84879090
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 2.200
    Net Weight (lb): 4.850
    Gross Weight (kg): 2.360
    Gross Weight (lb): 5.203
    EAN: 4028177145429
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $316.41
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • GA 9112210 | GA Cast aluminium enclosure, WHD: 160x160x91 mm, Cast aluminum, without mounting plate, with coverImage_1
    Quick view

    RITTAL

    SKU: GA 9112210

    GA 9112210 | GA Cast aluminium enclosure, WHD: 160x160x91 mm, Cast aluminum, without mounting plate, with cover

    Data Sheet: Data Sheet
    Material: Housing: Cast aluminum Cover: cast aluminum, all-round CR foam rubber round core seal
    Base Material: Cast aluminum
    Surface Finish: Textured paint
    Color: RAL 7001
    Supply Includes: Housing with cover Cover screws, captive Screws for attaching support rails Screw for connection of the PE conductor
    Width (mm): 160mm
    Height (mm): 160mm
    Depth (mm): 93mm
    Width (in): 6.3in
    Height (in): 6.3in
    Depth (in): 3.66in
    IP Rating: IP 66
    IK Code: IK08
    NEMA Rating: NEMA 4
    Customs Tariff No: 84879090
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 1.690
    Net Weight (lb): 3.726
    Gross Weight (kg): 1.790
    Gross Weight (lb): 3.946
    EAN: 4028177145436
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $242.38
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

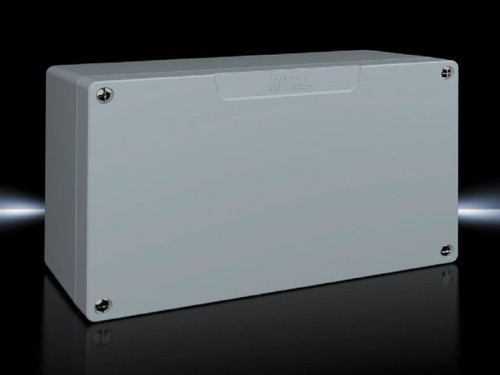

  • GA 9113210 | GA Cast aluminium enclosure, WHD: 260x160x91 mm, Cast aluminum, without mounting plate, with coverImage_1
    Quick view

    RITTAL

    SKU: GA 9113210

    GA 9113210 | GA Cast aluminium enclosure, WHD: 260x160x91 mm, Cast aluminum, without mounting plate, with cover

    Data Sheet: Data Sheet
    Material: Housing: Cast aluminum Cover: cast aluminum, all-round CR foam rubber round core seal
    Base Material: Cast aluminum
    Surface Finish: Textured paint
    Color: RAL 7001
    Supply Includes: Housing with cover Cover screws, captive Screws for attaching support rails Screw for connection of the PE conductor
    Width (mm): 260mm
    Height (mm): 160mm
    Depth (mm): 93mm
    Width (in): 10.2in
    Height (in): 6.3in
    Depth (in): 3.66in
    IP Rating: IP 66
    IK Code: IK08
    NEMA Rating: NEMA 4
    Customs Tariff No: 84879090
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 2.200
    Net Weight (lb): 4.850
    Gross Weight (kg): 2.340
    Gross Weight (lb): 5.159
    EAN: 4028177145443
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $295.87
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • GA 9114210 | GA Cast aluminium enclosure, WHD: 360x160x91 mm, Cast aluminum, without mounting plate, with coverImage_1
    Quick view

    RITTAL

    SKU: GA 9114210

    GA 9114210 | GA Cast aluminium enclosure, WHD: 360x160x91 mm, Cast aluminum, without mounting plate, with cover

    Data Sheet: Data Sheet
    Material: Housing: Cast aluminum Cover: cast aluminum, all-round CR foam rubber round core seal
    Base Material: Cast aluminum
    Surface Finish: Textured paint
    Color: RAL 7001
    Supply Includes: Housing with cover Cover screws, captive Screws for attaching support rails Screw for connection of the PE conductor
    Width (mm): 360mm
    Height (mm): 160mm
    Depth (mm): 93mm
    Width (in): 14.2in
    Height (in): 6.3in
    Depth (in): 3.66in
    IP Rating: IP 66
    IK Code: IK08
    NEMA Rating: NEMA 4
    Customs Tariff No: 84879090
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 3.040
    Net Weight (lb): 6.702
    Gross Weight (kg): 3.140
    Gross Weight (lb): 6.923
    EAN: 4028177145450
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $367.99
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

OUR MANUFACTURERS!

ABB BALDOR

ABB DRIVES

ABB ELECTRIFICATION

ABB ROBOTICS

Terms & Conditions | Contact Us | Our Brands
