KX terminal box, carbon steel with flange

(Showing 10 of 10)
Compare
  • KX 1530000 | KX Terminal box, WHD: 300x150x120 mm, sheet steel, without mounting plate, with cover, with gland plateImage_1
    Quick view

    RITTAL

    SKU: KX 1530000

    KX 1530000 | KX Terminal box, WHD: 300x150x120 mm, sheet steel, without mounting plate, with cover, with gland plate

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Cover: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Housing with cover Mini-fasteners Carbon steel flange plates with seals and assembly components
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Width (mm): 300mm
    Height (mm): 150mm
    Depth (mm): 120mm
    Width (in): 11.8in
    Height (in): 5.91in
    Depth (in): 4.72in
    IP Rating: IP 55
    IK Code: IK08
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 2.380
    Net Weight (lb): 5.247
    Gross Weight (kg): 2.580
    Gross Weight (lb): 5.688
    EAN: 4028177816367
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $165.77
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • KX 1531000 | KX Terminal box, WHD: 300x200x120 mm, sheet steel, without mounting plate, with cover, with gland plateImage_1
    Quick view

    RITTAL

    SKU: KX 1531000

    KX 1531000 | KX Terminal box, WHD: 300x200x120 mm, sheet steel, without mounting plate, with cover, with gland plate

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Cover: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Housing with cover Mini-fasteners Carbon steel flange plates with seals and assembly components
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Width (mm): 300mm
    Height (mm): 200mm
    Depth (mm): 120mm
    Width (in): 11.8in
    Height (in): 7.87in
    Depth (in): 4.72in
    IP Rating: IP 55
    IK Code: IK08
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 3.100
    Net Weight (lb): 6.834
    Gross Weight (kg): 3.140
    Gross Weight (lb): 6.923
    EAN: 4028177816374
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $175.61
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • KX 1532000 | KX Terminal box, WHD: 400x200x120 mm, sheet steel, without mounting plate, with cover, with gland plateImage_1
    Quick view

    RITTAL

    SKU: KX 1532000

    KX 1532000 | KX Terminal box, WHD: 400x200x120 mm, sheet steel, without mounting plate, with cover, with gland plate

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Cover: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Housing with cover Mini-fasteners Carbon steel flange plates with seals and assembly components
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Width (mm): 400mm
    Height (mm): 200mm
    Depth (mm): 120mm
    Width (in): 15.7in
    Height (in): 7.87in
    Depth (in): 4.72in
    IP Rating: IP 55
    IK Code: IK08
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 3.723
    Net Weight (lb): 8.208
    Gross Weight (kg): 3.823
    Gross Weight (lb): 8.428
    EAN: 4028177816381
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $201.75
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • KX 1533000 | KX Terminal box, WHD: 500x200x120 mm, sheet steel, without mounting plate, with cover, with gland plateImage_1
    Quick view

    RITTAL

    SKU: KX 1533000

    KX 1533000 | KX Terminal box, WHD: 500x200x120 mm, sheet steel, without mounting plate, with cover, with gland plate

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Cover: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Housing with cover Mini-fasteners Carbon steel flange plates with seals and assembly components
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Width (mm): 500mm
    Height (mm): 200mm
    Depth (mm): 120mm
    Width (in): 19.7in
    Height (in): 7.87in
    Depth (in): 4.72in
    IP Rating: IP 55
    IK Code: IK08
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 4.646
    Net Weight (lb): 10.243
    Gross Weight (kg): 4.891
    Gross Weight (lb): 10.783
    EAN: 4028177816398
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $234.10
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • KX 1536000 | KX Terminal box, WHD: 400x300x120 mm, sheet steel, without mounting plate, with cover, with gland plateImage_1
    Quick view

    RITTAL

    SKU: KX 1536000

    KX 1536000 | KX Terminal box, WHD: 400x300x120 mm, sheet steel, without mounting plate, with cover, with gland plate

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Cover: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Housing with cover Mini-fasteners Carbon steel flange plates with seals and assembly components
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Width (mm): 400mm
    Height (mm): 300mm
    Depth (mm): 120mm
    Width (in): 15.7in
    Height (in): 11.8in
    Depth (in): 4.72in
    IP Rating: IP 55
    IK Code: IK08
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 4.950
    Net Weight (lb): 10.913
    Gross Weight (kg): 5.160
    Gross Weight (lb): 11.376
    EAN: 4028177816411
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $235.63
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • KX 1537000 | KX Terminal box, WHD: 500x300x120 mm, sheet steel, without mounting plate, with cover, with gland plateImage_1
    Quick view

    RITTAL

    SKU: KX 1537000

    KX 1537000 | KX Terminal box, WHD: 500x300x120 mm, sheet steel, without mounting plate, with cover, with gland plate

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Cover: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Housing with cover Mini-fasteners Carbon steel flange plates with seals and assembly components
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Width (mm): 500mm
    Height (mm): 300mm
    Depth (mm): 120mm
    Width (in): 19.7in
    Height (in): 11.8in
    Depth (in): 4.72in
    IP Rating: IP 55
    IK Code: IK08
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 6.150
    Net Weight (lb): 13.558
    Gross Weight (kg): 6.440
    Gross Weight (lb): 14.198
    EAN: 4028177816428
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $269.98
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

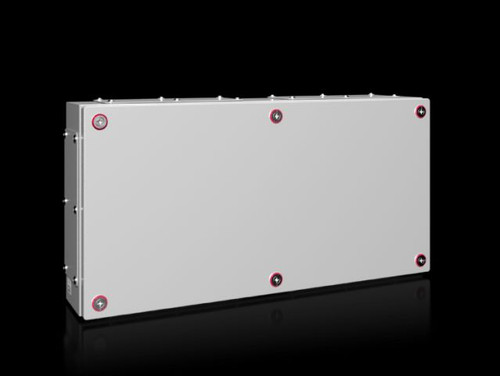

  • KX 1538000 | KX Terminal box, WHD: 600x300x120 mm, sheet steel, without mounting plate, with cover, with gland plateImage_1
    Quick view

    RITTAL

    SKU: KX 1538000

    KX 1538000 | KX Terminal box, WHD: 600x300x120 mm, sheet steel, without mounting plate, with cover, with gland plate

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Cover: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Housing with cover Mini-fasteners Carbon steel flange plates with seals and assembly components
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Width (mm): 600mm
    Height (mm): 300mm
    Depth (mm): 120mm
    Width (in): 23.6in
    Height (in): 11.8in
    Depth (in): 4.72in
    IP Rating: IP 55
    IK Code: IK08
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 7.300
    Net Weight (lb): 16.094
    Gross Weight (kg): 7.340
    Gross Weight (lb): 16.182
    EAN: 4028177816435
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $315.34
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • KX 1539000 | KX Terminal box, WHD: 400x400x120 mm, sheet steel, without mounting plate, with cover, with gland plateImage_1
    Quick view

    RITTAL

    SKU: KX 1539000

    KX 1539000 | KX Terminal box, WHD: 400x400x120 mm, sheet steel, without mounting plate, with cover, with gland plate

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Cover: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Housing with cover Mini-fasteners Carbon steel flange plates with seals and assembly components
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Width (mm): 400mm
    Height (mm): 400mm
    Depth (mm): 120mm
    Width (in): 15.7in
    Height (in): 15.7in
    Depth (in): 4.72in
    IP Rating: IP 55
    IK Code: IK08
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 6.177
    Net Weight (lb): 13.618
    Gross Weight (kg): 6.280
    Gross Weight (lb): 13.845
    EAN: 4028177816442
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $282.87
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • KX 1540000 | KX Terminal box, WHD: 600x400x120 mm, sheet steel, without mounting plate, with cover, with gland plateImage_1
    Quick view

    RITTAL

    SKU: KX 1540000

    KX 1540000 | KX Terminal box, WHD: 600x400x120 mm, sheet steel, without mounting plate, with cover, with gland plate

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Cover: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Housing with cover Mini-fasteners Carbon steel flange plates with seals and assembly components
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Width (mm): 600mm
    Height (mm): 400mm
    Depth (mm): 120mm
    Width (in): 23.6in
    Height (in): 15.7in
    Depth (in): 4.72in
    IP Rating: IP 55
    IK Code: IK08
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 8.444
    Net Weight (lb): 18.616
    Gross Weight (kg): 8.700
    Gross Weight (lb): 19.180
    EAN: 4028177816459
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $344.65
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • KX 1541000 | KX Terminal box, WHD: 800x400x120 mm, sheet steel, without mounting plate, with cover, with gland plateImage_1
    Quick view

    RITTAL

    SKU: KX 1541000

    KX 1541000 | KX Terminal box, WHD: 800x400x120 mm, sheet steel, without mounting plate, with cover, with gland plate

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Cover: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Housing with cover Mini-fasteners Carbon steel flange plates with seals and assembly components
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Width (mm): 800mm
    Height (mm): 400mm
    Depth (mm): 120mm
    Width (in): 31.5in
    Height (in): 15.7in
    Depth (in): 4.72in
    IP Rating: IP 55
    IK Code: IK08
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 10.541
    Net Weight (lb): 23.239
    Gross Weight (kg): 11.650
    Gross Weight (lb): 25.684
    EAN: 4028177816466
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $407.95
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
