NEMA 3R Vented Outdoor Enclosure

(Showing 7 of 7)
Compare
  • 9980094 | The NEMA 3R Vented Outdoor Enclosure is a single door enclosure with a roof module and door hood. The configuration includes pre-drilled mounting holes and integrated cooling with fans and filters.Image_1
    Quick view

    RITTAL

    SKU: 9980094

    9980094 | The NEMA 3R Vented Outdoor Enclosure is a single door enclosure with a roof module and door hood. The configuration includes pre-drilled mounting holes and integrated cooling with fans and filters.

    Data Sheet: Data Sheet
    Material: Door: Carbon steel, all-round foamed-in PU seal Housing: Carbon steel Mounting plate: Carbon steel
    Surface Finish: Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated Seal: Blue, dyed (RAL 5010)
    Color: White
    Supply Includes: Housing with vented roof module Door with fitted seal and vented hood Mounting panel Top-mounted 115V fans Thermostat Washable Filter kits
    Mat Thick - Door: 2 mm (0.08 in)
    Mat Thick - Enclosure: 1.5 mm (0.06 in)
    Mat Thick - Mtg Plate: 2.5 mm (0.1 in)
    Mounting Plate Dims: 549 mm x 570 mm ( 21.6 ? x 22.4 ? )
    Lock Details: Lock version: Cam No. of locks: 2 Lock Insert: Screwdriver
    Width (mm): 609mm
    Height (mm): 709mm
    Depth (mm): 304mm
    Width (in): 24in
    Height (in): 27.9in
    Depth (in): 12in
    NEMA Rating: NEMA 3R | NEMA 1 | NEMA 12
    UL Type Rating: UL Type 3R | UL Type 1 | UL Type 12
    Customs Tariff No: 9403999040
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 82.169
    Net Weight (lb): 181.151
    Gross Weight (kg): 82.169
    Gross Weight (lb): 181.151
    UPC Code: 92345
    $0.00
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • 9980095 | The NEMA 3R Vented Outdoor Enclosure is a single door enclosure with a roof module and door hood. The configuration includes pre-drilled mounting holes and integrated cooling with fans and filters.Image_1
    Quick view

    RITTAL

    SKU: 9980095

    9980095 | The NEMA 3R Vented Outdoor Enclosure is a single door enclosure with a roof module and door hood. The configuration includes pre-drilled mounting holes and integrated cooling with fans and filters.

    Data Sheet: Data Sheet
    Material: Door: Carbon steel, all-round foamed-in PU seal Housing: Carbon steel Mounting plate: Carbon steel
    Surface Finish: Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated Seal: Blue, dyed (RAL 5010)
    Color: White
    Supply Includes: Housing with vented roof module Door with fitted seal and vented hood Mounting panel Top-mounted 115V fans Thermostat Washable Filter kits
    Mat Thick - Door: 2 mm (0.08 in)
    Mat Thick - Enclosure: 1.5 mm (0.06 in)
    Mat Thick - Mtg Plate: 2.5 mm (0.1 in)
    Mounting Plate Dims: 549 mm x 730 mm ( 21.6 ? x 28.7 ? )
    Lock Details: Lock version: Cam No. of locks: 2 Lock Insert: Screwdriver
    Width (mm): 609mm
    Height (mm): 869mm
    Depth (mm): 304mm
    Width (in): 24in
    Height (in): 34.2in
    Depth (in): 12in
    NEMA Rating: NEMA 3R | NEMA 1 | NEMA 12
    UL Type Rating: UL Type 3R | UL Type 1 | UL Type 12
    Customs Tariff No: 9403999040
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 96.109
    Net Weight (lb): 211.884
    Gross Weight (kg): 96.109
    Gross Weight (lb): 211.884
    UPC Code: 92346
    $0.00
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • 9980097 | The NEMA 3R Vented Outdoor Enclosure is a single door enclosure with a roof module and door hood. The configuration includes pre-drilled mounting holes and integrated cooling with fans and filters.Image_1
    Quick view

    RITTAL

    SKU: 9980097

    9980097 | The NEMA 3R Vented Outdoor Enclosure is a single door enclosure with a roof module and door hood. The configuration includes pre-drilled mounting holes and integrated cooling with fans and filters.

    Data Sheet: Data Sheet
    Material: Door: Carbon steel, all-round foamed-in PU seal Housing: Carbon steel Mounting plate: Carbon steel
    Surface Finish: Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated Seal: Blue, dyed (RAL 5010)
    Color: White
    Supply Includes: Housing with vented roof module Door with fitted seal and vented hood Mounting panel Top-mounted 115V fans Thermostat Washable Filter kits
    Mat Thick - Door: 2 mm (0.08 in)
    Mat Thick - Enclosure: 2 mm (0.08 in)
    Mat Thick - Mtg Plate: 2.5 mm (0.1 in)
    Mounting Plate Dims: 540 mm x 1,020 mm ( 21.3 ? x 40.2 ? )
    Lock Details: Lock version: Cam No. of locks: 3 Lock Insert: Screwdriver
    Width (mm): 609mm
    Depth (mm): 354mm
    Width (in): 24in
    Height (in): 46.6in
    Depth (in): 13.9in
    NEMA Rating: NEMA 3R | NEMA 1 | NEMA 12
    UL Type Rating: UL Type 3R | UL Type 1 | UL Type 12
    Customs Tariff No: 9403999040
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 131.001
    Net Weight (lb): 288.807
    Gross Weight (kg): 131.001
    Gross Weight (lb): 288.807
    UPC Code: 92348
    $0.00
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • 9980098 | The NEMA 3R Vented Outdoor Enclosure is a single door enclosure with a roof module and door hood. The configuration includes pre-drilled mounting holes and integrated cooling with fans and filters.Image_1
    Quick view

    RITTAL

    SKU: 9980098

    9980098 | The NEMA 3R Vented Outdoor Enclosure is a single door enclosure with a roof module and door hood. The configuration includes pre-drilled mounting holes and integrated cooling with fans and filters.

    Data Sheet: Data Sheet
    Material: Door: Carbon steel, all-round foamed-in PU seal Housing: Carbon steel Mounting plate: Carbon steel
    Surface Finish: Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated Seal: Blue, dyed (RAL 5010)
    Color: White
    Supply Includes: Housing with vented roof module Door with fitted seal and vented hood Mounting panel Top-mounted 115V fans Thermostat Washable Filter kits
    Mat Thick - Door: 2 mm (0.08 in)
    Mat Thick - Enclosure: 2 mm (0.08 in)
    Mat Thick - Mtg Plate: 2.5 mm (0.1 in)
    Mounting Plate Dims: 840 mm x 1,155 mm ( 33.1 ? x 45.5 ? )
    Lock Details: Lock version: Cam No. of locks: 3 Lock Insert: Screwdriver
    Width (mm): 909mm
    Depth (mm): 404mm
    Width (in): 35.8in
    Height (in): 52.5in
    Depth (in): 15.9in
    NEMA Rating: NEMA 3R | NEMA 1 | NEMA 12
    UL Type Rating: UL Type 3R | UL Type 1 | UL Type 12
    Customs Tariff No: 9403999040
    Packaging Unit: 1 pc(s).
    UPC Code: 92349
    $0.00
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • 9980099 | The NEMA 3R Vented Outdoor Enclosure is a single door enclosure with a roof module and door hood. The configuration includes pre-drilled mounting holes and integrated cooling with fans and filters.Image_1
    Quick view

    RITTAL

    SKU: 9980099

    9980099 | The NEMA 3R Vented Outdoor Enclosure is a single door enclosure with a roof module and door hood. The configuration includes pre-drilled mounting holes and integrated cooling with fans and filters.

    Data Sheet: Data Sheet
    Material: Door: Carbon steel, all-round foamed-in PU seal Housing: Carbon steel Mounting plate: Carbon steel
    Surface Finish: Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated Seal: Blue, dyed (RAL 5010)
    Color: White
    Supply Includes: Housing with vented roof module Door with fitted seal and vented hood Mounting panel Top-mounted 115V fans Thermostat Washable Filter kits
    Mat Thick - Door: 2 mm (0.08 in)
    Mat Thick - Enclosure: 2 mm (0.08 in)
    Mat Thick - Mtg Plate: 2.5 mm (0.1 in)
    Mounting Plate Dims: 840 mm x 1,455 mm ( 33.1 ? x 57.3 ? )
    Lock Details: Lock version: Cam No. of locks: 3 Lock Insert: Screwdriver
    Width (mm): 909mm
    Depth (mm): 404mm
    Width (in): 35.8in
    Height (in): 64.3in
    Depth (in): 15.9in
    NEMA Rating: NEMA 3R | NEMA 1 | NEMA 12
    UL Type Rating: UL Type 3R | UL Type 1 | UL Type 12
    Customs Tariff No: 9403999040
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 268.340
    Net Weight (lb): 591.588
    Gross Weight (kg): 268.340
    Gross Weight (lb): 591.588
    UPC Code: 92350
    $0.00
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • 9980124 | The NEMA 3R Vented Outdoor Enclosure is a single door enclosure with a roof module and door hood. The configuration includes pre-drilled mounting holes and integrated cooling with fans and filters.Image_1
    Quick view

    RITTAL

    SKU: 9980124

    9980124 | The NEMA 3R Vented Outdoor Enclosure is a single door enclosure with a roof module and door hood. The configuration includes pre-drilled mounting holes and integrated cooling with fans and filters.

    Data Sheet: Data Sheet
    Material: Door: Carbon steel, all-round foamed-in PU seal Housing: Carbon steel Mounting plate: Carbon steel
    Surface Finish: Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated Seal: Blue, dyed (RAL 5010)
    Color: White
    Supply Includes: Housing with vented roof module Door with fitted seal and vented hood Mounting panel Top-mounted 115V fans Thermostat Washable Filter kits
    Mat Thick - Door: 2 mm (0.08 in)
    Mat Thick - Enclosure: 2 mm (0.08 in)
    Mat Thick - Mtg Plate: 2.5 mm (0.1 in)
    Mounting Plate Dims: 840 mm x 1,155 mm ( 33.1 ? x 45.5 ? )
    Lock Details: Lock version: Cam No. of locks: 3 Lock Insert: Screwdriver
    Width (mm): 909mm
    Depth (mm): 504mm
    Width (in): 35.8in
    Height (in): 52.5in
    Depth (in): 19.8in
    NEMA Rating: NEMA 3R | NEMA 1 | NEMA 12
    UL Type Rating: UL Type 3R | UL Type 1 | UL Type 12
    Customs Tariff No: 9403999040
    Packaging Unit: 1 pc(s).
    UPC Code: 94072
    $0.00
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

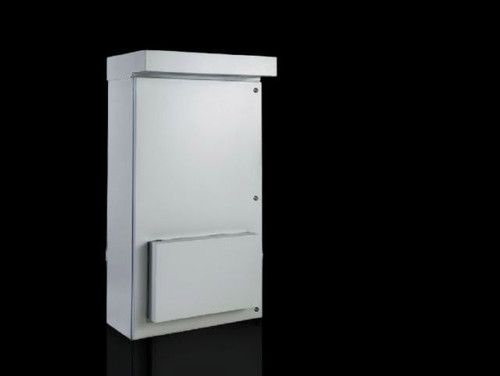

  • 9980125 | The NEMA 3R Vented Outdoor Enclosure is a single door enclosure with a roof module and door hood. The configuration includes pre-drilled mounting holes and integrated cooling with fans and filters.Image_1
    Quick view

    RITTAL

    SKU: 9980125

    9980125 | The NEMA 3R Vented Outdoor Enclosure is a single door enclosure with a roof module and door hood. The configuration includes pre-drilled mounting holes and integrated cooling with fans and filters.

    Data Sheet: Data Sheet
    Material: Door: Carbon steel, all-round foamed-in PU seal Housing: Carbon steel Mounting plate: Carbon steel
    Surface Finish: Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated Seal: Blue, dyed (RAL 5010)
    Color: White
    Supply Includes: Housing with vented roof module Door with fitted seal and vented hood Mounting panel Top-mounted 115V fans Thermostat Washable Filter kits
    Mat Thick - Door: 2 mm (0.08 in)
    Mat Thick - Enclosure: 2 mm (0.08 in)
    Mat Thick - Mtg Plate: 2.5 mm (0.1 in)
    Mounting Plate Dims: 840 mm x 1,455 mm ( 33.1 ? x 57.3 ? )
    Lock Details: Lock version: Cam No. of locks: 3 Lock Insert: Screwdriver
    Width (mm): 909mm
    Depth (mm): 504mm
    Width (in): 35.8in
    Height (in): 64.3in
    Depth (in): 19.8in
    NEMA Rating: NEMA 3R | NEMA 1 | NEMA 12
    UL Type Rating: UL Type 3R | UL Type 1 | UL Type 12
    Customs Tariff No: 9403999040
    Packaging Unit: 1 pc(s).
    UPC Code: 94073
    $0.00
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
