RITTAL
SKU: TP 2683600
TP 2683600 | TP one-piece console, WHD: 600x960x400/T2: 480 mm, stainless steel, 1.4301
Data Sheet: Data SheetMaterial: Housing: Stainless steel 1.4301 (AISI 304), 1.5 mm Door or double door and console lid: Stainless steel 1.4301 (AISI 304), 2.0 mm Mounting panel: Carbon steel, 3.0 mmBase Material: Stainless steel 1.4301 (AISI 304)Surface Finish: Housing, door, console lid and base plates: Brushed, grain 400 Mounting panel: Zinc-platedSupply Includes: Housing, solid back and sides Door or double door at front, with locking rod Console lid with lid stay and cam lock latched in the enclosure Locks with double-bit insert Base plates, divided Mounting panelMounting Plate Dims: 530 mm x 780 mm ( 20.9 ? x 30.7 ? )Number of Doors: 1Width (mm): 600mmHeight (mm): 960mmDepth (mm): 400mmWidth (in): 23.6inHeight (in): 37.8inDepth (in): 15.7inIP Rating: IP 55NEMA Rating: NEMA 12Customs Tariff No: 94032080Packaging Unit: 1 pc(s).Net Weight (kg): 47.850Net Weight (lb): 105.491Gross Weight (kg): 52.000Gross Weight (lb): 114.640EAN: 4028177031319ETIM 9: EC000784ETIM 8: EC000784ECLASS 8.0: 27180504$7,643.22Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: TP 2684600

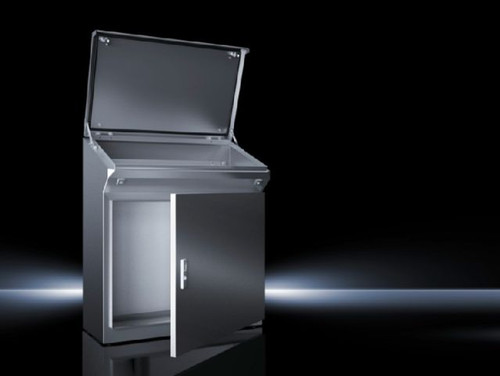

TP 2684600 | TP one-piece console, WHD: 800x960x400/D2: 480 mm, stainless steel, 1.4301
Data Sheet: Data SheetMaterial: Housing: Stainless steel 1.4301 (AISI 304), 1.5 mm Door or double door and console lid: Stainless steel 1.4301 (AISI 304), 2.0 mm Mounting panel: Carbon steel, 3.0 mmBase Material: Stainless steel 1.4301 (AISI 304)Surface Finish: Housing, door, console lid and base plates: Brushed, grain 400 Mounting panel: Zinc-platedSupply Includes: Housing, solid back and sides Door or double door at front, with locking rod Console lid with lid stay and cam lock latched in the enclosure Locks with double-bit insert Base plates, divided Mounting panelMounting Plate Dims: 730 mm x 780 mm ( 28.7 ? x 30.7 ? )Number of Doors: 1Width (mm): 800mmHeight (mm): 960mmDepth (mm): 400mmWidth (in): 31.5inHeight (in): 37.8inDepth (in): 15.7inIP Rating: IP 55NEMA Rating: NEMA 12Customs Tariff No: 94032080Packaging Unit: 1 pc(s).Net Weight (kg): 60.000Net Weight (lb): 132.277Gross Weight (kg): 65.200Gross Weight (lb): 143.741EAN: 4028177031357ETIM 9: EC000784ETIM 8: EC000784ECLASS 8.0: 27180504$8,131.92Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: TP 2685600
TP 2685600 | TP one-piece console, WHD: 1000x960x400/D2: 480 mm, stainless steel, 1.4301
Data Sheet: Data SheetMaterial: Housing: Stainless steel 1.4301 (AISI 304), 1.5 mm Door or double door and console lid: Stainless steel 1.4301 (AISI 304), 2.0 mm Mounting panel: Carbon steel, 3.0 mmBase Material: Stainless steel 1.4301 (AISI 304)Surface Finish: Housing, door, console lid and base plates: Brushed, grain 400 Mounting panel: Zinc-platedSupply Includes: Housing, solid back and sides Door or double door at front, with locking rod Console lid with lid stay and cam lock latched in the enclosure Locks with double-bit insert Base plates, divided Mounting panelMounting Plate Dims: 930 mm x 780 mm ( 36.6 ? x 30.7 ? )Number of Doors: 2Height (mm): 960mmDepth (mm): 400mmWidth (in): 39.4inHeight (in): 37.8inDepth (in): 15.7inIP Rating: IP 55NEMA Rating: NEMA 12Customs Tariff No: 94032080Packaging Unit: 1 pc(s).Net Weight (kg): 77.115Net Weight (lb): 170.009Gross Weight (kg): 79.500Gross Weight (lb): 175.267EAN: 4028177031395ETIM 9: EC000784ETIM 8: EC000784ECLASS 8.0: 27180504$8,503.48Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: TP 2686600

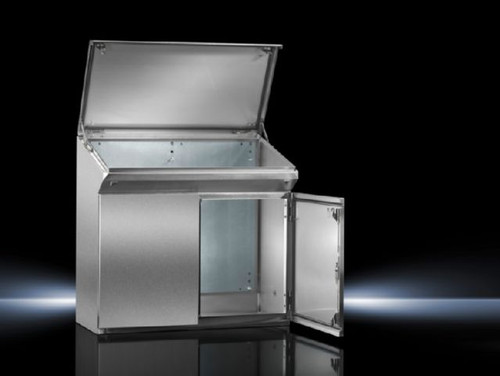

TP 2686600 | TP one-piece console, WHD: 1200x960x400/D2: 480 mm, stainless steel, 1.4301
Data Sheet: Data SheetMaterial: Housing: Stainless steel 1.4301 (AISI 304), 1.5 mm Door or double door and console lid: Stainless steel 1.4301 (AISI 304), 2.0 mm Mounting panel: Carbon steel, 3.0 mmBase Material: Stainless steel 1.4301 (AISI 304)Surface Finish: Housing, door, console lid and base plates: Brushed, grain 400 Mounting panel: Zinc-platedSupply Includes: Housing, solid back and sides Door or double door at front, with locking rod Console lid with lid stay and cam lock latched in the enclosure Locks with double-bit insert Base plates, divided Mounting panelMounting Plate Dims: 1,130 mm x 780 mm ( 44.5 ? x 30.7 ? )Number of Doors: 2Height (mm): 960mmDepth (mm): 400mmWidth (in): 47.2inHeight (in): 37.8inDepth (in): 15.7inIP Rating: IP 55NEMA Rating: NEMA 12Customs Tariff No: 94032080Packaging Unit: 1 pc(s).Net Weight (kg): 83.100Net Weight (lb): 183.204Gross Weight (kg): 90.300Gross Weight (lb): 199.077EAN: 4028177031432ETIM 9: EC000784ETIM 8: EC000784ECLASS 8.0: 27180504$10,747.67Please Call/Email for Stock Availability (864)-458-9988
