NH Fuse-Switch Disconnectors

(Showing 10 of 10)
Compare
  • SV 9343000 | SV NH fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, box terminalImage_1
    Quick view

    RITTAL

    SKU: SV 9343000

    SV 9343000 | SV NH fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, box terminal

    Data Sheet: Data Sheet
    Material: Polyamide Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-plated
    Color: Chassis: RAL 7035 Cover: RAL 7035/7001
    Width (mm): 106mm
    Height (mm): 194mm
    Width (in): 4.17in
    Height (in): 7.64in
    Voltage (V): 690 V, 3~
    Customs Tariff No: 85369095
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 0.840
    Net Weight (lb): 1.852
    Gross Weight (kg): 0.920
    Gross Weight (lb): 2.028
    EAN: 4028177540255
    ETIM 9: EC000249
    ECLASS 8.0: 27371401
    $254.55
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

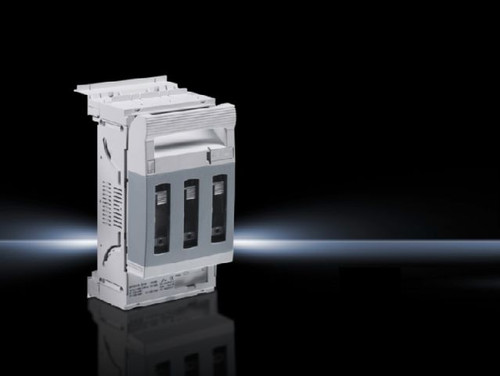

  • SV 9343010 | SV NH fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, screw M8Image_1
    Quick view

    RITTAL

    SKU: SV 9343010

    SV 9343010 | SV NH fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, screw M8

    Data Sheet: Data Sheet
    Material: Polyamide Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-plated
    Color: Chassis: RAL 7035 Cover: RAL 7035/7001
    Width (mm): 106mm
    Height (mm): 194mm
    Width (in): 4.17in
    Height (in): 7.64in
    Voltage (V): 690 V, 3~
    Customs Tariff No: 85369095
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 0.840
    Net Weight (lb): 1.852
    Gross Weight (kg): 0.940
    Gross Weight (lb): 2.072
    EAN: 4028177540262
    ETIM 9: EC000249
    ECLASS 8.0: 27371401
    $250.78
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • SV 9343110 | SV NH fuse-switch disconnector, size 1, 250 A, 690 V , 3-pole, screw M10Image_1
    Quick view

    RITTAL

    SKU: SV 9343110

    SV 9343110 | SV NH fuse-switch disconnector, size 1, 250 A, 690 V , 3-pole, screw M10

    Data Sheet: Data Sheet
    Material: Polyamide Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-plated
    Color: Chassis: RAL 7035 Cover: RAL 7035/7001
    Width (mm): 184mm
    Height (mm): 298mm
    Width (in): 7.24in
    Height (in): 11.7in
    Voltage (V): 690 V, 3~
    Customs Tariff No: 85369095
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 2.258
    Net Weight (lb): 4.978
    Gross Weight (kg): 2.320
    Gross Weight (lb): 5.115
    EAN: 4028177540330
    ETIM 9: EC000249
    ECLASS 8.0: 27371401
    $789.95
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • SV 9343210 | SV NH fuse-switch disconnector, size 2, 400 A, 690 V, 3-pole, screw M10Image_1
    Quick view

    RITTAL

    SKU: SV 9343210

    SV 9343210 | SV NH fuse-switch disconnector, size 2, 400 A, 690 V, 3-pole, screw M10

    Data Sheet: Data Sheet
    Material: Polyamide Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-plated
    Color: Chassis: RAL 7035 Cover: RAL 7035/7001
    Width (mm): 210mm
    Height (mm): 298mm
    Width (in): 8.27in
    Height (in): 11.7in
    Voltage (V): 690 V, 3~
    Customs Tariff No: 85369095
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 3.358
    Net Weight (lb): 7.403
    Gross Weight (kg): 3.360
    Gross Weight (lb): 7.408
    EAN: 4028177540392
    ETIM 9: EC000249
    ECLASS 8.0: 27371401
    $1,065.42
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • SV 9343300 | SV NH fuse-switch disconnector, size 3, 630 A, 690 V, 3-pole, box terminalImage_1
    Quick view

    RITTAL

    SKU: SV 9343300

    SV 9343300 | SV NH fuse-switch disconnector, size 3, 630 A, 690 V, 3-pole, box terminal

    Data Sheet: Data Sheet
    Material: Polyamide Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-plated
    Color: Chassis: RAL 7035 Cover: RAL 7035/7001
    Width (mm): 250mm
    Height (mm): 298mm
    Width (in): 9.84in
    Height (in): 11.7in
    Voltage (V): 690 V, 3~
    Customs Tariff No: 85369095
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 4.480
    Net Weight (lb): 9.877
    Gross Weight (kg): 4.500
    Gross Weight (lb): 9.921
    EAN: 4028177540446
    ETIM 9: EC000249
    ECLASS 8.0: 27371401
    $1,232.61
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • SV 9343310 | SV NH fuse-switch disconnector, size 3, 630 A, 690 V, 3-pole, screw M10Image_1
    Quick view

    RITTAL

    SKU: SV 9343310

    SV 9343310 | SV NH fuse-switch disconnector, size 3, 630 A, 690 V, 3-pole, screw M10

    Data Sheet: Data Sheet
    Material: Polyamide Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-plated
    Color: Chassis: RAL 7035 Cover: RAL 7035/7001
    Width (mm): 250mm
    Height (mm): 298mm
    Width (in): 9.84in
    Height (in): 11.7in
    Voltage (V): 690 V, 3~
    Customs Tariff No: 85369095
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 4.000
    Net Weight (lb): 8.818
    Gross Weight (kg): 4.220
    Gross Weight (lb): 9.303
    EAN: 4028177540453
    ETIM 9: EC000249
    ECLASS 8.0: 27371401
    $1,264.69
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • SV 9344010 | SV NH fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, screw M8, for mounting plate assemblyImage_1
    Quick view

    RITTAL

    SKU: SV 9344010

    SV 9344010 | SV NH fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, screw M8, for mounting plate assembly

    Data Sheet: Data Sheet
    Material: Polyamide Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-plated
    Color: Chassis: RAL 7035 Cover: RAL 7035/7001
    Width (mm): 106mm
    Height (mm): 194mm
    Width (in): 4.17in
    Height (in): 7.64in
    Voltage (V): 690 V, 3~
    Customs Tariff No: 85369095
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 0.740
    Net Weight (lb): 1.631
    Gross Weight (kg): 0.760
    Gross Weight (lb): 1.676
    EAN: 4028177540514
    ETIM 9: EC000249
    ECLASS 8.0: 27371401
    $174.21
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

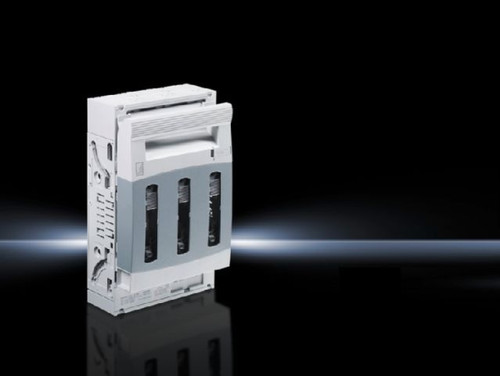

  • SV 9344110 | SV NH fuse-switch disconnector, size 1, 250 A, 690 V, 3-pole, screw M10, for mounting plate assemblyImage_1
    Quick view

    RITTAL

    SKU: SV 9344110

    SV 9344110 | SV NH fuse-switch disconnector, size 1, 250 A, 690 V, 3-pole, screw M10, for mounting plate assembly

    Data Sheet: Data Sheet
    Material: Polyamide Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-plated
    Color: Chassis: RAL 7035 Cover: RAL 7035/7001
    Width (mm): 184mm
    Height (mm): 298mm
    Width (in): 7.24in
    Height (in): 11.7in
    Voltage (V): 690 V, 3~
    Customs Tariff No: 85365080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 2.138
    Net Weight (lb): 4.713
    Gross Weight (kg): 2.140
    Gross Weight (lb): 4.718
    EAN: 4028177540606
    ETIM 9: EC000249
    ECLASS 8.0: 27371401
    $678.03
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

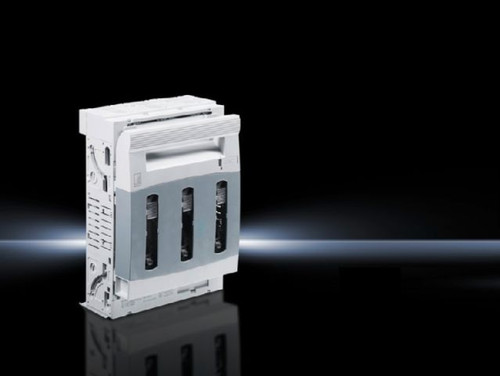

  • SV 9344210 | SV NH fuse-switch disconnector, size 2, 400 A, 690 V, 3-pole, screw M10, for mounting plate assemblyImage_1
    Quick view

    RITTAL

    SKU: SV 9344210

    SV 9344210 | SV NH fuse-switch disconnector, size 2, 400 A, 690 V, 3-pole, screw M10, for mounting plate assembly

    Data Sheet: Data Sheet
    Material: Polyamide Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-plated
    Color: Chassis: RAL 7035 Cover: RAL 7035/7001
    Width (mm): 210mm
    Height (mm): 298mm
    Width (in): 8.27in
    Height (in): 11.7in
    Voltage (V): 690 V, 3~
    Customs Tariff No: 85369095
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 3.080
    Net Weight (lb): 6.790
    Gross Weight (kg): 3.098
    Gross Weight (lb): 6.830
    EAN: 4028177540675
    ETIM 9: EC000249
    ECLASS 8.0: 27371401
    $841.33
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • SV 9344310 | SV NH fuse-switch disconnector, size 3, 630 A, 690 V, 3-pole, screw M10, for mounting plate assemblyImage_1
    Quick view

    RITTAL

    SKU: SV 9344310

    SV 9344310 | SV NH fuse-switch disconnector, size 3, 630 A, 690 V, 3-pole, screw M10, for mounting plate assembly

    Data Sheet: Data Sheet
    Material: Polyamide Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-plated
    Color: Chassis: RAL 7035 Cover: RAL 7035/7001
    Width (mm): 250mm
    Height (mm): 298mm
    Width (in): 9.84in
    Height (in): 11.7in
    Voltage (V): 690 V, 3~
    Customs Tariff No: 85369095
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 3.600
    Net Weight (lb): 7.937
    Gross Weight (kg): 3.800
    Gross Weight (lb): 8.378
    EAN: 4028177540736
    ETIM 9: EC000249
    ECLASS 8.0: 27371401
    $951.37
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
