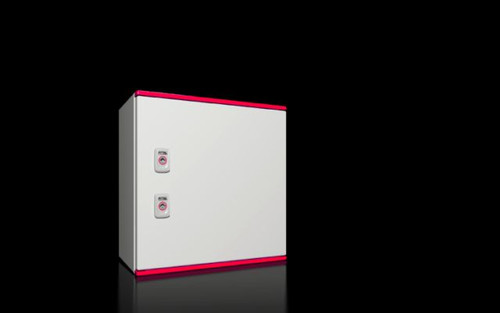

  • AX 1444000 | AX Fiberglass-Reinforced Polyester Enclosures without viewing window, AX plastic housings are ideal for applications in demanding areas. Numerous mounting domes in the enclosure provide individual interior installation options in a 25 mm

AX 1444000 | AX Fiberglass-Reinforced Polyester Enclosures without viewing window, AX plastic housings are ideal for applications in demanding areas. Numerous mounting domes in the enclosure provide individual interior installation options in a 25 mm

RITTAL

No reviews yet Write a Review
SKU:
AX 1444000
$535.02
AX 1444000 | AX Fiberglass-Reinforced Polyester Enclosures without viewing window, AX plastic housings are ideal for applications in demanding areas. Numerous mounting domes in the enclosure provide individual interior installation options in a 25 mmImage_1
Condition:
New
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
Shipping:
Calculated at Checkout
AX Fiberglass-Reinforced Polyester Enclosures without viewing window, AX plastic housings are ideal for applications in demanding areas. Numerous mounting domes in the enclosure provide individual interior installation options in a 25 mm pitch patter View full description
$535.02

Extra Information

Brand:
RITTAL
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
Data Sheet:
Material:
Housing and door: Fiberglass-reinforced unsaturated polyester Door: All-round foamed-in PU seal Mounting plate: Carbon steel Fire protection corresponding to UL 94-V0 Halogen-free
Base Material:
Plastic
Surface Finish:
Housing and door: Dyed plastic with no after-treatment Mounting panel: Zinc-plated
Color:
Similar to RAL 7035
Supply Includes:
Housing with hinged door, of all-round solid construction, 3 mm double-bit lock Door hinged on the right, may be swapped to the left Mounting panel Twin seal on the top and bottom edges of the door as integral rain protection strip
Mat Thick - Mtg Plate:
2.5 mm (0.1 in)
Mounting Plate Dims:
305 mm x 325 mm ( 12 ? x 12.8 ? )
Width (mm):
400mm
Height (mm):
400mm
Depth (mm):
200mm
Width (in):
15.7in
Height (in):
15.7in
Depth (in):
7.87in
IP Rating:
IP 66
IK Code:
IK09
NEMA Rating:
NEMA 1 | NEMA 3R | NEMA 3RX | NEMA 4 | NEMA 4X | NEMA 12
UL Type Rating:
Type 1 | Type 3R | Type 3RX | Type 4 | Type 4X | Type 12
Customs Tariff No:
94037000
Packaging Unit:
1 pc(s).
Net Weight (kg):
7.000
Net Weight (lb):
15.432
Gross Weight (kg):
8.500
Gross Weight (lb):
18.739
EAN:
4028177006478
ETIM 9:
EC000261
ETIM 8:
EC000261
ECLASS 8.0:
27180101
