Material:
Housing, roof, door(s), base plate: Aluminum, AlMg3, 2.0 mm Mounting plate(s): Aluminum, AlMg3, 3.0 mm Support rail: Stainless steel 1.4016 (AISI 430)
Base Material:
Aluminum
Surface Finish:
Powder-coated UV-resistant pure polyester
Color:
RAL 7035
Supply Includes:

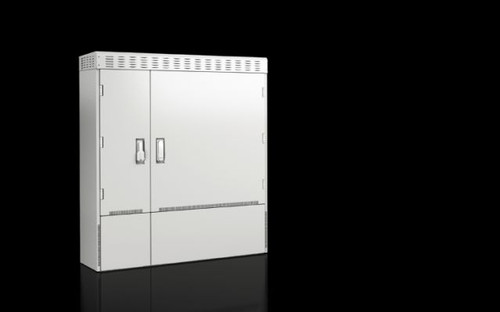

Double-walled outdoor housing, fully preconfigured Weather protection roof with ventilation, prepared for the installation of a Direct Air Cooling System (DAC) Door stay using mechanical system (approx. 155°) Swing lever handle and semi-cylinder, loc
Mounting Plate Dims:
610 mm x 941 mm 548 mm x 941 mm ( 24 ? x 37 ? 21.6 ? x 37 ? )
Number of Doors:
2
Lock Details:
Lock version: 3-point locking system with single and double locking cylinder No. of locks: 2 Lock Insert: BJ20027
Height (mm):
130mm
Depth (mm):
500mm
Width (in):
51.2in
Height (in):
5.12in
Depth (in):
19.7in
IP Rating:
IP 55
NEMA Rating:
NEMA 3R | NEMA 12
Customs Tariff No:
94032080
Packaging Unit:
1 pc(s).
Net Weight (kg):
115.000
Net Weight (lb):
253.531
Gross Weight (kg):
135.000
Gross Weight (lb):
297.624
EAN:
4028177980853
ETIM 9:
EC000261
