HD 4000285 | HD system enclosure, WHD: 1200x1800x500mm, stainless steel, with mounting plate, two-door

RITTAL

No reviews yet Write a Review
SKU:
HD 4000285
$10,316.40
HD 4000285 | HD system enclosure, WHD: 1200x1800x500mm, stainless steel, with mounting plate, two-doorImage_1
Condition:
New
Width:
47.20 (in)
Height:
70.90 (in)
Depth:
19.70 (in)
Shipping:
Calculated at Checkout
HD system enclosure, WHD: 1200x1800x500mm, stainless steel, with mounting plate, two-door View full description
$10,316.40
30 people looking at this.

Description

Rittal HD 4000285

HD system enclosure, WHD: 1200x1800x500mm, stainless steel, with mounting plate, two-door, Large enclosure HD, 1,099 mm x 1,696 mm ( 43.3 ? x 66.8 ? ), Housing and door: Stainless steel 1.4301 (AISI 304) HD lock inserts: Stainless steel 1.4404 (AISI 316L) Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600 Mounting plate: Carbon steel, Stainless steel 1.4301 (AISI 304), Housing and door: Brushed, grain 400, peak-to-valley height < 0.8 µm Mounting panel: Zinc-plated Seal: Blue, dyed (RAL 5010), Enclosure frame with welded-on rear panel base plate Door with fitted seal Right-hand door catch on single-door enclosures may be swapped to the left Mounting panel Screwed-in middle bar, 500 mm, 47.2 in, 70.9 in, 19.7 in, IP 66 | IP X9, IK08, NEMA 4X, Type 1 | Type 3R | Type 4X | Type 12, 94032080, 1 pc(s), 326.284 lbs, 4028177967960, The HD large enclosure is a bayable enclosure solution for hygienically sensitive areas that are subjected to regular cleaning.

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:
RITTAL
Width:
47.20 (in)
Height:
70.90 (in)
Depth:
19.70 (in)
Data Sheet:
Material:
Housing and door: Stainless steel 1.4301 (AISI 304) HD lock inserts: Stainless steel 1.4404 (AISI 316L) Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600 Mounting plate: Carbon steel
Base Material:
Stainless steel 1.4301 (AISI 304)
Surface Finish:
Housing and door: Brushed, grain 400, peak-to-valley height < 0.8 µm Mounting panel: Zinc-plated Seal: Blue, dyed (RAL 5010)
Supply Includes:
Enclosure frame with welded-on rear panel base plate Door with fitted seal Right-hand door catch on single-door enclosures may be swapped to the left Mounting panel Screwed-in middle bar
Mounting Plate Dims:
1,099 mm x 1,696 mm ( 43.3 ? x 66.8 ? )
Depth (mm):
500mm
Width (in):
47.2in
Height (in):
70.9in
Depth (in):
19.7in
IP Rating:
IP 66 | IP X9
IK Code:
IK08
NEMA Rating:
NEMA 4X
UL Type Rating:
Type 1 | Type 3R | Type 4X | Type 12
Customs Tariff No:
94032080
Packaging Unit:
1 pc(s).
Net Weight (kg):
148.000
Net Weight (lb):
326.284
Gross Weight (kg):
149.000
Gross Weight (lb):
328.488
EAN:
4028177967960
ETIM 9:
EC000261
ETIM 8:
EC000261
ECLASS 8.0:
27180101

Related Products

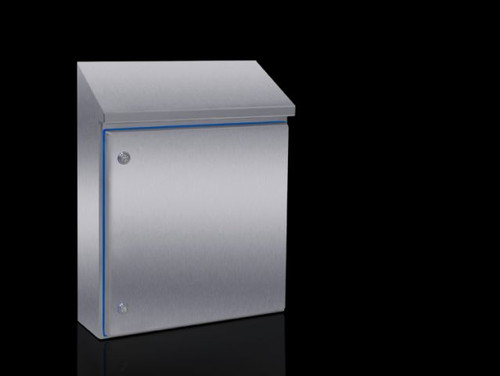

HD 1307600 | HD Compact enclosure, WHD: 510x550(H1)x669(H2)x210 mm, Stainless steel 1.4301, with mounting plate, with hinged door and silicone sealImage_1
Quick view

RITTAL

SKU: HD 1307600

HD 1307600 | HD Compact enclosure, WHD: 510x550(H1)x669(H2)x210 mm, Stainless steel 1.4301, with mounting plate, with hinged door and silicone seal

Data Sheet: Data Sheet
Material: Housing and door: Stainless steel 1.4301 (AISI 304) Mounting plate: Carbon steel HD lock inserts: Stainless steel 1.4404 (AISI 316L) Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600
Base Material: Stainless steel 1.4301 (AISI 304)
Surface Finish: Housing and door: Brushed, grain 400, peak-to-valley height < 0.8 µm Mounting panel: Zinc-plated Seal: Blue, dyed (RAL 5010)
Supply Includes: Housing of all-round solid construction Door with fitted seal Door hinged on the right, may be swapped to the left Mounting panel
Mounting Plate Dims: 450 mm x 475 mm ( 17.7 ? x 18.7 ? )
Width (mm): 510mm
Depth (mm): 210mm
Width (in): 20.1in
Depth (in): 8.27in
IP Rating: IP 66 | IP X9
IK Code: IK08
NEMA Rating: NEMA 1 | NEMA 3 | NEMA 3X | NEMA 4 | NEMA 4X | NEMA 12 | NEMA 13
UL Type Rating: Type 1 | Type 3 | Type 3X | Type 4 | Type 4X | Type 12 | Type 13
Customs Tariff No: 94032080
Packaging Unit: 1 pc(s).
Net Weight (kg): 19.700
Net Weight (lb): 43.431
Gross Weight (kg): 20.300
Gross Weight (lb): 44.754
EAN: 4028177567627
ETIM 9: EC000261
ETIM 8: EC000261
ECLASS 8.0: 27180101
$1,685.96
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
HD 1315600 | HD Compact enclosure, WHD: 810x650(H1)x821(H2)x300 mm, Stainless steel 1.4301, with mounting plate, with hinged door and silicone sealImage_1
Quick view

RITTAL

SKU: HD 1315600

HD 1315600 | HD Compact enclosure, WHD: 810x650(H1)x821(H2)x300 mm, Stainless steel 1.4301, with mounting plate, with hinged door and silicone seal

Data Sheet: Data Sheet
Material: Housing and door: Stainless steel 1.4301 (AISI 304) Mounting plate: Carbon steel HD lock inserts: Stainless steel 1.4404 (AISI 316L) Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600
Base Material: Stainless steel 1.4301 (AISI 304)
Surface Finish: Housing and door: Brushed, grain 400, peak-to-valley height < 0.8 µm Mounting panel: Zinc-plated Seal: Blue, dyed (RAL 5010)
Supply Includes: Housing of all-round solid construction Door with fitted seal Door hinged on the right, may be swapped to the left Mounting panel
Mounting Plate Dims: 750 mm x 575 mm ( 29.5 ? x 22.6 ? )
Width (mm): 810mm
Depth (mm): 300mm
Width (in): 31.9in
Depth (in): 11.8in
IP Rating: IP 66 | IP X9
IK Code: IK08
NEMA Rating: NEMA 1 | NEMA 3 | NEMA 3X | NEMA 4 | NEMA 4X | NEMA 12 | NEMA 13
UL Type Rating: Type 1 | Type 3 | Type 3X | Type 4 | Type 4X | Type 12 | Type 13
Customs Tariff No: 94032080
Packaging Unit: 1 pc(s).
Net Weight (kg): 39.000
Net Weight (lb): 85.980
Gross Weight (kg): 39.500
Gross Weight (lb): 87.082
EAN: 4028177815667
ETIM 9: EC000261
ETIM 8: EC000261
ECLASS 8.0: 27180101
$2,537.84
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
HD 1320600 | HD Compact enclosure, WHD: 610x430(H1)x601(H2)x300 mm, Stainless steel 1.4301, with mounting plate, with hinged door and silicone sealImage_1
Quick view

RITTAL

SKU: HD 1320600

HD 1320600 | HD Compact enclosure, WHD: 610x430(H1)x601(H2)x300 mm, Stainless steel 1.4301, with mounting plate, with hinged door and silicone seal

Data Sheet: Data Sheet
Material: Housing and door: Stainless steel 1.4301 (AISI 304) Mounting plate: Carbon steel HD lock inserts: Stainless steel 1.4404 (AISI 316L) Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600
Base Material: Stainless steel 1.4301 (AISI 304)
Surface Finish: Housing and door: Brushed, grain 400, peak-to-valley height < 0.8 µm Mounting panel: Zinc-plated Seal: Blue, dyed (RAL 5010)
Supply Includes: Housing of all-round solid construction Door with fitted seal Door hinged on the right, may be swapped to the left Mounting panel
Mounting Plate Dims: 550 mm x 355 mm ( 21.7 ? x 14 ? )
Width (mm): 610mm
Depth (mm): 300mm
Width (in): 24in
Depth (in): 11.8in
IP Rating: IP 66 | IP X9
IK Code: IK08
NEMA Rating: NEMA 1 | NEMA 3 | NEMA 3X | NEMA 4 | NEMA 4X | NEMA 12 | NEMA 13
UL Type Rating: Type 1 | Type 3 | Type 3X | Type 4 | Type 4X | Type 12 | Type 13
Customs Tariff No: 94032080
Packaging Unit: 1 pc(s).
Net Weight (kg): 22.000
Net Weight (lb): 48.502
Gross Weight (kg): 23.000
Gross Weight (lb): 50.706
EAN: 4028177567665
ETIM 9: EC000261
ETIM 8: EC000261
ECLASS 8.0: 27180101
$1,790.05
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
HD 1317600 | HD Compact enclosure, WHD: 810x1250(H1)x1421(H2)x300 mm, Stainless steel 1.4301, with mounting plate, with hinged door and silicone sealImage_1
Quick view

RITTAL

SKU: HD 1317600

HD 1317600 | HD Compact enclosure, WHD: 810x1250(H1)x1421(H2)x300 mm, Stainless steel 1.4301, with mounting plate, with hinged door and silicone seal

Data Sheet: Data Sheet
Material: Housing and door: Stainless steel 1.4301 (AISI 304) Mounting plate: Carbon steel HD lock inserts: Stainless steel 1.4404 (AISI 316L) Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600
Base Material: Stainless steel 1.4301 (AISI 304)
Surface Finish: Housing and door: Brushed, grain 400, peak-to-valley height < 0.8 µm Mounting panel: Zinc-plated Seal: Blue, dyed (RAL 5010)
Supply Includes: Housing of all-round solid construction Door with fitted seal Door hinged on the right, may be swapped to the left Mounting panel
Mounting Plate Dims: 745 mm x 1,175 mm ( 29.3 ? x 46.3 ? )
Width (mm): 810mm
Depth (mm): 300mm
Width (in): 31.9in
Depth (in): 11.8in
IP Rating: IP 66 | IP X9
IK Code: IK08
NEMA Rating: NEMA 1 | NEMA 3 | NEMA 3X | NEMA 4 | NEMA 4X | NEMA 12 | NEMA 13
UL Type Rating: Type 1 | Type 3 | Type 3X | Type 4 | Type 4X | Type 12 | Type 13
Customs Tariff No: 94032080
Packaging Unit: 1 pc(s).
Net Weight (kg): 68.870
Net Weight (lb): 151.832
Gross Weight (kg): 71.000
Gross Weight (lb): 156.528
EAN: 4028177567658
ETIM 9: EC000261
ETIM 8: EC000261
ECLASS 8.0: 27180101
$4,145.84
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List

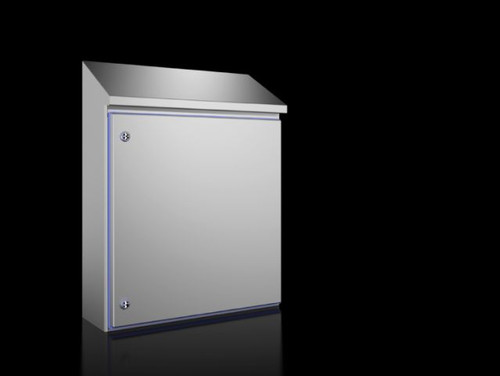

HD 1310600 | HD Compact enclosure, WHD: 610x650(H1)x769(H2)x210 mm, Stainless steel 1.4301, with mounting plate, with hinged door and silicone sealImage_1
