RX 9360000 | RX baying set incl. connector for RiLineX Board 3-pole

RITTAL

No reviews yet Write a Review
SKU:
RX 9360000
$0.00
RX 9360000 | RX baying set incl. connector for RiLineX Board 3-poleImage_1
Condition:
New
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
RX baying set incl. connector for RiLineX Board 3-pole View full description
$0.00

Description

Rittal RX 9360000

RX baying set incl. connector for RiLineX Board 3-pole, RiLineX baying set for board, Upper part: carbon steel, zinc-plated Contact plate: E-Cu, tin-plated Front cover: polyamide (PA 6) Fire behavior corresponding to UL 94, RAL 35745, 3 rail connectors 1 front cover 1 insulating plate, 154 mm, 240 mm, 77 mm, 6.06 in, 9.45 in, 3.03 in, 4, 50, IP 2XB, 85369010, 1 pc(s), 4.145 lbs, 4028177997431, RiLineX baying connector set for the complete board, can be used for 550 A and 800 A. Consists of rail connector and contact hazard protection cover. For simple, drill-free baying of boards between two bayed VX enclosures.

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:
RITTAL
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
Data Sheet:
Material:
Upper part: carbon steel, zinc-plated Contact plate: E-Cu, tin-plated Front cover: polyamide (PA 6) Fire behavior corresponding to UL 94
Color:
RAL 35745
Supply Includes:
3 rail connectors 1 front cover 1 insulating plate
Width (mm):
154mm
Height (mm):
240mm
Depth (mm):
77mm
Width (in):
6.06in
Height (in):
9.45in
Depth (in):
3.03in
Voltage (V):
4
Frequency (Hz):
50
IP Rating:
IP 2XB
Customs Tariff No:
85369010
Packaging Unit:
1 pc(s).
Net Weight (kg):
1.880
Net Weight (lb):
4.145
Gross Weight (kg):
1.924
Gross Weight (lb):
4.242
EAN:
4028177997431
ETIM 9:
EC002270

Related Products

RX 9360104 | RX baying set for RiLineX basic module, without connector (baying connection)Image_1
Quick view

RITTAL

SKU: RX 9360104

RX 9360104 | RX baying set for RiLineX basic module, without connector (baying connection)

Data Sheet: Data Sheet
Material: Polyamide (PA 6) Fire behavior corresponding to UL 94
Color: RAL 35745
Supply Includes: Board end element left and right Board module cover Board module base plate Assembly components
Height (mm): 240mm
Depth (mm): 77mm
Height (in): 9.45in
Depth (in): 3.03in
IP Rating: IP 2XB
Customs Tariff No: 85369010
Packaging Unit: 2 pc(s).
Net Weight (kg): 1.460
Net Weight (lb): 3.219
Gross Weight (kg): 1.481
Gross Weight (lb): 3.265
EAN: 4028177997301
ETIM 9: EC002270
$0.00
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List

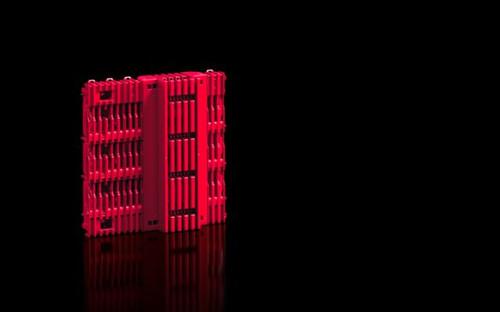

RX 9360103 | RX baying set for RiLineX basic module, without connector (simple connection)Image_1
Quick view

RITTAL

SKU: RX 9360103

RX 9360103 | RX baying set for RiLineX basic module, without connector (simple connection)

Data Sheet: Data Sheet
Material: Polyamide (PA 6) Fire behavior corresponding to UL 94
Color: RAL 35745
Supply Includes: Board end element left and right Board module cover Board module base plate Assembly components
Height (mm): 240mm
Depth (mm): 77mm
Height (in): 9.45in
Depth (in): 3.03in
IP Rating: IP 2XB
Customs Tariff No: 85369010
Packaging Unit: 2 pc(s).
Net Weight (kg): 1.500
Net Weight (lb): 3.307
Gross Weight (kg): 1.752
Gross Weight (lb): 3.862
EAN: 4028177997318
ETIM 9: EC002270
$0.00
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
Quick view

RITTAL

SKU: RX 9360101

RX 9360101 | RX end module set for RiLineX basic module 3-pole

Data Sheet: Data Sheet
Material: Polyamide (PA 6) Fire behavior corresponding to UL 94
Color: RAL 35745
Supply Includes: Board end element left Board end element right Assembly components
Width (mm): 105mm
Height (mm): 240mm
Depth (mm): 49.2mm
Width (in): 4.13in
Height (in): 9.45in
Depth (in): 1.94in
Customs Tariff No: 85472000
Packaging Unit: 2 pc(s).
Net Weight (kg): 1.000
Net Weight (lb): 2.205
Gross Weight (kg): 1.151
Gross Weight (lb): 2.538
EAN: 4028177997325
ETIM 9: EC002270
$0.00
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List

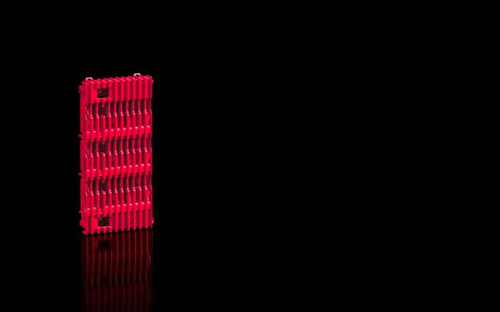

RX 9360110 | RX RiLineX basic module, 3-pole, L=100 mmImage_1
