  • RX 9360635 | RiLineX CB device adapter, RiLineX CB device adapter (3-pole, max. 630 A) for 60 mm busbar systems. The device width is 145 mm. The "universal" version with sliding nuts offers maximum flexibility for switch installation. The adapter has

RX 9360635 | RiLineX CB device adapter, RiLineX CB device adapter (3-pole, max. 630 A) for 60 mm busbar systems. The device width is 145 mm. The "universal" version with sliding nuts offers maximum flexibility for switch installation. The adapter has

RITTAL

No reviews yet Write a Review
SKU:
RX 9360635
$0.00
Condition:
New
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
RiLineX CB device adapter, RiLineX CB device adapter (3-pole, max. 630 A) for 60 mm busbar systems. The device width is 145 mm. The universal" version with sliding nuts offers maximum flexibility for switch installation. The adapter has tool-free sna View full description
$0.00

Description

Rittal RX 9360635

, , RiLineX CB device adapter (3-pole, max. 630 A) for 60 mm busbar systems. The device width is 145 mm. The "universal" version with sliding nuts offers maximum flexibility for switch installation. The adapter has tool-free snap-on mounting with semi-automatic adjustment of the rail thickness between 5 and 10 mm. The cable outlet can be adapted to individual requirements by simply converting the outlet at the bottom or top.

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:
RITTAL
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
Data Sheet:
Material:
Polyamide (PA 6) Fire behavior corresponding to UL 94
Color:
RAL 9005 RAL 35745
Supply Includes:
Incl. 3 connection compartment covers, 2 crossbars and fastening material
Width (mm):
145mm
Height (mm):
325.8mm
Depth (mm):
76.4mm
Width (in):
5.71in
Height (in):
12.8in
Depth (in):
3.01in
Voltage (V):
4
Frequency (Hz):
50
IP Rating:
IP 2XB
Customs Tariff No:
85369095
Packaging Unit:
1 pc(s).
Net Weight (kg):
4.520
Net Weight (lb):
9.965
Gross Weight (kg):
4.722
Gross Weight (lb):
10.410
EAN:
4028177997066
ETIM 9:
EC001531

Related Products
Quick view

RITTAL

SKU: RX 9360625

RX 9360625 | RiLineX CB device adapter, RiLineX CB device adapter (3-pole, max. 400 A) for 60 mm busbar systems. The device width is 145 mm. The "universal" version with sliding nuts offers maximum flexibility for switch installation. The adapter has

Data Sheet: Data Sheet
Material: Polyamide (PA 6) Fire behavior corresponding to UL 94
Color: RAL 9005 RAL 35745
Supply Includes: Incl. 3 connection compartment covers, 2 crossbars and fastening material
Width (mm): 145mm
Height (mm): 325.8mm
Depth (mm): 76.4mm
Width (in): 5.71in
Height (in): 12.8in
Depth (in): 3.01in
Voltage (V): 4
Frequency (Hz): 50
IP Rating: IP 2XB
Customs Tariff No: 85369095
Packaging Unit: 1 pc(s).
Net Weight (kg): 3.600
Net Weight (lb): 7.937
Gross Weight (kg): 3.800
Gross Weight (lb): 8.378
EAN: 4028177997073
ETIM 9: EC001531
$0.00
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
RX 9360603 | RiLineX CB device adapter, RiLineX CB device adapter (3-pole, max. 160 A) for 60 mm busbar systems. The device width is 81 mm. The "universal" version with sliding nuts offers maximum flexibility for switch installation. The adapter has Image_1
Quick view

RITTAL

SKU: RX 9360603

RX 9360603 | RiLineX CB device adapter, RiLineX CB device adapter (3-pole, max. 160 A) for 60 mm busbar systems. The device width is 81 mm. The "universal" version with sliding nuts offers maximum flexibility for switch installation. The adapter has

Data Sheet: Data Sheet
Material: Polyamide (PA 6) Fire behavior corresponding to UL 94
Color: RAL 9005 RAL 35745
Width (mm): 81.9mm
Height (mm): 251.4mm
Depth (mm): 50.8mm
Width (in): 3.22in
Height (in): 9.9in
Depth (in): 2in
Voltage (V): 4
Frequency (Hz): 50
IP Rating: IP 2XB
Customs Tariff No: 39269097
Packaging Unit: 1 pc(s).
Net Weight (kg): 1.210
Net Weight (lb): 2.668
Gross Weight (kg): 1.217
Gross Weight (lb): 2.683
$0.00
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
RX 9360613 | RiLineX CB device adapter, RiLineX CB device adapter (3-pole, max. 250 A) for 60 mm busbar systems. The device width is 105 mm. The "universal" version with sliding nuts offers maximum flexibility for switch installation. The adapter hasImage_1
Quick view

RITTAL

SKU: RX 9360613

RX 9360613 | RiLineX CB device adapter, RiLineX CB device adapter (3-pole, max. 250 A) for 60 mm busbar systems. The device width is 105 mm. The "universal" version with sliding nuts offers maximum flexibility for switch installation. The adapter has

Data Sheet: Data Sheet
Material: Polyamide (PA 6) Fire behavior corresponding to UL 94
Color: RAL 9005 RAL 35745
Width (mm): 108.7mm
Height (mm): 251.4mm
Depth (mm): 62.8mm
Width (in): 4.28in
Height (in): 9.9in
Depth (in): 2.47in
Voltage (V): 4
Frequency (Hz): 50
IP Rating: IP 2XB
Customs Tariff No: 39269097
Packaging Unit: 1 pc(s).
Net Weight (kg): 1.470
Net Weight (lb): 3.241
Gross Weight (kg): 1.473
Gross Weight (lb): 3.247
$0.00
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List

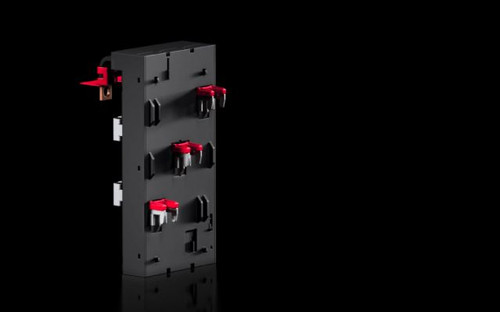

RX 9360612 | RiLineX CB device adapter, RiLineX CB device adapter (3-pole, max. 250 A) for 60 mm busbar systems. The device width is 105 mm. The "universal" version with sliding nuts offers maximum flexibility for switch installation. The adapter hasImage_1
