  • RX 9360802 | RiLineX bus-mounting fuse element, RiLineX bus-mounting fuse element for 60 mm busbar systems. For fuse D 01 (with fitting ring) and D 02 (E18). With optical LED fuse monitoring. For safe contacting of the fuse, the device does not have

RX 9360802 | RiLineX bus-mounting fuse element, RiLineX bus-mounting fuse element for 60 mm busbar systems. For fuse D 01 (with fitting ring) and D 02 (E18). With optical LED fuse monitoring. For safe contacting of the fuse, the device does not have

RITTAL

No reviews yet Write a Review
SKU:
RX 9360802
$0.00
RX 9360802 | RiLineX bus-mounting fuse element, RiLineX bus-mounting fuse element for 60 mm busbar systems. For fuse D 01 (with fitting ring) and D 02 (E18). With optical LED fuse monitoring. For safe contacting of the fuse, the device does not have Image_1
Condition:
New
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
RiLineX bus-mounting fuse element, RiLineX bus-mounting fuse element for 60 mm busbar systems. For fuse D 01 (with fitting ring) and D 02 (E18). With optical LED fuse monitoring. For safe contacting of the fuse, the device does not have screw caps, b View full description
$0.00

Description

Rittal RX 9360802

, , RiLineX bus-mounting fuse element for 60 mm busbar systems. For fuse D 01 (with fitting ring) and D 02 (E18). With optical LED fuse monitoring. For safe contacting of the fuse, the device does not have screw caps, but fuse holders that can be locked when open and sealed when closed. A tension clamp terminal up to 16 mm² at an angle of 45° facilitates conductor connection. The device is suitable for tool-free snap-on installation and has a semi-automatic rail adjustment for 5 and 10 mm.

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:
RITTAL
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
Data Sheet:
Material:
Polyamide (PA 6) Fire protection corresponding to UL 94-V0
Color:
RAL 35745 RAL 9005
Supply Includes:
4 bus-mounting fuse elements 12 reducers for D 01 fuses
Width (mm):
26.8mm
Height (mm):
253.8mm
Depth (mm):
89.8mm
Width (in):
1.06in
Height (in):
9.99in
Depth (in):
3.54in
Voltage (V):
1,000 V
IP Rating:
IP 2XB
Customs Tariff No:
85369095
Packaging Unit:
4 pc(s).
Net Weight (kg):
1.432
Net Weight (lb):
3.157
Gross Weight (kg):
1.437
Gross Weight (lb):
3.168
ETIM 9:
EC001644

Related Products

RX 9360805 | RiLineX bus-mounting fuse element, RiLineX bus-mounting fuse element for 60 mm busbar systems. For fuse D 01 (with fitting ring) and D 02 (E18). With electronic and optical LED fuse monitoring via signaling contacts. For safe contacting Image_1
Quick view

RITTAL

SKU: RX 9360805

RX 9360805 | RiLineX bus-mounting fuse element, RiLineX bus-mounting fuse element for 60 mm busbar systems. For fuse D 01 (with fitting ring) and D 02 (E18). With electronic and optical LED fuse monitoring via signaling contacts. For safe contacting

Data Sheet: Data Sheet
Material: Polyamide (PA 6) Fire protection corresponding to UL 94-V0
Color: RAL 35745 RAL 9005
Supply Includes: 4 bus-mounting fuse elements 12 reducers for D 01 fuses
Width (mm): 35.8mm
Height (mm): 253.8mm
Depth (mm): 89.8mm
Width (in): 1.41in
Height (in): 9.99in
Depth (in): 3.54in
Voltage (V): 1,000 V
IP Rating: IP 2XB
Customs Tariff No: 85369095
Packaging Unit: 4 pc(s).
Net Weight (kg): 1.796
Net Weight (lb): 3.959
Gross Weight (kg): 1.800
Gross Weight (lb): 3.968
ETIM 9: EC001644
$0.00
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
RX 9364022 | RiLineX bus-mounting fuse element, Compact RiLineX bus-mounting fuse element for 60 mm busbar systems. For cylinder fuse 10 x 38 mm with optical LED fuse monitoring. For safe contacting of the cylinder fuses, the device has special fuse Image_1
Quick view

RITTAL

SKU: RX 9364022

RX 9364022 | RiLineX bus-mounting fuse element, Compact RiLineX bus-mounting fuse element for 60 mm busbar systems. For cylinder fuse 10 x 38 mm with optical LED fuse monitoring. For safe contacting of the cylinder fuses, the device has special fuse

Data Sheet: Data Sheet
Material: Polyamide (PA 6) Fire protection corresponding to UL 94-V0
Color: RAL 35745 RAL 9005
Width (mm): 17.8mm
Height (mm): 262.5mm
Depth (mm): 95mm
Width (in): 0.7in
Height (in): 10.3in
Depth (in): 3.74in
Voltage (V): 800 V
IP Rating: IP 2XB
Customs Tariff No: 85369095
Packaging Unit: 4 pc(s).
Net Weight (kg): 1.008
Net Weight (lb): 2.222
Gross Weight (kg): 1.014
Gross Weight (lb): 2.235
ETIM 9: EC001644
$0.00
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List

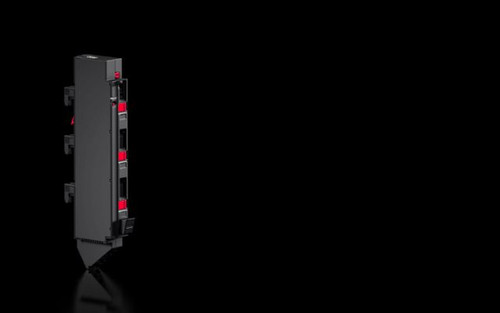

RX 9364024 | RiLineX bus-mounting fuse element, Compact RiLineX bus-mounting fuse element for 60 mm busbar systems. For cylinder fuse 10 x 38 mm with electronic and optical LED fuse monitoring via signaling contacts. For safe contacting of the cylindImage_1
