RX 9360824 | RX fuse switch disconnector 63 A, 3-pole, with LED and fuse monitoring, W: 36 mm (D-switch)

RITTAL

No reviews yet Write a Review
SKU:
RX 9360824
$0.00
RX 9360824 | RX fuse switch disconnector 63 A, 3-pole, with LED and fuse monitoring, W: 36 mm (D-switch)Image_1
Condition:
New
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
RX fuse switch disconnector 63 A, 3-pole, with LED and fuse monitoring, W: 36 mm (D-switch) View full description
$0.00

Description

Rittal RX 9360824

RX fuse switch disconnector 63 A, 3-pole, with LED and fuse monitoring, W: 36 mm (D-switch), RiLineX fuse switch disconnector D-switch, Polyamide (PA 6) Fire behavior corresponding to UL 94, 4 fuse switch disconnectors 12 reducers for D 01 fuses, 35.8 mm, 263 mm, 104.2 mm, 1.41 in, 10.4 in, 4.1 in, 800 V, IP 2XB, 85365080, 4 pc(s), 4.921 lbs, , RiLineX fuse switch disconnector for 60 mm busbar systems. For use with D 01 (via fitting ring) and D 02 fuses (max. 63 A). Also suitable for use with 10 x 38 mm cylinder locks using the retaining springs supplied. Integrated optical LED fuse monitoring and electronic fuse monitoring with signaling contacts. The switch can be locked in the on and off position. Tension clamp terminals up to 16 mm² at an angle of 45° make it easier to connect conductors. The device is suitable for tool-free snap-on installation with semi-automatic rail adjustment for 5 and 10 mm.

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:
RITTAL
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
Data Sheet:
Material:
Polyamide (PA 6) Fire behavior corresponding to UL 94
Supply Includes:
4 fuse switch disconnectors 12 reducers for D 01 fuses
Width (mm):
35.8mm
Height (mm):
263mm
Depth (mm):
104.2mm
Width (in):
1.41in
Height (in):
10.4in
Depth (in):
4.1in
Voltage (V):
800 V
IP Rating:
IP 2XB
Customs Tariff No:
85365080
Packaging Unit:
4 pc(s).
Net Weight (kg):
2.232
Net Weight (lb):
4.921
Gross Weight (kg):
2.236
Gross Weight (lb):
4.930
ETIM 9:
EC001040

Related Products

RX 9360825 | RX fuse switch disconnector 63 A, 3-pole, with LED, W: 27 mm (D-switch)Image_1
Quick view

RITTAL

SKU: RX 9360825

RX 9360825 | RX fuse switch disconnector 63 A, 3-pole, with LED, W: 27 mm (D-switch)

Data Sheet: Data Sheet
Material: Polyamide (PA 6) Fire behavior corresponding to UL 94
Supply Includes: 4 fuse switch disconnectors 12 reducers for D 01 fuses
Width (mm): 26.8mm
Height (mm): 263mm
Depth (mm): 104.2mm
Width (in): 1.06in
Height (in): 10.4in
Depth (in): 4.1in
Voltage (V): 800 V
IP Rating: IP 2XB
Customs Tariff No: 85365080
Packaging Unit: 4 pc(s).
Net Weight (kg): 1.784
Net Weight (lb): 3.933
Gross Weight (kg): 1.792
Gross Weight (lb): 3.951
ETIM 9: EC001040
$0.00
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
RX 9362315 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 3 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measurImage_1
Quick view

RITTAL

SKU: RX 9362315

RX 9362315 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 3 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measur

Data Sheet: Data Sheet
Material: Polyamide (PA 6) Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-plated
Color: RAL 9005 RAL 35745
Supply Includes: Incl. connection plug for electrical fuse monitoring
Width (mm): 250mm
Height (mm): 348.6mm
Depth (mm): 134.9mm
Width (in): 9.84in
Height (in): 13.7in
Depth (in): 5.31in
Voltage (V): 690 V AC
IP Rating: IP 2XB
Customs Tariff No: 85369095
Packaging Unit: 1 pc(s).
Net Weight (kg): 4.700
Net Weight (lb): 10.362
Gross Weight (kg): 4.830
Gross Weight (lb): 10.648
ETIM 9: EC001040
$0.00
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
RX 9362310 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 3 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measurImage_1
Quick view

RITTAL

SKU: RX 9362310

RX 9362310 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 3 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measur

Data Sheet: Data Sheet
Material: Polyamide (PA 6) Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-plated
Color: RAL 9005 RAL 35745
Width (mm): 250mm
Height (mm): 298.4mm
Depth (mm): 134.9mm
Width (in): 9.84in
Height (in): 11.7in
Depth (in): 5.31in
Voltage (V): 690 V AC
IP Rating: IP 2XB
Customs Tariff No: 85369095
Packaging Unit: 1 pc(s).
Net Weight (kg): 4.450
Net Weight (lb): 9.811
Gross Weight (kg): 4.492
Gross Weight (lb): 9.903
ETIM 9: EC001040
$0.00
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
RX 9362350 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 3 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measurImage_1
Quick view

RITTAL

SKU: RX 9362350

RX 9362350 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 3 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measur

Data Sheet: Data Sheet
Material: Polyamide (PA 6) Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-plated
Color: RAL 9005 RAL 35745
Width (mm): 250mm
Height (mm): 298.4mm
Depth (mm): 134.9mm
Width (in): 9.84in
Height (in): 11.7in
Depth (in): 5.31in
Voltage (V): 690 V AC
IP Rating: IP 2XB
Customs Tariff No: 85369095
Packaging Unit: 1 pc(s).
Net Weight (kg): 4.700
Net Weight (lb): 10.362
Gross Weight (kg): 4.900
Gross Weight (lb): 10.803
ETIM 9: EC001040
$0.00
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List

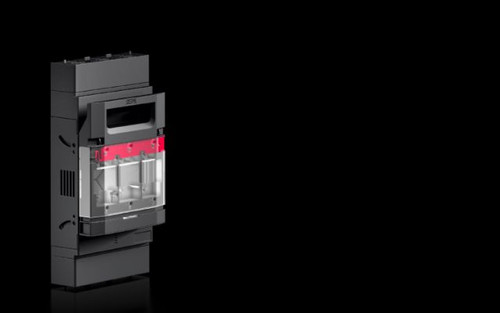

RX 9363315 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in sizes 3 for mounting plates. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measuremenImage_1
