  • RX 9362210 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 2 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measur

RX 9362210 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 2 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measur

RITTAL

No reviews yet Write a Review
SKU:
RX 9362210
$0.00
Condition:
New
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 2 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measurement points View full description
$0.00

Description

Rittal RX 9362210

, , RiLineX NH fuse-switch-disconnector in size 2 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measurement points on the cover. The NH fuse-switch-disconnectors have a park position to simplify maintenance work. Connection version with M10 screw connection. Cable outlet can be individually converted at the top or bottom.

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:
RITTAL
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
Data Sheet:
Material:
Polyamide (PA 6) Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-plated
Color:
RAL 9005 RAL 35745
Width (mm):
208.5mm
Height (mm):
298.6mm
Depth (mm):
134.6mm
Width (in):
8.21in
Height (in):
11.8in
Depth (in):
5.3in
Voltage (V):
690 V AC
IP Rating:
IP 2XB
Customs Tariff No:
85369095
Packaging Unit:
1 pc(s).
Net Weight (kg):
3.870
Net Weight (lb):
8.532
Gross Weight (kg):
3.942
Gross Weight (lb):
8.691
ETIM 9:
EC001040

Related Products
Quick view

RITTAL

SKU: RX 9362250

RX 9362250 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 2 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measur

Data Sheet: Data Sheet
Material: Polyamide (PA 6) Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-plated
Color: RAL 9005 RAL 35745
Width (mm): 208.5mm
Height (mm): 298.6mm
Depth (mm): 134.6mm
Width (in): 8.21in
Height (in): 11.8in
Depth (in): 5.3in
Voltage (V): 690 V AC
IP Rating: IP 2XB
Customs Tariff No: 85369095
Packaging Unit: 1 pc(s).
Net Weight (kg): 4.250
Net Weight (lb): 9.370
Gross Weight (kg): 4.355
Gross Weight (lb): 9.601
ETIM 9: EC001040
$0.00
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List

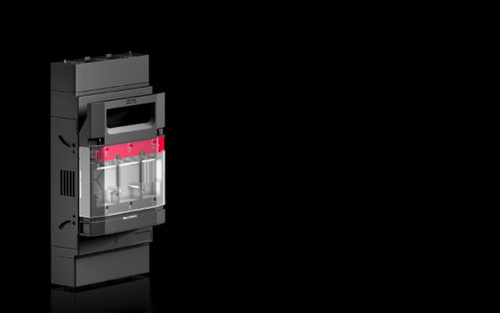

RX 9362215 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 2 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measurImage_1
Quick view

RITTAL

SKU: RX 9362215

RX 9362215 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 2 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measur

Data Sheet: Data Sheet
Material: Polyamide (PA 6) Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-plated
Color: RAL 9005 RAL 35745
Supply Includes: Incl. connection plug for electrical fuse monitoring
Width (mm): 208.5mm
Height (mm): 348.7mm
Depth (mm): 134.6mm
Width (in): 8.21in
Height (in): 13.7in
Depth (in): 5.3in
Voltage (V): 690 V AC
IP Rating: IP 2XB
Customs Tariff No: 85369095
Packaging Unit: 1 pc(s).
Net Weight (kg): 4.200
Net Weight (lb): 9.259
Gross Weight (kg): 4.268
Gross Weight (lb): 9.409
ETIM 9: EC001040
$0.00
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
RX 9362110 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 1 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measurImage_1
Quick view

RITTAL

SKU: RX 9362110

RX 9362110 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 1 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measur

Data Sheet: Data Sheet
Material: Polyamide (PA 6) Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-plated
Color: RAL 9005 RAL 35745
Width (mm): 181.5mm
Height (mm): 298mm
Depth (mm): 116.7mm
Width (in): 7.15in
Height (in): 11.7in
Depth (in): 4.59in
Voltage (V): 690 V AC
IP Rating: IP 2XB
Customs Tariff No: 85369095
Packaging Unit: 1 pc(s).
Net Weight (kg): 2.273
Net Weight (lb): 5.011
Gross Weight (kg): 2.448
Gross Weight (lb): 5.397
ETIM 9: EC001040
$0.00
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
RX 9362350 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 3 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measurImage_1
Quick view

RITTAL

SKU: RX 9362350

RX 9362350 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 3 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measur

Data Sheet: Data Sheet
Material: Polyamide (PA 6) Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-plated
Color: RAL 9005 RAL 35745
Width (mm): 250mm
Height (mm): 298.4mm
Depth (mm): 134.9mm
Width (in): 9.84in
Height (in): 11.7in
Depth (in): 5.31in
Voltage (V): 690 V AC
IP Rating: IP 2XB
Customs Tariff No: 85369095
Packaging Unit: 1 pc(s).
Net Weight (kg): 4.700
Net Weight (lb): 10.362
Gross Weight (kg): 4.900
Gross Weight (lb): 10.803
ETIM 9: EC001040
$0.00
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
RX 9362115 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 1 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measurImage_1
Quick view

RITTAL

SKU: RX 9362115

RX 9362115 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 1 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measur

Data Sheet: Data Sheet
Material: Polyamide (PA 6) Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-plated
Color: RAL 9005 RAL 35745
Supply Includes: Incl. connection plug for electrical fuse monitoring
Width (mm): 181.5mm
Height (mm): 348.5mm
Depth (mm): 116.7mm
Width (in): 7.15in
Height (in): 13.7in
Depth (in): 4.59in
Voltage (V): 690 V AC
IP Rating: IP 2XB
Customs Tariff No: 85369095
Packaging Unit: 1 pc(s).
Net Weight (kg): 2.700
Net Weight (lb): 5.952
Gross Weight (kg): 2.728
Gross Weight (lb): 6.014
ETIM 9: EC001040
$0.00
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
