  • RX 9362316 | RiLineX NH fuse switch disconnector, RiLineX NH fuse switch disconnectors, size 3, for 60 mm busbar systems. The cover can be locked, sealed and has visual fuse monitoring. Safe voltage testing is carried out via integrated measuring poi

RX 9362316 | RiLineX NH fuse switch disconnector, RiLineX NH fuse switch disconnectors, size 3, for 60 mm busbar systems. The cover can be locked, sealed and has visual fuse monitoring. Safe voltage testing is carried out via integrated measuring poi

RITTAL

No reviews yet Write a Review
SKU:
RX 9362316
$0.00
RX 9362316 | RiLineX NH fuse switch disconnector, RiLineX NH fuse switch disconnectors, size 3, for 60 mm busbar systems. The cover can be locked, sealed and has visual fuse monitoring. Safe voltage testing is carried out via integrated measuring poiImage_1
Condition:
New
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
RiLineX NH fuse switch disconnector, RiLineX NH fuse switch disconnectors, size 3, for 60 mm busbar systems. The cover can be locked, sealed and has visual fuse monitoring. Safe voltage testing is carried out via integrated measuring points on the co View full description
$0.00

Description

Rittal RX 9362316

, , RiLineX NH fuse switch disconnectors, size 3, for 60 mm busbar systems. The cover can be locked, sealed and has visual fuse monitoring. Safe voltage testing is carried out via integrated measuring points on the cover. The NH fuse switch disconnectors have a park position to make the maintenance work easier. Connection design with screwed connection, size M10. Cable outlet can be individually configured to be at the top or bottom. Includes electronic fuse monitoring. Suitable for voltage range between 180 and 400 V.

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:
RITTAL
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
Data Sheet:
Material:
Polyamide (PA 6) Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-plated
Color:
RAL 9005 RAL 35745
Width (mm):
250mm
Height (mm):
349mm
Depth (mm):
135mm
Width (in):
9.84in
Height (in):
13.7in
Depth (in):
5.31in
Voltage (V):
400 V
IP Rating:
IP 2XB
Customs Tariff No:
85369095
Packaging Unit:
1 pc(s).

Related Products
Quick view

RITTAL

SKU: RX 9362216

RX 9362216 | RiLineX NH fuse switch disconnector, RiLineX NH fuse switch disconnectors, size 2, for 60 mm busbar systems. The cover can be locked, sealed and has visual fuse monitoring. Safe voltage testing is carried out via integrated measuring poi

Data Sheet: Data Sheet
Material: Polyamide (PA 6) Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-plated
Color: RAL 9005 RAL 35745
Width (mm): 209mm
Height (mm): 349mm
Depth (mm): 135mm
Width (in): 8.23in
Height (in): 13.7in
Depth (in): 5.31in
IP Rating: IP 2XB
Customs Tariff No: 85369095
Packaging Unit: 1 pc(s).
$0.00
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List

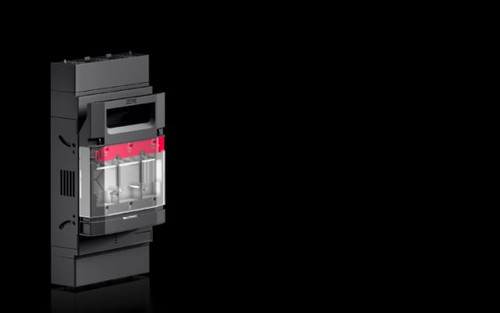

RX 9362116 | RiLineX NH fuse switch disconnector, RiLineX NH fuse switch disconnectors, size 1, for 60 mm busbar systems. The cover can be locked, sealed and has visual fuse monitoring. Safe voltage testing is carried out via integrated measuring poiImage_1
Quick view

RITTAL

SKU: RX 9362116

RX 9362116 | RiLineX NH fuse switch disconnector, RiLineX NH fuse switch disconnectors, size 1, for 60 mm busbar systems. The cover can be locked, sealed and has visual fuse monitoring. Safe voltage testing is carried out via integrated measuring poi

Data Sheet: Data Sheet
Material: Polyamide (PA 6) Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-plated
Color: RAL 9005 RAL 35745
Width (mm): 182mm
Height (mm): 349mm
Depth (mm): 117mm
Width (in): 7.17in
Height (in): 13.7in
Depth (in): 4.61in
Voltage (V): 400 V
IP Rating: IP 2XB
Customs Tariff No: 85369095
Packaging Unit: 1 pc(s).
$0.00
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List

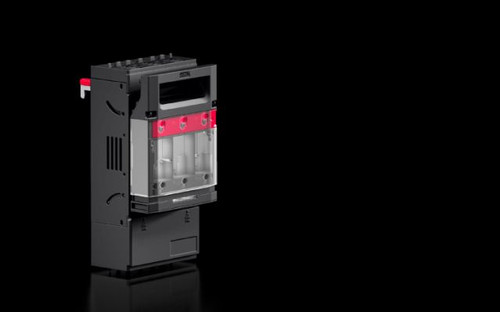

RX 9362036 | RiLineX NH fuse switch disconnector, RiLineX NH fuse switch disconnectors, size 00, for 60 mm busbar systems. The cover can be locked, sealed and has visual fuse monitoring. Safe voltage testing is carried out via integrated measuring poImage_1
