SE 5830680 | VX SE Free-standing enclosure system, WHD: 600x1800x400 mm, Sheet steel, IP66 / NEMA 4, with mounting plate, single door at the front

RITTAL

No reviews yet Write a Review
SKU:
SE 5830680
$2,022.64

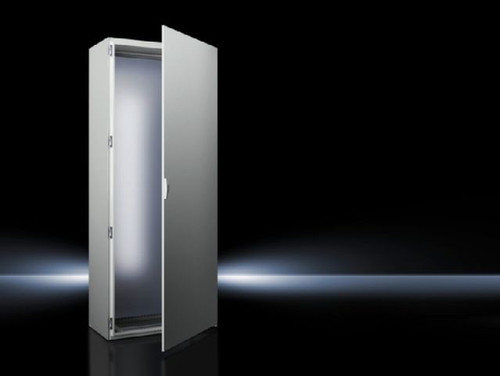

SE 5830680 | VX SE Free-standing enclosure system, WHD: 600x1800x400 mm, Sheet steel, IP66 / NEMA 4, with mounting plate, single door at the frontImage_1
Condition:
New
Width:
23.60 (in)
Height:
70.90 (in)
Depth:
15.70 (in)
Shipping:
Calculated at Checkout
VX SE Free-standing enclosure system, WHD: 600x1800x400 mm, Sheet steel, IP66 / NEMA 4, with mounting plate, single door at the front View full description
$2,022.64
37 people looking at this.

Description

Rittal SE 5830680

VX SE Free-standing enclosure system, WHD: 600x1800x400 mm, Sheet steel, IP66 / NEMA 4, with mounting plate, single door at the front, VX SE enclosure system IP 66/NEMA 4, 499 mm x 1,696 mm ( 19.6 ? x 66.8 ? ), Housing: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm, Carbon steel, Housing, door and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated Base: Dipcoat-primed and powder-coated, textured paint, RAL 7035, Housing, solid top and sides Door(s) Door hinged on the right, may be swapped to the left Mounting panel Base, gland plate(s) Rear panel, detachable Lock: 3 mm double-bit 2 punched rails, 18 x 39 mm, 600 mm, 400 mm, 23.6 in, 70.9 in, 15.7 in, IP 66, IK10, NEMA 4, Type 1 | Type 2 | Type 3 | Type 3R | Type 4 | Type 12, 1, 94032080, 1 pc(s), 221.564 lbs, 4028177959323, Individual carbon steel enclosure with stable enclosure body, two integrated mounting levels, screw-fastened rear panel and door. Roof and sides from a single piece with roll-formed frame. Fully compatible with the VX25 baying system. Increases efficiency as side panels do not have to be mounted. High level of protection to IP 66/NEMA 4.

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:
RITTAL
Width:
23.60 (in)
Height:
70.90 (in)
Depth:
15.70 (in)
Data Sheet:
Material:
Housing: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm
Base Material:
Carbon steel
Surface Finish:
Housing, door and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated Base: Dipcoat-primed and powder-coated, textured paint
Color:
RAL 7035
Supply Includes:
Housing, solid top and sides Door(s) Door hinged on the right, may be swapped to the left Mounting panel Base, gland plate(s) Rear panel, detachable Lock: 3 mm double-bit 2 punched rails, 18 x 39 mm
Mounting Plate Dims:
499 mm x 1,696 mm ( 19.6 ? x 66.8 ? )
Number of Doors:
1
Width (mm):
600mm
Depth (mm):
400mm
Width (in):
23.6in
Height (in):
70.9in
Depth (in):
15.7in
IP Rating:
IP 66
IK Code:
IK10
NEMA Rating:
NEMA 4
UL Type Rating:
Type 1 | Type 2 | Type 3 | Type 3R | Type 4 | Type 12
Customs Tariff No:
94032080
Packaging Unit:
1 pc(s).
Net Weight (kg):
100.500
Net Weight (lb):
221.564
Gross Weight (kg):
103.600
Gross Weight (lb):
228.399
EAN:
4028177959323
ETIM 9:
EC000261
ECLASS 8.0:
27180101

Related Products

SE 5834680 | VX SE Free-standing enclosure system, WHD: 800x2000x600 mm, Sheet steel, IP66 / NEMA 4, with mounting plate, single door at the frontImage_1
Quick view

RITTAL

SKU: SE 5834680

SE 5834680 | VX SE Free-standing enclosure system, WHD: 800x2000x600 mm, Sheet steel, IP66 / NEMA 4, with mounting plate, single door at the front

Data Sheet: Data Sheet
Material: Housing: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm
Base Material: Carbon steel
Surface Finish: Housing, door and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated Base: Dipcoat-primed and powder-coated, textured paint
Color: RAL 7035
Supply Includes: Housing, solid top and sides Door(s) Door hinged on the right, may be swapped to the left Mounting panel Base, gland plate(s) Rear panel, detachable Lock: 3 mm double-bit 2 punched rails, 18 x 39 mm
Mounting Plate Dims: 699 mm x 1,896 mm ( 27.5 ? x 74.6 ? )
Number of Doors: 1
Width (mm): 800mm
Depth (mm): 600mm
Width (in): 31.5in
Height (in): 78.7in
Depth (in): 23.6in
IP Rating: IP 66
IK Code: IK10
NEMA Rating: NEMA 4
UL Type Rating: Type 1 | Type 2 | Type 3 | Type 3R | Type 4 | Type 12
Customs Tariff No: 94032080
Packaging Unit: 1 pc(s).
Net Weight (kg): 148.000
Net Weight (lb): 326.284
Gross Weight (kg): 152.000
Gross Weight (lb): 335.102
EAN: 4028177959316
ETIM 9: EC000261
ECLASS 8.0: 27180101
$2,432.69
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
SE 5831680 | VX SE Free-standing enclosure system, WHD: 800x1800x400 mm, Sheet steel, with mounting plate, single door at the frontImage_1
Quick view

RITTAL

SKU: SE 5831680

SE 5831680 | VX SE Free-standing enclosure system, WHD: 800x1800x400 mm, Sheet steel, with mounting plate, single door at the front

Data Sheet: Data Sheet
Material: Housing: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm
Base Material: Carbon steel
Surface Finish: Housing, door and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated Base: Dipcoat-primed and powder-coated, textured paint
Color: RAL 7035
Supply Includes: Housing, solid top and sides Door(s) Door hinged on the right, may be swapped to the left Mounting panel Base, gland plate(s) Rear panel, detachable Lock: 3 mm double-bit 2 punched rails, 18 x 39 mm
Mounting Plate Dims: 699 mm x 1,696 mm ( 27.5 ? x 66.8 ? )
Number of Doors: 1
Width (mm): 800mm
Depth (mm): 400mm
Width (in): 31.5in
Height (in): 70.9in
Depth (in): 15.7in
IP Rating: IP 66
IK Code: IK10
NEMA Rating: NEMA 4
UL Type Rating: Type 1 | Type 2 | Type 3 | Type 3R | Type 4 | Type 12
Customs Tariff No: 94032080
Packaging Unit: 1 pc(s).
Net Weight (kg): 121.100
Net Weight (lb): 266.979
Gross Weight (kg): 124.800
Gross Weight (lb): 275.137
EAN: 4028177959309
ETIM 9: EC000261
ECLASS 8.0: 27180101
$2,190.66
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
SE 5854600 | VX SE Free-standing enclosure system, WHD: 1000x1800x400 mm, Stainless Steel, 1.4301, with mounting plate, single door at the frontImage_1
Quick view

RITTAL

SKU: SE 5854600

SE 5854600 | VX SE Free-standing enclosure system, WHD: 1000x1800x400 mm, Stainless Steel, 1.4301, with mounting plate, single door at the front

Data Sheet: Data Sheet
Material: Housing: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed Door: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed Rear panel: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed Base plates: Stainless steel 1.4301 (AISI 3
Base Material: Stainless steel 1.4301 (AISI 304)
Surface Finish: Housing, door and rear panel: Brushed, grain 400 Base plates: Uncoated Mounting panel: Zinc-plated
Supply Includes: Housing, solid top and sides Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Rear panel, detachable Mounting panel Base Plates Lock: 3 mm double-bit 2 punched rails, 18 x 39 mm
Mounting Plate Dims: 899 mm x 1,696 mm ( 35.4 ? x 66.8 ? )
Number of Doors: 1
Depth (mm): 400mm
Width (in): 39.4in
Height (in): 70.9in
Depth (in): 15.7in
IP Rating: IP 55
IK Code: IK10
NEMA Rating: NEMA 3R | NEMA 12
UL Type Rating: Type 1 | Type 2 | Type 3 | Type 3R | Type 12
Customs Tariff No: 94032080
Packaging Unit: 1 pc(s).
Net Weight (kg): 133.000
Net Weight (lb): 293.214
Gross Weight (kg): 140.400
Gross Weight (lb): 309.529
EAN: 4028177959330
ETIM 9: EC000261
ETIM 8: EC000261
ECLASS 8.0: 27180101
$7,835.17
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
SE 5852680 | VX SE Free-standing enclosure system, WHD: 800x1800x500 mm, Stainless Steel, 1.4301, with mounting plate, single door at the frontImage_1
Quick view

RITTAL

SKU: SE 5852680

SE 5852680 | VX SE Free-standing enclosure system, WHD: 800x1800x500 mm, Stainless Steel, 1.4301, with mounting plate, single door at the front

Data Sheet: Data Sheet
Material: Housing: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed Door: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed Rear panel: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed Mounting panel: Carbon steel, 3.0 mm Base:
Base Material: Stainless steel 1.4301 (AISI 304)
Surface Finish: Housing, rear panel and door: Brushed, grain 400 Mounting panel: Zinc-plated Base: Uncoated
Supply Includes: Housing, solid top and sides Door(s) Door hinged on the right, may be swapped to the left Rear panel, detachable Mounting panel Base, gland plate(s) Lock: 3 mm double-bit 2 punched rails, 18 x 39 mm
Mounting Plate Dims: 699 mm x 1,696 mm ( 27.5 ? x 66.8 ? )
Number of Doors: 1
Width (mm): 800mm
Depth (mm): 500mm
Width (in): 31.5in
Height (in): 70.9in
Depth (in): 19.7in
IP Rating: IP 66
IK Code: IK10
NEMA Rating: NEMA 4X
UL Type Rating: Type 1 | Type 2 | Type 3 | Type 3X | Type 3R | Type 3RX | Type 4 | Type 4X | Type 12
Customs Tariff No: 94032080
Packaging Unit: 1 pc(s).
Net Weight (kg): 132.300
Net Weight (lb): 291.671
Gross Weight (kg): 134.000
Gross Weight (lb): 295.419
EAN: 4028177959408
ETIM 9: EC000261
ECLASS 8.0: 27180101
$7,771.39
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List

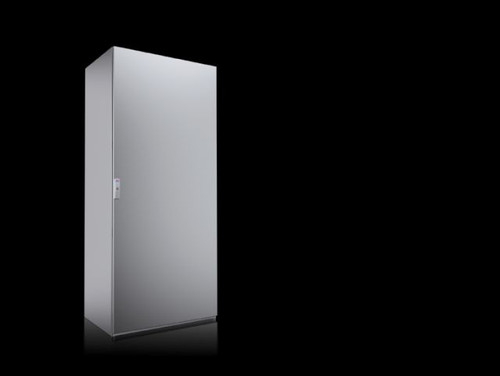

SE 5852600 | VX SE Free-standing enclosure system, WHD: 800x1800x500 mm, Stainless Steel, 1.4301, with mounting plate, single door at the frontImage_1
