SE 5853680 | VX SE Free-standing enclosure system, WHD: 800x2000x600 mm, Stainless Steel, 1.4301 / IP 66 / NEMA 4X, with mounting plate, single door at the front

RITTAL

No reviews yet Write a Review
SKU:
SE 5853680
$9,250.17
SE 5853680 | VX SE Free-standing enclosure system, WHD: 800x2000x600 mm, Stainless Steel, 1.4301 / IP 66 / NEMA 4X, with mounting plate, single door at the frontImage_1
Condition:
New
Width:
31.50 (in)
Height:
78.70 (in)
Depth:
23.60 (in)
Shipping:
Calculated at Checkout
VX SE Free-standing enclosure system, WHD: 800x2000x600 mm, Stainless Steel, 1.4301 / IP 66 / NEMA 4X, with mounting plate, single door at the front View full description
$9,250.17
12 people looking at this.

Description

Rittal SE 5853680

VX SE Free-standing enclosure system, WHD: 800x2000x600 mm, Stainless Steel, 1.4301 / IP 66 / NEMA 4X, with mounting plate, single door at the front, VX SE enclosure system IP 66/NEMA 4X, 699 mm x 1,896 mm ( 27.5 ? x 74.6 ? ), Housing: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed Door: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed Rear panel: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed Mounting panel: Carbon steel, 3.0 mm Base: Stainless steel 1.4301 (AISI 304), 1.5 mm, Stainless steel 1.4301 (AISI 304), Housing, rear panel and door: Brushed, grain 400 Mounting panel: Zinc-plated Base: Uncoated, Housing, solid top and sides Door(s) Door hinged on the right, may be swapped to the left Rear panel, detachable Mounting panel Base, gland plate(s) Lock: 3 mm double-bit 2 punched rails, 18 x 39 mm, 800 mm, 600 mm, 31.5 in, 78.7 in, 23.6 in, IP 66, IK10, NEMA 4X, Type 1 | Type 2 | Type 3 | Type 3X | Type 3R | Type 3RX | Type 4 | Type 4X | Type 12, 1, 94032080, 1 pc(s), 328.488 lbs, 4028177959392, Individual stainless steel enclosure with stable enclosure body, two integrated mounting levels, screw-fastened rear panel and door. Roof and sides from a single piece with roll-formed frame. Fully compatible with the VX25 baying system. Increases efficiency as side panels do not have to be mounted. High level of protection to IP 66/NEMA 4X.

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:
RITTAL
Width:
31.50 (in)
Height:
78.70 (in)
Depth:
23.60 (in)
Data Sheet:
Material:
Housing: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed Door: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed Rear panel: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed Mounting panel: Carbon steel, 3.0 mm Base:
Base Material:
Stainless steel 1.4301 (AISI 304)
Surface Finish:
Housing, rear panel and door: Brushed, grain 400 Mounting panel: Zinc-plated Base: Uncoated
Supply Includes:
Housing, solid top and sides Door(s) Door hinged on the right, may be swapped to the left Rear panel, detachable Mounting panel Base, gland plate(s) Lock: 3 mm double-bit 2 punched rails, 18 x 39 mm
Mounting Plate Dims:
699 mm x 1,896 mm ( 27.5 ? x 74.6 ? )
Number of Doors:
1
Width (mm):
800mm
Depth (mm):
600mm
Width (in):
31.5in
Height (in):
78.7in
Depth (in):
23.6in
IP Rating:
IP 66
IK Code:
IK10
NEMA Rating:
NEMA 4X
UL Type Rating:
Type 1 | Type 2 | Type 3 | Type 3X | Type 3R | Type 3RX | Type 4 | Type 4X | Type 12
Customs Tariff No:
94032080
Packaging Unit:
1 pc(s).
Net Weight (kg):
149.000
Net Weight (lb):
328.488
Gross Weight (kg):
153.000
Gross Weight (lb):
337.307
EAN:
4028177959392
ETIM 9:
EC000261
ECLASS 8.0:
27180101

Related Products

SE 5853600 | VX SE Free-standing enclosure system, WHD: 800x2000x600 mm, Stainless Steel, 1.4301, with mounting plate, single door at the frontImage_1
Quick view

RITTAL

SKU: SE 5853600

SE 5853600 | VX SE Free-standing enclosure system, WHD: 800x2000x600 mm, Stainless Steel, 1.4301, with mounting plate, single door at the front

Data Sheet: Data Sheet
Material: Housing: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed Door: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed Rear panel: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed Base plates: Stainless steel 1.4301 (AISI 3
Base Material: Stainless steel 1.4301 (AISI 304)
Surface Finish: Housing, door and rear panel: Brushed, grain 400 Base plates: Uncoated Mounting panel: Zinc-plated
Supply Includes: Housing, solid top and sides Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Rear panel, detachable Mounting panel Base Plates Lock: 3 mm double-bit 2 punched rails, 18 x 39 mm
Mounting Plate Dims: 699 mm x 1,896 mm ( 27.5 ? x 74.6 ? )
Number of Doors: 1
Width (mm): 800mm
Depth (mm): 600mm
Width (in): 31.5in
Height (in): 78.7in
Depth (in): 23.6in
IP Rating: IP 55
IK Code: IK10
NEMA Rating: NEMA 3R | NEMA 12
UL Type Rating: Type 1 | Type 2 | Type 3 | Type 3R | Type 12
Customs Tariff No: 94032080
Packaging Unit: 1 pc(s).
Net Weight (kg): 141.000
Net Weight (lb): 310.851
Gross Weight (kg): 143.600
Gross Weight (lb): 316.583
EAN: 4028177959385
ETIM 9: EC000261
ETIM 8: EC000261
ECLASS 8.0: 27180101
$8,290.78
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List

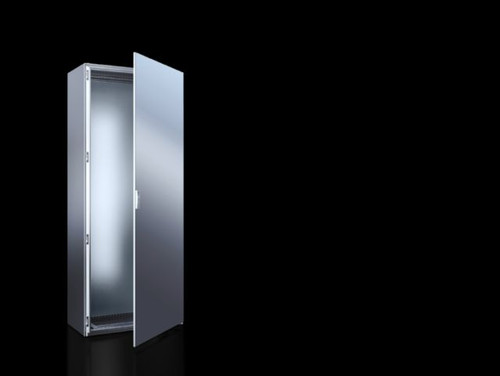

SE 5850680 | VX SE Free-standing enclosure system, 600x1600x400 mm, Stainless Steel, 1.4301 / IP 66 / NEMA 4X, with mounting plate, single door at the frontImage_1
