SK 3140510 | SK roof-mounted fan TopTherm, 629.2 cfm 115 V, 1~, 50/60 Hz, WHD: 400 x 133 x 400 mm, EC-Technology

RITTAL

No reviews yet Write a Review
SKU:
SK 3140510
$1,371.47
SK 3140510 | SK roof-mounted fan TopTherm, 629.2 cfm 115 V, 1~, 50/60 Hz, WHD: 400 x 133 x 400 mm, EC-TechnologyImage_1
Condition:
New
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
Shipping:
Calculated at Checkout
SK roof-mounted fan TopTherm, 629.2 cfm 115 V, 1~, 50/60 Hz, WHD: 400 x 133 x 400 mm, EC-Technology View full description
$1,371.47
15 people looking at this.

Description

Rittal SK 3140510

SK roof-mounted fan TopTherm, 629.2 cfm 115 V, 1~, 50/60 Hz, WHD: 400 x 133 x 400 mm, EC-Technology, Roof-Mounted Fans with EC technology, Carbon steel, RAL 7035, Complete unit ready to install, including pleated filter, 400 mm, 133 mm, 400 mm, 15.7 in, 5.24 in, 15.7 in, 115 V, 1~, 60 Hz, 60, IP 21 without filter mat | IP 54 including pleated filter, NEMA 12, 84145915, 1 pc(s), 11.684 lbs, 4028177805767, The new generation of roof-mounted fans (EC version) is one system for all sizes: only one mounting cut-out is needed for all output categories. Air routing with minimal pressure losses ensures a high level of efficiency, while an innovative clamping attachment supports a high protection category of IP54. The fan may be activated via the control interface with tacho signal output integrated as standard, and monitoring of the fan speed and function is supported.

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:
RITTAL
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
Data Sheet:
Material:
Carbon steel
Color:
RAL 7035
Supply Includes:
Complete unit ready to install, including pleated filter
Width (mm):
400mm
Height (mm):
133mm
Depth (mm):
400mm
Width (in):
15.7in
Height (in):
5.24in
Depth (in):
15.7in
Voltage (V):
115 V, 1~, 60 Hz
Rated Power (W):
60
IP Rating:
IP 21 without filter mat | IP 54 including pleated filter
NEMA Rating:
NEMA 12
Customs Tariff No:
84145915
Packaging Unit:
1 pc(s).
Net Weight (kg):
5.300
Net Weight (lb):
11.684
Gross Weight (kg):
6.000
Gross Weight (lb):
13.228
EAN:
4028177805767
ETIM 9:
EC000320
ETIM 8:
EC000320
ECLASS 8.0:
27180716

Related Products

SK 3140110 | SK Roof-mounted fan TopTherm, 567.98 cfm 115 V, 1~, 50/60 Hz, WHD: 400 x 133 x 400 mmImage_1
Quick view

RITTAL

SKU: SK 3140110

SK 3140110 | SK Roof-mounted fan TopTherm, 567.98 cfm 115 V, 1~, 50/60 Hz, WHD: 400 x 133 x 400 mm

Data Sheet: Data Sheet
Color: RAL 7035
Supply Includes: Complete unit ready to install, including pleated filter
Width (mm): 400mm
Height (mm): 133mm
Depth (mm): 400mm
Width (in): 15.7in
Height (in): 5.24in
Depth (in): 15.7in
Voltage (V): 115 V, 1~, 60 Hz
Rated Power (W): 60
IP Rating: IP 21 without filter mat | IP 54 including pleated filter
NEMA Rating: NEMA 12
Customs Tariff No: 84145915
Packaging Unit: 1 pc(s).
Net Weight (kg): 5.700
Net Weight (lb): 12.566
Gross Weight (kg): 6.000
Gross Weight (lb): 13.228
EAN: 4028177709157
ETIM 9: EC000320
ETIM 8: EC000320
ECLASS 8.0: 27180716
$1,055.87
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List

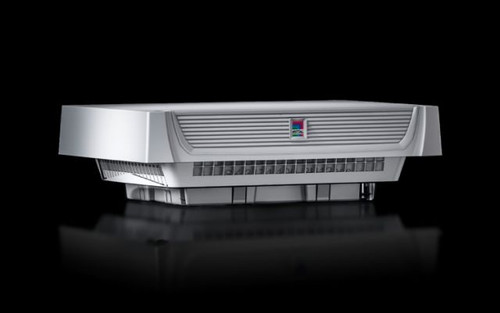

SK 3139110 | SK Roof-mounted fan TopTherm, 309 cfm 115 V, 1~, 50/60 Hz, WHD: 400 x 133 x 400 mmImage_1
