Description

Rittal SK 3235460

Name: SK 3235460 | SK EC speed controller, for Blue e+ EC filter fans, 100-250 V, 50 Hz/60 Hz
Brand: RITTAL
SKU: SK 3235460
Availability: OutOfStock

SK EC speed controller, for Blue e+ EC filter fans, 100-250 V, 50 Hz/60 Hz, EC speed control Control unit for EC fans, Speed Control NTC sensor, length 1.80 m, 100 V 250 V, 50 Hz/60 Hz, 90328900, 1 pc(s), 1.014 lbs, , Temperature-dependent speed control for EC- filter fan for noise reduction and energy conservation .

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:

RITTAL

Width:

1.00 (in)

Height:

1.00 (in)

Depth:

1.00 (in)

Data Sheet:

Supply Includes:

Speed Control NTC sensor, length 1.80 m

Voltage (V):

100 V 250 V, 50 Hz/60 Hz

Customs Tariff No:

90328900

Packaging Unit:

1 pc(s).

Net Weight (kg):

0.460

Net Weight (lb):

1.014

Gross Weight (kg):

0.505

Gross Weight (lb):

1.113

ETIM 9:

EC000256

ECLASS 8.0:

27142320

SK 3235440 | SK EC speed controller, control unit for EC fans, 100-250 V, 50 Hz/60 Hz

Data Sheet: Data Sheet

Supply Includes: Speed Control NTC sensor, length 1.80 m

Voltage (V): 100 V 250 V, 50 Hz/60 Hz

Customs Tariff No: 90328900

Packaging Unit: 1 pc(s).

Net Weight (kg): 0.450

Net Weight (lb): 0.992

Gross Weight (kg): 0.510

Gross Weight (lb): 1.124

EAN: 4028177670716

ETIM 9: EC000256

ETIM 8: EC000256

ECLASS 8.0: 27142320

$1,120.56

Please Call/Email for Stock Availability (864)-458-9988

SK 3245900 | SK Blue e+ filter fan, EC technology, 1161 m³/h, 100 V - 240 V, 1~, 50 Hz/60 Hz, WHD: 323 x 323 x 161 mm, RAL 7035Image_1 — Quick view

RITTAL

SKU: SK 3245900

SK 3245900 | SK Blue e+ filter fan, EC technology, 1161 m³/h, 100 V - 240 V, 1~, 50 Hz/60 Hz, WHD: 323 x 323 x 161 mm, RAL 7035

Data Sheet: Data Sheet

Material: Plastic

Color: RAL 7035

Supply Includes: Complete unit ready to install, including pleated filter

Width (mm): 323mm

Height (mm): 323mm

Depth (mm): 161mm

Width (in): 12.7in

Height (in): 12.7in

Depth (in): 6.34in

Voltage (V): 200 V - 240 V, 1~, 50 Hz/60 Hz

Rated Power (W): 50

IP Rating: IP 51 with chopped fiber filter/pleated filter | IP52 with pleated filter and absorber mat | IP 56 with chopped fiber filter/pleated filter and hose-proof hood

NEMA Rating: Type 1, 12 with chopped fiber filter/pleated filter | Type 3, 3R with chopped fiber filter/pleated filter and hose-proof hood

Customs Tariff No: 84145915

Packaging Unit: 1 pc(s).

Net Weight (kg): 4.040

Net Weight (lb): 8.907

Gross Weight (kg): 4.241

Gross Weight (lb): 9.350

EAN: 4028177997813

ETIM 9: EC000320

ETIM 8: EC000320

ECLASS 8.0: 27180716

$915.65

Please Call/Email for Stock Availability (864)-458-9988

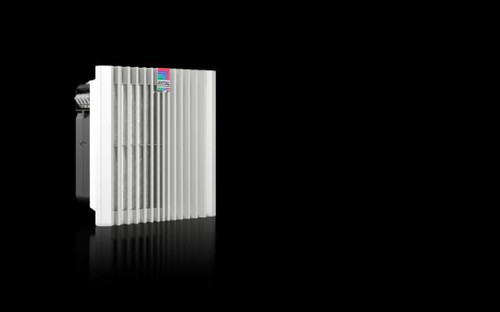

SK 3240900 | SK Blue e+ filter fan, EC technology, 218 m³/h, 100 V - 240 V, 1~, 50 Hz/60 Hz, WHD: 255 x 255 x 137.5 mm, RAL 7035Image_1 — Quick view

RITTAL

SKU: SK 3240900

SK 3240900 | SK Blue e+ filter fan, EC technology, 218 m³/h, 100 V - 240 V, 1~, 50 Hz/60 Hz, WHD: 255 x 255 x 137.5 mm, RAL 7035

Data Sheet: Data Sheet

Material: Plastic

Color: RAL 7035

Supply Includes: Complete unit ready to install, including pleated filter

Width (mm): 255mm

Height (mm): 255mm

Depth (mm): 137.5mm

Width (in): 10in

Height (in): 10in

Depth (in): 5.41in

Voltage (V): 100 V - 240 V, 1~, 50 Hz/60 Hz

Rated Power (W): 50

IP Rating: IP 54 with chopped fiber filter/pleated filter | IP 55 with pleated filter and absorber mat | IP 56 with chopped fiber filter/pleated filter and hose-proof hood

NEMA Rating: Type 12 with chopped fiber filter/pleated filter | Type 3, 3R, 4, 4X with chopped fiber filter/pleated filter and hose-proof hood

Customs Tariff No: 84145915

Packaging Unit: 1 pc(s).

Net Weight (kg): 2.100

Net Weight (lb): 4.630

Gross Weight (kg): 2.324

Gross Weight (lb): 5.124

EAN: 4028177998070

ETIM 9: EC000320

ETIM 8: EC000320

ECLASS 8.0: 27180716

$469.62

Please Call/Email for Stock Availability (864)-458-9988

SK 3245910 | SK Blue e+ filter fan, EC technology, 1161 m³/h, 100 V - 130 V, 1~, 50 Hz/60 Hz, WHD: 323 x 323 x 156.5 mm, RAL 7035Image_1 — Quick view

RITTAL

SKU: SK 3245910

SK 3245910 | SK Blue e+ filter fan, EC technology, 1161 m³/h, 100 V - 130 V, 1~, 50 Hz/60 Hz, WHD: 323 x 323 x 156.5 mm, RAL 7035

Data Sheet: Data Sheet

Material: Plastic

Color: RAL 7035

Supply Includes: Complete unit ready to install, including pleated filter

Width (mm): 323mm

Height (mm): 323mm

Depth (mm): 156mm

Width (in): 12.7in

Height (in): 12.7in

Depth (in): 6.14in

Voltage (V): 100 V - 130 V, 1~, 50 Hz/60 Hz

Rated Power (W): 50

IP Rating: IP 51 with chopped fiber filter/pleated filter | IP52 with pleated filter and absorber mat | IP 56 with chopped fiber filter/pleated filter and hose-proof hood

NEMA Rating: Type 1, 12 with chopped fiber filter/pleated filter | Type 3, 3R with chopped fiber filter/pleated filter and hose-proof hood

Customs Tariff No: 84145915

Packaging Unit: 1 pc(s).

Net Weight (kg): 4.170

Net Weight (lb): 9.193

Gross Weight (kg): 4.180

Gross Weight (lb): 9.215

EAN: 4028177997790

ETIM 9: EC000320

ETIM 8: EC000320

ECLASS 8.0: 27180716

$915.65

Please Call/Email for Stock Availability (864)-458-9988

SK 3244900 | SK Blue e+ filter fan, EC technology, 867 m³/h, 100 V - 240 V, 1~, 50 Hz/60 Hz, WHD: 323 x 323 x 161 mm, RAL 7035Image_1 — Quick view

RITTAL

SKU: SK 3244900

SK 3244900 | SK Blue e+ filter fan, EC technology, 867 m³/h, 100 V - 240 V, 1~, 50 Hz/60 Hz, WHD: 323 x 323 x 161 mm, RAL 7035

Data Sheet: Data Sheet

Material: Plastic

Color: RAL 7035

Supply Includes: Complete unit ready to install, including pleated filter

Width (mm): 323mm

Height (mm): 323mm

Depth (mm): 161mm

Width (in): 12.7in

Height (in): 12.7in

Depth (in): 6.34in

Voltage (V): 100 V - 240 V, 1~, 50 Hz/60 Hz

Rated Power (W): 50

IP Rating: IP 54 with chopped fiber filter/pleated filter | IP 55 with pleated filter and absorber mat | IP 56 with chopped fiber filter/pleated filter and hose-proof hood

NEMA Rating: Type 12 with chopped fiber filter/pleated filter | Type 3, 3R, 4, 4X with chopped fiber filter/pleated filter and hose-proof hood

Customs Tariff No: 84145915

Packaging Unit: 1 pc(s).

Net Weight (kg): 4.150

Net Weight (lb): 9.149

Gross Weight (kg): 4.248

Gross Weight (lb): 9.365

EAN: 4028177997844

ETIM 9: EC000320

ETIM 8: EC000320

ECLASS 8.0: 27180716

$644.42

Please Call/Email for Stock Availability (864)-458-9988

SK 3235460 | SK EC speed controller, for Blue e+ EC filter fans, 100-250 V, 50 Hz/60 Hz

RITTAL
