SK 3238724 | SK Blue e+ filter fan, 63 m³/h, 24 V (DC), WHD 148.5 x 148.5 x 82.5 mm, RAL 7035

RITTAL

No reviews yet Write a Review
SKU:
SK 3238724
$294.50
SK 3238724 | SK Blue e+ filter fan, 63 m³/h, 24 V (DC), WHD 148.5 x 148.5 x 82.5 mm, RAL 7035Image_1
Condition:
New
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
Shipping:
Calculated at Checkout
SK Blue e+ filter fan, 63 m³/h, 24 V (DC), WHD 148.5 x 148.5 x 82.5 mm, RAL 7035 View full description
$294.50

Description

Rittal SK 3238724

SK Blue e+ filter fan, 63 m³/h, 24 V (DC), WHD 148.5 x 148.5 x 82.5 mm, RAL 7035, Blue e+ filter fan, Plastic, RAL 7035, Complete unit ready to install, including pleated filter, 148.5 mm, 148.5 mm, 82.5 mm, 5.85 in, 5.85 in, 3.25 in, 24 V (DC), 5.7, IP 54 with chopped fiber filter/pleated filter | IP 55 with pleated filter and absorber mat | IP 56 with chopped fiber filter/pleated filter and hose-proof hood, Type 12 with chopped fiber filter/pleated filter | Type 3, 3R, 4, 4X with chopped fiber filter/pleated filter and hose-proof hood, 84145915, 1 pc(s), 0.992 lbs, 4028177998223, Complete fan unit for tool-free mounting on surfaces. Air throughput from 11 - 682.75 cfm, protection category IP 54 as standard.

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:
RITTAL
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
Data Sheet:
Material:
Plastic
Color:
RAL 7035
Supply Includes:
Complete unit ready to install, including pleated filter
Width (mm):
148.5mm
Height (mm):
148.5mm
Depth (mm):
82.5mm
Width (in):
5.85in
Height (in):
5.85in
Depth (in):
3.25in
Voltage (V):
24 V (DC)
Rated Power (W):
5.7
IP Rating:
IP 54 with chopped fiber filter/pleated filter | IP 55 with pleated filter and absorber mat | IP 56 with chopped fiber filter/pleated filter and hose-proof hood
NEMA Rating:
Type 12 with chopped fiber filter/pleated filter | Type 3, 3R, 4, 4X with chopped fiber filter/pleated filter and hose-proof hood
Customs Tariff No:
84145915
Packaging Unit:
1 pc(s).
Net Weight (kg):
0.450
Net Weight (lb):
0.992
Gross Weight (kg):
0.607
Gross Weight (lb):
1.338
EAN:
4028177998223
ETIM 9:
EC000320
ETIM 8:
EC000320
ECLASS 8.0:
27180716

Related Products

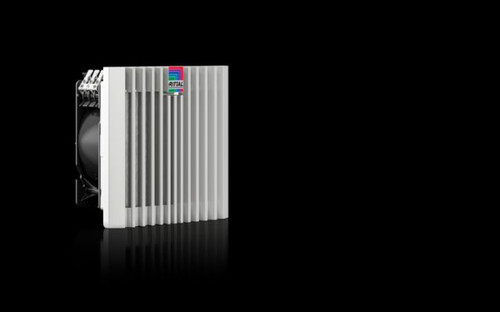

SK 3238710 | SK Blue e+ filter fan, 63/72 m³/h, 115 V, 1~, 50 Hz/60 Hz, WHD 148.5 x 148.5 x 82.5 mm, RAL 7035Image_1
