SK 3239208 | SK outlet filter, standard, WHD: 204 x 204 x 24 mm

RITTAL

No reviews yet Write a Review
SKU:
SK 3239208
$97.28
SK 3239208 | SK outlet filter, standard, WHD: 204 x 204 x 24 mmImage_1
Condition:
New
Width:
8.03 (in)
Height:
8.03 (in)
Depth:
0.94 (in)
Shipping:
Calculated at Checkout
SK outlet filter, standard, WHD: 204 x 204 x 24 mm View full description
$97.28

Description

Rittal SK 3239208

SK outlet filter, standard, WHD: 204 x 204 x 24 mm, Outlet Filters Standard, ABS, RAL 9005, Outlet Filters Chopped fiber filter mat, 204 mm, 204 mm, 24 mm, 8.03 in, 8.03 in, 0.94 in, IP 54 with chopped fiber filter/pleated filter | IP 55 with pleated filter and absorber mat | IP 56 with chopped fiber filter/pleated filter and hose-proof hood, Type 12 with chopped fiber filter/pleated filter | Type 3 | Type 3R | Type 4 | Type 4X with chopped fiber filter/pleated filter and hose-proof hood, 39269097, 1 pc(s), 0.661 lbs, 4028177663497, For ventilation by convection, an outlet filter can be installed in the upper and lower sections of the enclosure.

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:
RITTAL
Width:
8.03 (in)
Height:
8.03 (in)
Depth:
0.94 (in)
Data Sheet:
Material:
ABS
Color:
RAL 9005
Supply Includes:
Outlet Filters Chopped fiber filter mat
Width (mm):
204mm
Height (mm):
204mm
Depth (mm):
24mm
Width (in):
8.03in
Height (in):
8.03in
Depth (in):
0.94in
IP Rating:
IP 54 with chopped fiber filter/pleated filter | IP 55 with pleated filter and absorber mat | IP 56 with chopped fiber filter/pleated filter and hose-proof hood
NEMA Rating:
Type 12 with chopped fiber filter/pleated filter | Type 3 | Type 3R | Type 4 | Type 4X with chopped fiber filter/pleated filter and hose-proof hood
Customs Tariff No:
39269097
Packaging Unit:
1 pc(s).
Net Weight (kg):
0.300
Net Weight (lb):
0.661
Gross Weight (kg):
0.400
Gross Weight (lb):
0.882
EAN:
4028177663497
ETIM 9:
EC002513
ETIM 8:
EC002513
ECLASS 8.0:
27180706

Related Products

SK 3239060 | SK outlet filter, EMC, WHD: 204 x 204 x 24 mmImage_1
Quick view

RITTAL

SKU: SK 3239060

SK 3239060 | SK outlet filter, EMC, WHD: 204 x 204 x 24 mm

Data Sheet: Data Sheet
Material: ABS
Color: RAL 7035
Supply Includes: Outlet Filters EMC Filter Mat
Width (mm): 204mm
Height (mm): 204mm
Depth (mm): 24mm
Width (in): 8.03in
Height (in): 8.03in
Depth (in): 0.94in
IP Rating: IP54 incl. EMC filter mat | IP 56 with EMC filter mat and hose-proof hood
Customs Tariff No: 39269097
Packaging Unit: 1 pc(s).
Net Weight (kg): 0.400
Net Weight (lb): 0.882
Gross Weight (kg): 0.413
Gross Weight (lb): 0.911
EAN: 4028177651784
ETIM 9: EC002513
ETIM 8: EC002513
ECLASS 8.0: 27180706
$314.42
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
SK 3238200 | SK outlet filter, Standard, WHD: 148.5 x 148.5 x 24 mmImage_1
Quick view

RITTAL

SKU: SK 3238200

SK 3238200 | SK outlet filter, Standard, WHD: 148.5 x 148.5 x 24 mm

Data Sheet: Data Sheet
Material: ABS
Color: RAL 7035
Supply Includes: Outlet Filters Chopped fiber filter mat
Width (mm): 148.5mm
Height (mm): 148.5mm
Depth (mm): 24mm
Width (in): 5.85in
Height (in): 5.85in
Depth (in): 0.94in
IP Rating: IP 54 with chopped fiber filter/pleated filter | IP 55 with pleated filter and absorber mat | IP 56 with chopped fiber filter/pleated filter and hose-proof hood
NEMA Rating: Type 1 with pleated filter | Type 12 with fleece filter | Type 3 | Type 3R | Type 4 | Type 4X with chopped fiber filter/pleated filter and hose-proof hood
Customs Tariff No: 39269097
Packaging Unit: 1 pc(s).
Net Weight (kg): 0.170
Net Weight (lb): 0.375
Gross Weight (kg): 0.180
Gross Weight (lb): 0.397
EAN: 4028177651739
ETIM 9: EC002513
ETIM 8: EC002513
ECLASS 8.0: 27180706
$72.93
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
SK 3238208 | SK outlet filter, standard, WHD: 148.5 x 148.5 x 24 mmImage_1
Quick view

RITTAL

SKU: SK 3238208

SK 3238208 | SK outlet filter, standard, WHD: 148.5 x 148.5 x 24 mm

Data Sheet: Data Sheet
Material: ABS
Color: RAL 9005
Supply Includes: Outlet Filters Chopped fiber filter mat
Width (mm): 148.5mm
Height (mm): 148.5mm
Depth (mm): 24mm
Width (in): 5.85in
Height (in): 5.85in
Depth (in): 0.94in
IP Rating: IP 54 with chopped fiber filter/pleated filter | IP 55 with pleated filter and absorber mat | IP 56 with chopped fiber filter/pleated filter and hose-proof hood
NEMA Rating: Type 1 with pleated filter | Type 12 with fleece filter | Type 3 | Type 3R | Type 4 | Type 4X with chopped fiber filter/pleated filter and hose-proof hood
Customs Tariff No: 39269097
Packaging Unit: 1 pc(s).
Net Weight (kg): 0.170
Net Weight (lb): 0.375
Gross Weight (kg): 0.180
Gross Weight (lb): 0.397
EAN: 4028177663466
ETIM 9: EC002513
ETIM 8: EC002513
ECLASS 8.0: 27180706
$87.85
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List

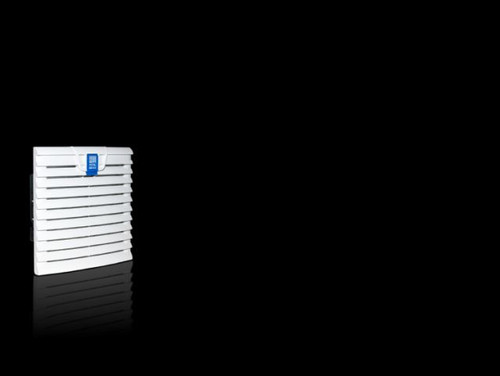

SK 3239124 | SK Fan-and-filter unit TopTherm, 58.9 cfm 24 V (DC), WHD: 204 x 204 x 24 mmImage_1
