SV 9677900 | SV connection adapter, 800 A, 690 V, 3-pole, 185 mm, cable outlet top/bottom, round conductor connection 6-240 mm²

RITTAL

No reviews yet Write a Review
SKU:
SV 9677900
$976.43
SV 9677900 | SV connection adapter, 800 A, 690 V, 3-pole, 185 mm, cable outlet top/bottom, round conductor connection 6-240 mm²Image_1
Condition:
New
Width:
3.94 (in)
Height:
26.20 (in)
Depth:
1.00 (in)
Shipping:
Calculated at Checkout
SV connection adapter, 800 A, 690 V, 3-pole, 185 mm, cable outlet top/bottom, round conductor connection 6-240 mm² View full description
$976.43
14 people looking at this.

Description

Rittal SV 9677900

SV connection adapter, 800 A, 690 V, 3-pole, 185 mm, cable outlet top/bottom, round conductor connection 6-240 mm², Connection Adapters, Chassis: Fiberglass-reinforced polyester Fire protection corresponding to UL 94-V0, RAL 7035, 100 mm, 665 mm, 3.94 in, 26.2 in, 690 V, 3~, 85369010, 1 pc(s), 9.921 lbs, 4028177705289, For connecting round conductors. For busbar systems with 185 mm center-to-center distance.

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:
RITTAL
Width:
3.94 (in)
Height:
26.20 (in)
Depth:
1.00 (in)
Data Sheet:
Material:
Chassis: Fiberglass-reinforced polyester Fire protection corresponding to UL 94-V0
Color:
RAL 7035
Width (mm):
100mm
Height (mm):
665mm
Width (in):
3.94in
Height (in):
26.2in
Voltage (V):
690 V, 3~
Customs Tariff No:
85369010
Packaging Unit:
1 pc(s).
Net Weight (kg):
4.500
Net Weight (lb):
9.921
Gross Weight (kg):
5.000
Gross Weight (lb):
11.023
EAN:
4028177705289
ETIM 9:
EC001531
ECLASS 8.0:
27370304

Related Products

SV 9677905 | SV Connection adaptor, 1400 A, 690 V, 3-pole, 185 mm, cable outet bottom, round conductor connection 6-300 mm²Image_1
Quick view

RITTAL

SKU: SV 9677905

SV 9677905 | SV Connection adaptor, 1400 A, 690 V, 3-pole, 185 mm, cable outet bottom, round conductor connection 6-300 mm²

Data Sheet: Data Sheet
Material: Chassis: Fiberglass-reinforced polyester Fire protection corresponding to UL 94-V0
Color: RAL 7035
Supply Includes: Contact hazard protection cover
Width (mm): 100mm
Height (mm): 960mm
Width (in): 3.94in
Height (in): 37.8in
Voltage (V): 690 V, 3~
Customs Tariff No: 85369010
Packaging Unit: 1 pc(s).
Net Weight (kg): 11.000
Net Weight (lb): 24.251
Gross Weight (kg): 11.500
Gross Weight (lb): 25.353
EAN: 4028177705296
ETIM 9: EC001531
ECLASS 8.0: 27370304
$4,247.00
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List

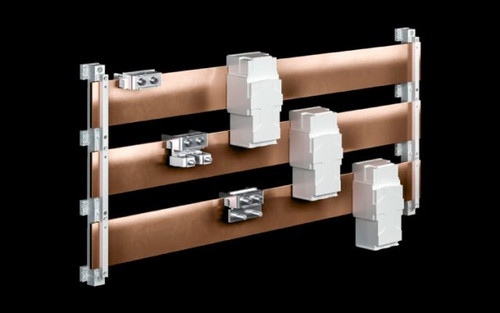

SV 9677920 | SV Connection block, 1600 A, 690 V, 1-pole, cable outet top/bottom, round conductor connection 240 mm²Image_1
