  • TS 8006530 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on

TS 8006530 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on

RITTAL

No reviews yet Write a Review
SKU:
TS 8006530
$2,671.28

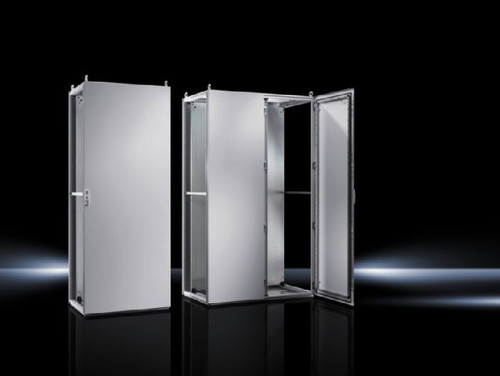

TS 8006530 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on Image_1
Condition:
New
Width:
39.40 (in)
Height:
78.70 (in)
Depth:
23.60 (in)
Shipping:
Calculated at Checkout
Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on all sides. In View full description
$2,671.28
7 people looking at this.

Description

Rittal TS 8006530

, Baying systems TS 8, Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm, Carbon steel, Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint, RAL 7035, Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Gland plate Mounting plate 2 TS punched rails, 18 x 38 mm, 600 mm, 39.4 in, 78.7 in, 23.6 in, IP 55, IK09, NEMA 1 | NEMA 12, Type 1 | Type 12, 1, 9403200082, 1 pc(s), 744.302 lbs, 4028177418844, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on all sides. In addition, the integrated, automatic potential equalization of all enclosure panels and the triple machining of the surface ensures maximum safety.

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:
RITTAL
Width:
39.40 (in)
Height:
78.70 (in)
Depth:
23.60 (in)
Data Sheet:
Material:
Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm
Base Material:
Carbon steel
Surface Finish:
Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint
Color:
RAL 7035
Supply Includes:
Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Gland plate Mounting plate 2 TS punched rails, 18 x 38 mm
Number of Doors:
1
Depth (mm):
600mm
Width (in):
39.4in
Height (in):
78.7in
Depth (in):
23.6in
IP Rating:
IP 55
IK Code:
IK09
NEMA Rating:
NEMA 1 | NEMA 12
UL Type Rating:
Type 1 | Type 12
Customs Tariff No:
9403200082
Packaging Unit:
1 pc(s).
Net Weight (kg):
337.610
Net Weight (lb):
744.302
Gross Weight (kg):
355.379
Gross Weight (lb):
783.476
UPC Code:
37964
EAN:
4028177418844
ECLASS 8.0:
27180101
