Description

Rittal WM 8017585

Name: WM 8017585 | These flange mount disconnect wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include
Brand: RITTAL
SKU: WM 8017585
Price: 1517.98 USD
Availability: InStock

These flange mount disconnect wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include a cold rolled steel body and door, and a zinc plated mounting panel., WM wall-mounted disconnect enclosure, 3 mm (0.12 in), 730 mm x 1,020 mm ( 28.7 ? x 40.2 ? ), Door: Carbon steel, 2.0 mm, all-round foamed-in PU seal Housing: Carbon steel Mounting plate: Carbon steel, zinc-plated, Dipcoat-primed and powder-coated, textured paint, RAL 7035, Housing with door(s) Door hinged on left Mounting plate Rear wall mounting holes Flange door with universal disconnect cutout 3-point latching L-Handle, 2 mm (0.08 in), 2 mm (0.08 in), 825 mm, 300 mm, 32.5 in, 41.3 in, 11.8 in, NEMA 4 | UL Type 4/3R/12, 8538100000, 1 pc(s), 354.801 lbs, , These flange mount disconnect wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include a cold rolled steel body and door, and a zinc plated mounting panel.

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:

RITTAL

Width:

32.50 (in)

Height:

41.30 (in)

Depth:

11.80 (in)

Data Sheet:

Material:

Door: Carbon steel, 2.0 mm, all-round foamed-in PU seal Housing: Carbon steel Mounting plate: Carbon steel, zinc-plated

Surface Finish:

Dipcoat-primed and powder-coated, textured paint

Color:

RAL 7035

Supply Includes:

Housing with door(s) Door hinged on left Mounting plate Rear wall mounting holes Flange door with universal disconnect cutout 3-point latching L-Handle

Mat Thick - Door:

2 mm (0.08 in)

Mat Thick - Enclosure:

2 mm (0.08 in)

Mat Thick - Mtg Plate:

3 mm (0.12 in)

Mounting Plate Dims:

730 mm x 1,020 mm ( 28.7 ? x 40.2 ? )

Width (mm):

825mm

Depth (mm):

300mm

Width (in):

32.5in

Height (in):

41.3in

Depth (in):

11.8in

NEMA Rating:

NEMA 4 | UL Type 4/3R/12

Customs Tariff No:

8538100000

Packaging Unit:

1 pc(s).

Net Weight (kg):

160.935

Net Weight (lb):

354.801

Gross Weight (kg):

162.000

Gross Weight (lb):

357.148

UPC Code:

83162

WM 8018979 | These flange mount disconnect wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include

Data Sheet: Data Sheet

Material: Door: Carbon steel, 2.0 mm, all-round foamed-in PU seal Housing: Carbon steel Mounting plate: Carbon steel, zinc-plated

Surface Finish: Dipcoat-primed and powder-coated, textured paint

Color: RAL 7035

Supply Includes: Housing with door(s) Door hinged on left Mounting plate Rear wall mounting holes Flange door with universal disconnect cutout

Mat Thick - Door: 2 mm (0.08 in)

Mat Thick - Enclosure: 2 mm (0.08 in)

Mat Thick - Mtg Plate: 3 mm (0.12 in)

Mounting Plate Dims: 549 mm x 730 mm ( 21.6 ? x 28.7 ? )

Width (mm): 650mm

Height (mm): 760mm

Depth (mm): 300mm

Width (in): 25.6in

Height (in): 29.9in

Depth (in): 11.8in

NEMA Rating: NEMA 4 | UL Type 4/3R/12

Customs Tariff No: 7326909099

Packaging Unit: 1 pc(s).

Net Weight (kg): 50.000

Net Weight (lb): 110.231

Gross Weight (kg): 50.000

Gross Weight (lb): 110.231

UPC Code: 85756

$1,008.70

Please Call/Email for Stock Availability (864)-458-9988

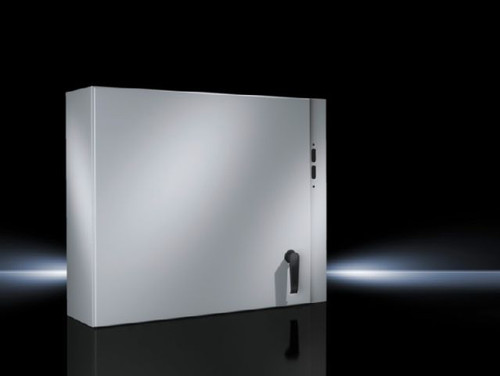

WM 8017592 | These flange mount disconnect wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features includeImage_1 — Quick view

RITTAL

SKU: WM 8017592

WM 8017592 | These flange mount disconnect wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include

Data Sheet: Data Sheet

Material: Door: Carbon steel, 2.0 mm, all-round foamed-in PU seal Housing: Carbon steel Mounting plate: Carbon steel, zinc-plated

Surface Finish: Dipcoat-primed and powder-coated, textured paint

Color: RAL 7035

Supply Includes: Housing with door(s) Door hinged on left Mounting plate Rear wall mounting holes Flange door with universal disconnect cutout

Mat Thick - Door: 2 mm (0.08 in)

Mat Thick - Enclosure: 2 mm (0.08 in)

Mat Thick - Mtg Plate: 3 mm (0.12 in)

Mounting Plate Dims: 840 mm x 1,455 mm ( 33.1 ? x 57.3 ? )

Width (mm): 975mm

Depth (mm): 300mm

Width (in): 38.4in

Height (in): 59.1in

Depth (in): 11.8in

NEMA Rating: NEMA 4 | UL Type 4/3R/12

Customs Tariff No: 8538100000

Packaging Unit: 1 Pair

Net Weight (kg): 218.997

Net Weight (lb): 482.805

Gross Weight (kg): 218.997

Gross Weight (lb): 482.805

UPC Code: 83169

$1,975.82

Please Call/Email for Stock Availability (864)-458-9988

WM 8017568 | These flange mount disconnect wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features includeImage_1 — Quick view

RITTAL

SKU: WM 8017568

WM 8017568 | These flange mount disconnect wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include

Data Sheet: Data Sheet

Material: Door: Carbon steel, 2.0 mm, all-round foamed-in PU seal Housing: Carbon steel Mounting plate: Carbon steel, zinc-plated

Surface Finish: Dipcoat-primed and powder-coated, textured paint

Color: RAL 7035

Supply Includes: Housing with door(s) Door hinged on left Mounting plate Rear wall mounting holes Flange door with universal disconnect cutout 2-point latching L-Handle

Mat Thick - Door: 2 mm (0.08 in)

Mat Thick - Enclosure: 2 mm (0.08 in)

Mat Thick - Mtg Plate: 3 mm (0.12 in)

Mounting Plate Dims: 704 mm x 870 mm ( 27.7 ? x 34.3 ? )

Width (mm): 825mm

Height (mm): 900mm

Depth (mm): 250mm

Width (in): 32.5in

Height (in): 35.4in

Depth (in): 9.84in

NEMA Rating: NEMA 4 | UL Type 4/3R/12

Customs Tariff No: 8538100000

Packaging Unit: 1 pc(s).

Net Weight (kg): 132.000

Net Weight (lb): 291.010

Gross Weight (kg): 132.275

Gross Weight (lb): 291.616

UPC Code: 83147

$1,319.46

Please Call/Email for Stock Availability (864)-458-9988

WM 8017596 | These flange mount disconnect wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features includeImage_1 — Quick view

RITTAL

SKU: WM 8017596

WM 8017596 | These flange mount disconnect wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include

Data Sheet: Data Sheet

Material: Door: Carbon steel, 2.0 mm, all-round foamed-in PU seal Housing: Carbon steel Mounting plate: Carbon steel, zinc-plated

Surface Finish: Dipcoat-primed and powder-coated, textured paint

Color: RAL 7035

Supply Includes: Housing with door(s) Door hinged on left Mounting plate Rear wall mounting holes Flange door with universal disconnect cutout 3-point latching L-Handle

Mat Thick - Door: 2 mm (0.08 in)

Mat Thick - Enclosure: 2 mm (0.08 in)

Mat Thick - Mtg Plate: 3 mm (0.12 in)

Mounting Plate Dims: 840 mm x 1,155 mm ( 33.1 ? x 45.5 ? )

Width (mm): 975mm

Depth (mm): 400mm

Width (in): 38.4in

Height (in): 47.2in

Depth (in): 15.7in

NEMA Rating: NEMA 4 | UL Type 4/3R/12

Customs Tariff No: 8538100000

Packaging Unit: 1 pc(s).

Net Weight (kg): 211.640

Net Weight (lb): 466.586

Gross Weight (kg): 212.000

Gross Weight (lb): 467.379

UPC Code: 83173

$1,846.97

Please Call/Email for Stock Availability (864)-458-9988

WM 8017580 | These flange mount disconnect wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features includeImage_1 — Quick view

RITTAL

SKU: WM 8017580

WM 8017580 | These flange mount disconnect wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include

Data Sheet: Data Sheet

Material: Door: Carbon steel, 2.0 mm, all-round foamed-in PU seal Housing: Carbon steel Mounting plate: Carbon steel, zinc-plated

Surface Finish: Dipcoat-primed and powder-coated, textured paint

Color: RAL 7035

Supply Includes: Housing with door(s) Door hinged on left Mounting plate Rear wall mounting holes Flange door with universal disconnect cutout 2-point latching L-Handle

Mat Thick - Door: 2 mm (0.08 in)

Mat Thick - Enclosure: 2 mm (0.08 in)

Mat Thick - Mtg Plate: 3 mm (0.12 in)

Mounting Plate Dims: 704 mm x 870 mm ( 27.7 ? x 34.3 ? )

Width (mm): 825mm

Height (mm): 900mm

Depth (mm): 300mm

Width (in): 32.5in

Height (in): 35.4in

Depth (in): 11.8in

NEMA Rating: NEMA 4 | UL Type 4/3R/12

Packaging Unit: 1 pc(s).

$1,353.97

Please Call/Email for Stock Availability (864)-458-9988
