RITTAL
SKU: SK 3214700

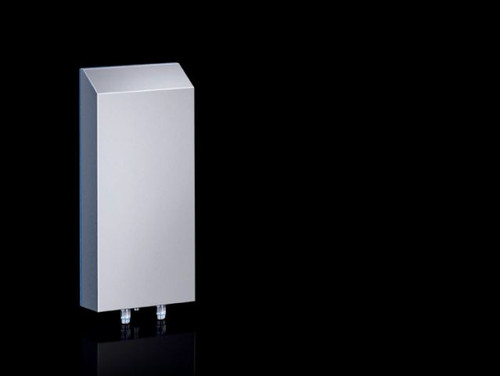

SK 3214700 | SK Air/water heat exchanger, wall-mounted, 2047 BTU/h 230 V, 1~, 50/60 Hz, Thermostat-controlled magnetic valve, WHD: 220 x 526 x 100 mm
Data Sheet: Data SheetMaterial: Housing: Stainless steel 1.4301 (AISI 304)Surface Finish: Housing: Brushed, grain 400, peak-to-valley height < 0.8 µmSupply Includes: Wired ready for connection Drilling template Sealing and assembly componentsWidth (mm): 220mmHeight (mm): 526mmDepth (mm): 100mmWidth (in): 8.66inHeight (in): 20.7inDepth (in): 3.94inCooling Output (W): 35Voltage (V): 230 V, 1~, 50 Hz/60 HzRated Power (W): 50IP Rating: IP 56/59NEMA Rating: NEMA 4XCustoms Tariff No: 84158300Packaging Unit: 1 pc(s).Net Weight (kg): 6.000Net Weight (lb): 13.228Gross Weight (kg): 6.860Gross Weight (lb): 15.124EAN: 4028177806399ETIM 9: EC002515ETIM 8: EC002515ECLASS 8.0: 27180712$3,619.88Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SK 3215700
SK 3215700 | SK Air/water heat exchanger, wall-mounted, 4095 BTU/h 230 V, 1~, 50/60 Hz, Thermostat-controlled magnetic valve, WHD: 215 x 982 x 100 mm
Data Sheet: Data SheetMaterial: Housing: Stainless steel 1.4301 (AISI 304)Surface Finish: Housing: Brushed, grain 400, peak-to-valley height < 0.8 µmSupply Includes: Wired ready for connection Drilling template Sealing and assembly componentsWidth (mm): 215mmHeight (mm): 982mmDepth (mm): 100mmWidth (in): 8.46inHeight (in): 38.7inDepth (in): 3.94inCooling Output (W): 35Voltage (V): 230 V, 1~, 50 Hz/60 HzRated Power (W): 50IP Rating: IP 56/59NEMA Rating: NEMA 4XCustoms Tariff No: 84158300Packaging Unit: 1 pc(s).Net Weight (kg): 14.000Net Weight (lb): 30.865Gross Weight (kg): 14.000Gross Weight (lb): 30.865EAN: 4028177806405ETIM 9: EC002515ETIM 8: EC002515ECLASS 8.0: 27180712$5,025.28Please Call/Email for Stock Availability (864)-458-9988
