SK 3215700 | SK Air/water heat exchanger, wall-mounted, 4095 BTU/h 230 V, 1~, 50/60 Hz, Thermostat-controlled magnetic valve, WHD: 215 x 982 x 100 mm

RITTAL

No reviews yet Write a Review
SKU:
SK 3215700
$5,025.28
SK 3215700 | SK Air/water heat exchanger, wall-mounted, 4095 BTU/h 230 V, 1~, 50/60 Hz, Thermostat-controlled magnetic valve, WHD: 215 x 982 x 100 mmImage_1
Condition:
New
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
Shipping:
Calculated at Checkout
SK Air/water heat exchanger, wall-mounted, 4095 BTU/h 230 V, 1~, 50/60 Hz, Thermostat-controlled magnetic valve, WHD: 215 x 982 x 100 mm View full description
$5,025.28
9 people looking at this.

Description

Rittal SK 3215700

SK Air/water heat exchanger, wall-mounted, 4095 BTU/h 230 V, 1~, 50/60 Hz, Thermostat-controlled magnetic valve, WHD: 215 x 982 x 100 mm, Air-Water Heat Exchangers Wall-mounted HD, Housing: Stainless steel 1.4301 (AISI 304), Housing: Brushed, grain 400, peak-to-valley height < 0.8 µm, Wired ready for connection Drilling template Sealing and assembly components, 215 mm, 982 mm, 100 mm, 8.46 in, 38.7 in, 3.94 in, 35, 230 V, 1~, 50 Hz/60 Hz, 50, IP 56/59, NEMA 4X, 84158300, 1 pc(s), 30.865 lbs, 4028177806405, Air/water heat exchanger for production areas in the food and beverage industry where hygiene is important – the perfect addition to the Rittal Hygienic Design range. The easy-to-clean design reduces the risk of contamination and ensures food safety.

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:
RITTAL
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
Data Sheet:
Material:
Housing: Stainless steel 1.4301 (AISI 304)
Surface Finish:
Housing: Brushed, grain 400, peak-to-valley height < 0.8 µm
Supply Includes:
Wired ready for connection Drilling template Sealing and assembly components
Width (mm):
215mm
Height (mm):
982mm
Depth (mm):
100mm
Width (in):
8.46in
Height (in):
38.7in
Depth (in):
3.94in
Cooling Output (W):
35
Voltage (V):
230 V, 1~, 50 Hz/60 Hz
Rated Power (W):
50
IP Rating:
IP 56/59
NEMA Rating:
NEMA 4X
Customs Tariff No:
84158300
Packaging Unit:
1 pc(s).
Net Weight (kg):
14.000
Net Weight (lb):
30.865
Gross Weight (kg):
14.000
Gross Weight (lb):
30.865
EAN:
4028177806405
ETIM 9:
EC002515
ETIM 8:
EC002515
ECLASS 8.0:
27180712

Related Products

SK 3214700 | SK Air/water heat exchanger, wall-mounted, 2047 BTU/h 230 V, 1~, 50/60 Hz, Thermostat-controlled magnetic valve, WHD: 220 x 526 x 100 mmImage_1
Quick view

RITTAL

SKU: SK 3214700

SK 3214700 | SK Air/water heat exchanger, wall-mounted, 2047 BTU/h 230 V, 1~, 50/60 Hz, Thermostat-controlled magnetic valve, WHD: 220 x 526 x 100 mm

Data Sheet: Data Sheet
Material: Housing: Stainless steel 1.4301 (AISI 304)
Surface Finish: Housing: Brushed, grain 400, peak-to-valley height < 0.8 µm
Supply Includes: Wired ready for connection Drilling template Sealing and assembly components
Width (mm): 220mm
Height (mm): 526mm
Depth (mm): 100mm
Width (in): 8.66in
Height (in): 20.7in
Depth (in): 3.94in
Cooling Output (W): 35
Voltage (V): 230 V, 1~, 50 Hz/60 Hz
Rated Power (W): 50
IP Rating: IP 56/59
NEMA Rating: NEMA 4X
Customs Tariff No: 84158300
Packaging Unit: 1 pc(s).
Net Weight (kg): 6.000
Net Weight (lb): 13.228
Gross Weight (kg): 6.860
Gross Weight (lb): 15.124
EAN: 4028177806399
ETIM 9: EC002515
ETIM 8: EC002515
ECLASS 8.0: 27180712
$3,619.88
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
SK 3216480 | SK Air/water heat exchanger, wall-mounted, 15355/23885 BTU/h 400-480, 3~, 50/60 Hz, Thermostat-controlled magnetic valve, WHD: 450 x 1800 x 300 mmImage_1
Quick view

RITTAL

SKU: SK 3216480

SK 3216480 | SK Air/water heat exchanger, wall-mounted, 15355/23885 BTU/h 400-480, 3~, 50/60 Hz, Thermostat-controlled magnetic valve, WHD: 450 x 1800 x 300 mm

Data Sheet: Data Sheet
Material: Copper/brass (Cu/CuZn)
Color: RAL 7035
Supply Includes: Wired ready for connection (plug-in terminal strip) Sealing and assembly components
Width (mm): 450mm
Depth (mm): 300mm
Width (in): 17.7in
Height (in): 70.9in
Depth (in): 11.8in
Cooling Output (W): 35
Voltage (V): 400 V, 3~, 50 Hz | 480 V, 3~, 60 Hz
IP Rating: IP 55
Customs Tariff No: 84158300
Packaging Unit: 1 pc(s).
Net Weight (kg): 80.000
Net Weight (lb): 176.370
Gross Weight (kg): 90.000
Gross Weight (lb): 198.416
EAN: 4028177458642
ETIM 9: EC002515
ETIM 8: EC002515
ECLASS 8.0: 27180712
$10,504.21
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
SK 3215100 | SK Air/water heat exchanger, wall-mounted, 4265/4436 BTU/h 230 V, 1~, 50/60 Hz, Water-carrying parts: copper/brass , WHD: 200 x 950 x 100 mmImage_1
Quick view

RITTAL

SKU: SK 3215100

SK 3215100 | SK Air/water heat exchanger, wall-mounted, 4265/4436 BTU/h 230 V, 1~, 50/60 Hz, Water-carrying parts: copper/brass , WHD: 200 x 950 x 100 mm

Data Sheet: Data Sheet
Color: RAL 7035
Supply Includes: Wired ready for connection Drilling template Sealing and assembly components
Width (mm): 200mm
Height (mm): 950mm
Depth (mm): 100mm
Width (in): 7.87in
Height (in): 37.4in
Depth (in): 3.94in
Cooling Output (W): 35
Voltage (V): 230 V, 1~, 50 Hz/60 Hz
Rated Power (W): 50
IP Rating: IP 55
NEMA Rating: UL Type 1
Customs Tariff No: 84158300
Packaging Unit: 1 pc(s).
Net Weight (kg): 13.449
Net Weight (lb): 29.650
Gross Weight (kg): 14.157
Gross Weight (lb): 31.211
EAN: 4028177245358
ETIM 9: EC002515
ETIM 8: EC002515
ECLASS 8.0: 27180712
$2,576.69
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List

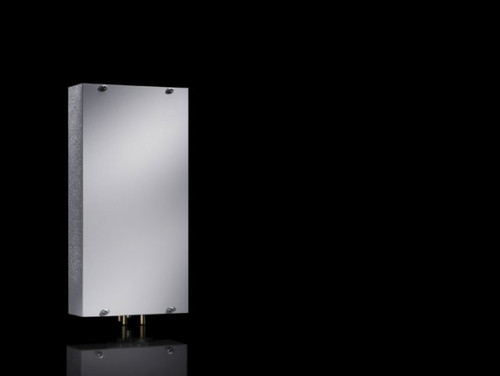

SK 3214100 | SK Air/water heat exchanger, wall-mounted, 2047/2388 BTU/h 230 V, 1~, 50/60 Hz, Water-carrying parts: copper/brass , WHD: 200 x 500 x 100 mmImage_1
