RITTAL
SKU: TS 8606580

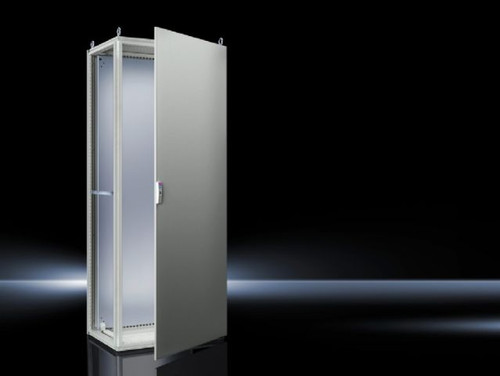

TS 8606580 | Baying systems TS 8 IP 66/NEMA 4, Rittal perfected the concept of the industrial modular enclosure with the TS 8 series. These single door, NEMA Type 4 rated enclosures consist of a frame with door, rear wall, and roof plate. Purchase si
Data Sheet: Data SheetMaterial: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mmBase Material: Carbon steelSurface Finish: Enclosure frame, door, roof, base and rear panel: Dipcoat-primed and powder-coated, textured paint Mounting panel: Zinc-platedColor: RAL 7035Supply Includes: Enclosure frame Door Door hinged on the right, may be swapped to the left Roof plate Base, solid Rear panel Mounting panel 4 eyebolts Lock: 3 mm double-bit 2 TS punched rails, 18 x 38 mm 2 support strips fitted in the enclosure depth Accessory kit foMounting Plate Dims: 699 mm x 1,896 mm ( 27.5 ? x 74.6 ? )Width (mm): 600mmDepth (mm): 600mmWidth (in): 23.6inHeight (in): 78.7inDepth (in): 23.6inIP Rating: IP 66IK Code: IK09NEMA Rating: NEMA 1 | NEMA 4 | NEMA 12UL Type Rating: Type 1 | Type 4 | Type 12Customs Tariff No: 9403200082Packaging Unit: 1 pc(s).Net Weight (kg): 241.995Net Weight (lb): 533.507Gross Weight (kg): 241.995Gross Weight (lb): 533.507UPC Code: 91282ECLASS 8.0: 27180101$2,901.68Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: TS 8806580
TS 8806580 | TS Bayed enclosure system, WHD: 800x2000x600 mm, Sheet steel, IP 66 / NEMA 4, with mounting plate, single door at the front
Data Sheet: Data SheetMaterial: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mmBase Material: Carbon steelSurface Finish: Enclosure frame, door, roof, base and rear panel: Dipcoat-primed and powder-coated, textured paint Mounting panel: Zinc-platedColor: RAL 7035Supply Includes: Enclosure frame Door Door hinged on the right, may be swapped to the left Roof plate Base, solid Rear panel Mounting panel 4 eyebolts Lock: 3 mm double-bit 2 TS punched rails, 18 x 38 mm 2 support strips fitted in the enclosure depth Accessory kit foMounting Plate Dims: 699 mm x 1,896 mm ( 27.5 ? x 74.6 ? )Width (mm): 800mmDepth (mm): 600mmWidth (in): 31.5inHeight (in): 78.7inDepth (in): 23.6inIP Rating: IP 66IK Code: IK09NEMA Rating: NEMA 1 | NEMA 4 | NEMA 12UL Type Rating: Type 1 | Type 4 | Type 12Customs Tariff No: 94032080Packaging Unit: 1 pc(s).Net Weight (kg): 123.975Net Weight (lb): 273.318Gross Weight (kg): 131.400Gross Weight (lb): 289.687EAN: 4028177597686ETIM 9: EC000261ECLASS 8.0: 27180101$3,103.21Please Call/Email for Stock Availability (864)-458-9988
