  • TS 8606580 | Baying systems TS 8 IP 66/NEMA 4, Rittal perfected the concept of the industrial modular enclosure with the TS 8 series. These single door, NEMA Type 4 rated enclosures consist of a frame with door, rear wall, and roof plate. Purchase si

TS 8606580 | Baying systems TS 8 IP 66/NEMA 4, Rittal perfected the concept of the industrial modular enclosure with the TS 8 series. These single door, NEMA Type 4 rated enclosures consist of a frame with door, rear wall, and roof plate. Purchase si

RITTAL

No reviews yet Write a Review
SKU:
TS 8606580
$2,901.68
TS 8606580 | Baying systems TS 8 IP 66/NEMA 4, Rittal perfected the concept of the industrial modular enclosure with the TS 8 series. These single door, NEMA Type 4 rated enclosures consist of a frame with door, rear wall, and roof plate. Purchase siImage_1
Condition:
New
Width:
23.60 (in)
Height:
78.70 (in)
Depth:
23.60 (in)
Shipping:
Calculated at Checkout
Baying systems TS 8 IP 66/NEMA 4, Rittal perfected the concept of the industrial modular enclosure with the TS 8 series. These single door, NEMA Type 4 rated enclosures consist of a frame with door, rear wall, and roof plate. Purchase sidewalls and p View full description
$2,901.68
35 people looking at this.

Description

Rittal TS 8606580

, Baying systems TS 8 IP 66/NEMA 4, 699 mm x 1,896 mm ( 27.5 ? x 74.6 ? ), Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm, Carbon steel, Enclosure frame, door, roof, base and rear panel: Dipcoat-primed and powder-coated, textured paint Mounting panel: Zinc-plated, RAL 7035, Enclosure frame Door Door hinged on the right, may be swapped to the left Roof plate Base, solid Rear panel Mounting panel 4 eyebolts Lock: 3 mm double-bit 2 TS punched rails, 18 x 38 mm 2 support strips fitted in the enclosure depth Accessory kit for side panels for upgrading to IP 66, 600 mm, 600 mm, 23.6 in, 78.7 in, 23.6 in, IP 66, IK09, NEMA 1 | NEMA 4 | NEMA 12, Type 1 | Type 4 | Type 12, 9403200082, 1 pc(s), 533.507 lbs, , Rittal perfected the concept of the industrial modular enclosure with the TS 8 series. These single door, NEMA Type 4 rated enclosures consist of a frame with door, rear wall, and roof plate. Purchase sidewalls and plinth separately for complete assembly.

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:
RITTAL
Width:
23.60 (in)
Height:
78.70 (in)
Depth:
23.60 (in)
Data Sheet:
Material:
Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm
Base Material:
Carbon steel
Surface Finish:
Enclosure frame, door, roof, base and rear panel: Dipcoat-primed and powder-coated, textured paint Mounting panel: Zinc-plated
Color:
RAL 7035
Supply Includes:
Enclosure frame Door Door hinged on the right, may be swapped to the left Roof plate Base, solid Rear panel Mounting panel 4 eyebolts Lock: 3 mm double-bit 2 TS punched rails, 18 x 38 mm 2 support strips fitted in the enclosure depth Accessory kit fo
Mounting Plate Dims:
699 mm x 1,896 mm ( 27.5 ? x 74.6 ? )
Width (mm):
600mm
Depth (mm):
600mm
Width (in):
23.6in
Height (in):
78.7in
Depth (in):
23.6in
IP Rating:
IP 66
IK Code:
IK09
NEMA Rating:
NEMA 1 | NEMA 4 | NEMA 12
UL Type Rating:
Type 1 | Type 4 | Type 12
Customs Tariff No:
9403200082
Packaging Unit:
1 pc(s).
Net Weight (kg):
241.995
Net Weight (lb):
533.507
Gross Weight (kg):
241.995
Gross Weight (lb):
533.507
UPC Code:
91282
ECLASS 8.0:
27180101

Related Products

TS 8886580 | Baying systems TS 8 IP 66/NEMA 4, Rittal perfected the concept of the industrial modular enclosure with the TS 8 series. These single door, NEMA Type 4 rated enclosures consist of a frame with door, rear wall, and roof plate. Purchase siImage_1
Quick view

RITTAL

SKU: TS 8886580

TS 8886580 | Baying systems TS 8 IP 66/NEMA 4, Rittal perfected the concept of the industrial modular enclosure with the TS 8 series. These single door, NEMA Type 4 rated enclosures consist of a frame with door, rear wall, and roof plate. Purchase si

Data Sheet: Data Sheet
Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm
Base Material: Carbon steel
Surface Finish: Enclosure frame, door, roof, base and rear panel: Dipcoat-primed and powder-coated, textured paint Mounting panel: Zinc-plated
Color: RAL 7035
Supply Includes: Enclosure frame Door Door hinged on the right, may be swapped to the left Roof plate Base, solid Rear panel Mounting panel 4 eyebolts Lock: 3 mm double-bit 2 TS punched rails, 18 x 38 mm 2 support strips fitted in the enclosure depth Accessory kit fo
Mounting Plate Dims: 699 mm x 1,896 mm ( 27.5 ? x 74.6 ? )
Width (mm): 800mm
Depth (mm): 600mm
Width (in): 31.5in
Height (in): 70.9in
Depth (in): 23.6in
IP Rating: IP 66
IK Code: IK09
NEMA Rating: NEMA 1 | NEMA 4 | NEMA 12
UL Type Rating: Type 1 | Type 4 | Type 12
Customs Tariff No: 9403200082
Packaging Unit: 1 pc(s).
Net Weight (kg): 292.994
Net Weight (lb): 645.940
Gross Weight (kg): 292.994
Gross Weight (lb): 645.940
UPC Code: 91284
ECLASS 8.0: 27180101
$2,840.13
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
TS 8806548 | Baying systems TS 8 Type 3R, Rittal perfected the concept of the industrial modular enclosure with the TS 8 series. These single door, UL Type 3R rated enclosures consist of a frame with door, rear wall, and roof plate. Purchase sidewallImage_1
Quick view

RITTAL

SKU: TS 8806548

TS 8806548 | Baying systems TS 8 Type 3R, Rittal perfected the concept of the industrial modular enclosure with the TS 8 series. These single door, UL Type 3R rated enclosures consist of a frame with door, rear wall, and roof plate. Purchase sidewall

Data Sheet: Data Sheet
Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm
Surface Finish: Enclosure frame: powder-coated Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and base plates: Zinc-plated
Color: RAL 7035
Supply Includes: Enclosure frame with door(s) Roof plate Rear panel, detachable 4 eyebolts Base Plates Mounting plate
Width (mm): 800mm
Depth (mm): 600mm
Width (in): 31.5in
Height (in): 78.7in
Depth (in): 23.6in
NEMA Rating: NEMA 3R
Customs Tariff No: 9403200082
Packaging Unit: 1 pc(s).
Net Weight (kg): 282.996
Net Weight (lb): 623.899
Gross Weight (kg): 282.996
Gross Weight (lb): 623.899
UPC Code: 85186
$2,511.71
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List

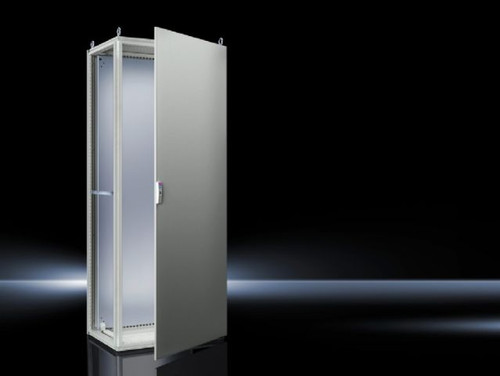

TS 8006548 | Baying systems TS 8 Type 3R, Rittal perfected the concept of the industrial modular enclosure with the TS 8 series. These single door, UL Type 3R rated enclosures consist of a frame with door, rear wall, and roof plate. Purchase sidewallImage_1
