KX terminal box, carbon steel, without flange

(Showing 11 of 23)
Compare
Show 12 All
  • KX 1512000 | KX Terminal box, WHD: 600x400x120 mm, sheet steel, without mounting plate, with cover, without gland plateImage_1
    Quick view

    RITTAL

    SKU: KX 1512000

    KX 1512000 | KX Terminal box, WHD: 600x400x120 mm, sheet steel, without mounting plate, with cover, without gland plate

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Cover: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Housing with cover Mini cam lock
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Width (mm): 600mm
    Height (mm): 400mm
    Depth (mm): 120mm
    Width (in): 23.6in
    Height (in): 15.7in
    Depth (in): 4.72in
    IP Rating: IP 66
    IK Code: IK08
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 8.000
    Net Weight (lb): 17.637
    Gross Weight (kg): 8.140
    Gross Weight (lb): 17.946
    EAN: 4028177816268
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $305.61
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • KX 1513000 | KX Terminal box, WHD: 800x400x120 mm, sheet steel, without mounting plate, with cover, without gland plateImage_1
    Quick view

    RITTAL

    SKU: KX 1513000

    KX 1513000 | KX Terminal box, WHD: 800x400x120 mm, sheet steel, without mounting plate, with cover, without gland plate

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Cover: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Housing with cover Mini cam lock
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Width (mm): 800mm
    Height (mm): 400mm
    Depth (mm): 120mm
    Width (in): 31.5in
    Height (in): 15.7in
    Depth (in): 4.72in
    IP Rating: IP 66
    IK Code: IK08
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 10.500
    Net Weight (lb): 23.149
    Gross Weight (kg): 10.760
    Gross Weight (lb): 23.722
    EAN: 4028177816275
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $328.60
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

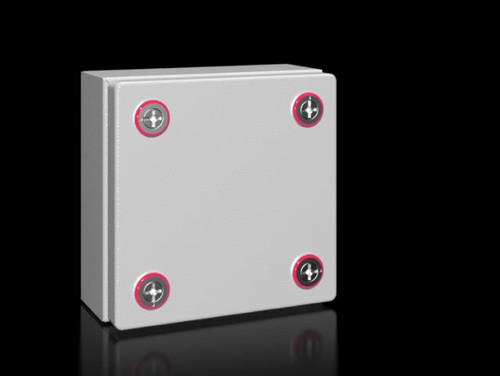

  • KX 1514000 | KX Terminal box, WHD: 150x150x80 mm, sheet steel, without mounting plate, with cover, without gland plateImage_1
    Quick view

    RITTAL

    SKU: KX 1514000

    KX 1514000 | KX Terminal box, WHD: 150x150x80 mm, sheet steel, without mounting plate, with cover, without gland plate

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Cover: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Housing with cover Mini cam lock
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Width (mm): 150mm
    Height (mm): 150mm
    Depth (mm): 80mm
    Width (in): 5.91in
    Height (in): 5.91in
    Depth (in): 3.15in
    IP Rating: IP 66
    IK Code: IK08
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 1.012
    Net Weight (lb): 2.231
    Gross Weight (kg): 1.207
    Gross Weight (lb): 2.661
    EAN: 4028177816282
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $85.83
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • KX 1515000 | KX Terminal box, WHD: 300x150x80 mm, sheet steel, without mounting plate, with cover, without gland plateImage_1
    Quick view

    RITTAL

    SKU: KX 1515000

    KX 1515000 | KX Terminal box, WHD: 300x150x80 mm, sheet steel, without mounting plate, with cover, without gland plate

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Cover: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Housing with cover Mini cam lock
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Width (mm): 300mm
    Height (mm): 150mm
    Depth (mm): 80mm
    Width (in): 11.8in
    Height (in): 5.91in
    Depth (in): 3.15in
    IP Rating: IP 66
    IK Code: IK08
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 1.780
    Net Weight (lb): 3.924
    Gross Weight (kg): 1.980
    Gross Weight (lb): 4.365
    EAN: 4028177816299
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $117.82
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • KX 1516000 | KX Terminal box, WHD: 200x200x80 mm, sheet steel, without mounting plate, with cover, without gland plateImage_1
    Quick view

    RITTAL

    SKU: KX 1516000

    KX 1516000 | KX Terminal box, WHD: 200x200x80 mm, sheet steel, without mounting plate, with cover, without gland plate

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Cover: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Housing with cover Mini cam lock
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Width (mm): 200mm
    Height (mm): 200mm
    Depth (mm): 80mm
    Width (in): 7.87in
    Height (in): 7.87in
    Depth (in): 3.15in
    IP Rating: IP 66
    IK Code: IK08
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 1.586
    Net Weight (lb): 3.497
    Gross Weight (kg): 1.795
    Gross Weight (lb): 3.957
    EAN: 4028177816305
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $94.85
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • KX 1517000 | KX Terminal box, WHD: 300x200x80 mm, sheet steel, without mounting plate, with cover, without gland plateImage_1
    Quick view

    RITTAL

    SKU: KX 1517000

    KX 1517000 | KX Terminal box, WHD: 300x200x80 mm, sheet steel, without mounting plate, with cover, without gland plate

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Cover: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Housing with cover Mini cam lock
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Width (mm): 300mm
    Height (mm): 200mm
    Depth (mm): 80mm
    Width (in): 11.8in
    Height (in): 7.87in
    Depth (in): 3.15in
    IP Rating: IP 66
    IK Code: IK08
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 2.250
    Net Weight (lb): 4.960
    Gross Weight (kg): 2.391
    Gross Weight (lb): 5.271
    EAN: 4028177816312
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $130.83
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • KX 1518000 | KX Terminal box, WHD: 400x200x80 mm, sheet steel, without mounting plate, with cover, without gland plateImage_1
    Quick view

    RITTAL

    SKU: KX 1518000

    KX 1518000 | KX Terminal box, WHD: 400x200x80 mm, sheet steel, without mounting plate, with cover, without gland plate

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Cover: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Housing with cover Mini cam lock
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Width (mm): 400mm
    Height (mm): 200mm
    Depth (mm): 80mm
    Width (in): 15.7in
    Height (in): 7.87in
    Depth (in): 3.15in
    IP Rating: IP 66
    IK Code: IK08
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 2.894
    Net Weight (lb): 6.380
    Gross Weight (kg): 3.006
    Gross Weight (lb): 6.627
    EAN: 4028177816329
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $143.84
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • KX 1527000 | KX Terminal box, WHD: 800x200x120 mm, sheet steel, without mounting plate, with cover, without gland plateImage_1
    Quick view

    RITTAL

    SKU: KX 1527000

    KX 1527000 | KX Terminal box, WHD: 800x200x120 mm, sheet steel, without mounting plate, with cover, without gland plate

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Cover: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Housing with cover Mini cam lock
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Width (mm): 800mm
    Height (mm): 200mm
    Depth (mm): 120mm
    Width (in): 31.5in
    Height (in): 7.87in
    Depth (in): 4.72in
    IP Rating: IP 66
    IK Code: IK08
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 6.213
    Net Weight (lb): 13.697
    Gross Weight (kg): 6.454
    Gross Weight (lb): 14.229
    EAN: 4028177816336
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $252.05
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • KX 1528000 | KX Terminal box, WHD: 200x150x80 mm, sheet steel, without mounting plate, with cover, without gland plateImage_1
    Quick view

    RITTAL

    SKU: KX 1528000

    KX 1528000 | KX Terminal box, WHD: 200x150x80 mm, sheet steel, without mounting plate, with cover, without gland plate

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Cover: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Housing with cover Mini cam lock
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Width (mm): 200mm
    Height (mm): 150mm
    Depth (mm): 80mm
    Width (in): 7.87in
    Height (in): 5.91in
    Depth (in): 3.15in
    IP Rating: IP 66
    IK Code: IK08
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 1.350
    Net Weight (lb): 2.976
    Gross Weight (kg): 1.425
    Gross Weight (lb): 3.142
    EAN: 4028177816343
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $90.83
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

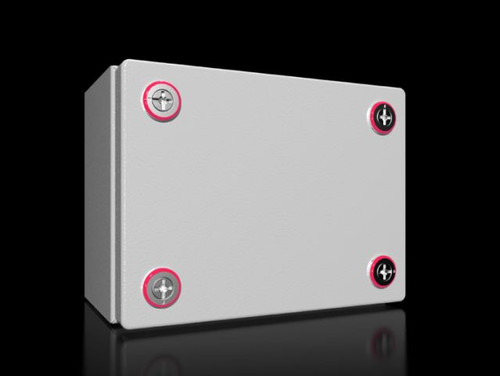

  • KX 1529000 | KX Terminal box, WHD: 200x150x120 mm, sheet steel, without mounting plate, with cover, without gland plateImage_1
    Quick view

    RITTAL

    SKU: KX 1529000

    KX 1529000 | KX Terminal box, WHD: 200x150x120 mm, sheet steel, without mounting plate, with cover, without gland plate

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Cover: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Housing with cover Mini cam lock
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Width (mm): 200mm
    Height (mm): 150mm
    Depth (mm): 120mm
    Width (in): 7.87in
    Height (in): 5.91in
    Depth (in): 4.72in
    IP Rating: IP 66
    IK Code: IK08
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 1.600
    Net Weight (lb): 3.527
    Gross Weight (kg): 1.749
    Gross Weight (lb): 3.856
    EAN: 4028177816350
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $104.85
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • KX 1589000 | KX Terminal box, WHD: 400x150x120 mm, sheet steel, without mounting plate, with cover, without gland plateImage_1
    Quick view

    RITTAL

    SKU: KX 1589000

    KX 1589000 | KX Terminal box, WHD: 400x150x120 mm, sheet steel, without mounting plate, with cover, without gland plate

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Cover: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and cover: Dipcoat primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Housing with cover Mini cam lock
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Width (mm): 400mm
    Height (mm): 150mm
    Depth (mm): 120mm
    Width (in): 15.7in
    Height (in): 5.91in
    Depth (in): 4.72in
    IP Rating: IP 66
    IK Code: IK08
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 2.700
    Net Weight (lb): 5.952
    Gross Weight (kg): 2.924
    Gross Weight (lb): 6.446
    EAN: 4028177816664
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $143.02
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

OUR MANUFACTURERS!

ABB BALDOR

ABB DRIVES

ABB ELECTRIFICATION

ABB ROBOTICS

Terms & Conditions | Contact Us | Our Brands
