KX terminal box Stainless steel

(Showing 10 of 10)
Compare
  • KX 1560000 | KX Terminal box, WHD: 150x150x80 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fastenersImage_1
    Quick view

    RITTAL

    SKU: KX 1560000

    KX 1560000 | KX Terminal box, WHD: 150x150x80 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fasteners

    Data Sheet: Data Sheet
    Material: Housing: Stainless steel 1.4301 (AISI 304) Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in PU seal
    Base Material: Stainless steel 1.4301 (AISI 304)
    Surface Finish: Housing and cover: Brushed, grain 180
    Supply Includes: Housing with cover Quick-release fasteners including plastic bushings
    Mat Thick - Enclosure: 1.5 mm (0.06 in)
    Lock Details: No. of locks: 4
    Width (mm): 150mm
    Height (mm): 150mm
    Depth (mm): 80mm
    Width (in): 5.91in
    Height (in): 5.91in
    Depth (in): 3.15in
    IP Rating: IP 66
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 3RX | NEMA 4 | NEMA 4X | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 3RX | Type 4 | Type 4X | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 1.120
    Net Weight (lb): 2.469
    Gross Weight (kg): 1.323
    Gross Weight (lb): 2.917
    EAN: 4028177919174
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $338.20
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • KX 1561000 | KX Terminal box, WHD: 300x150x80 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fastenersImage_1
    Quick view

    RITTAL

    SKU: KX 1561000

    KX 1561000 | KX Terminal box, WHD: 300x150x80 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fasteners

    Data Sheet: Data Sheet
    Material: Housing: Stainless steel 1.4301 (AISI 304) Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in PU seal
    Base Material: Stainless steel 1.4301 (AISI 304)
    Surface Finish: Housing and cover: Brushed, grain 180
    Supply Includes: Housing with cover Quick-release fasteners including plastic bushings
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Lock Details: No. of locks: 4
    Width (mm): 300mm
    Height (mm): 150mm
    Depth (mm): 80mm
    Width (in): 11.8in
    Height (in): 5.91in
    Depth (in): 3.15in
    IP Rating: IP 66
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 3RX | NEMA 4 | NEMA 4X | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 3RX | Type 4 | Type 4X | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 1.868
    Net Weight (lb): 4.118
    Gross Weight (kg): 1.971
    Gross Weight (lb): 4.345
    EAN: 4028177919181
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $407.95
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

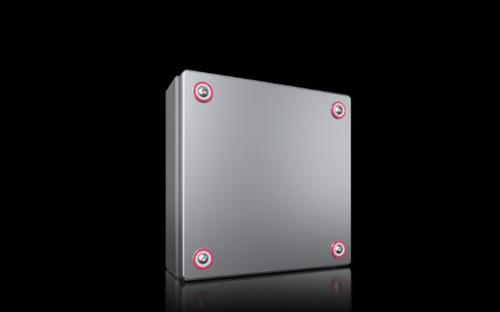

  • KX 1562000 | KX Terminal box, WHD: 200x200x80 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fastenersImage_1
    Quick view

    RITTAL

    SKU: KX 1562000

    KX 1562000 | KX Terminal box, WHD: 200x200x80 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fasteners

    Data Sheet: Data Sheet
    Material: Housing: Stainless steel 1.4301 (AISI 304) Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in PU seal
    Base Material: Stainless steel 1.4301 (AISI 304)
    Surface Finish: Housing and cover: Brushed, grain 180
    Supply Includes: Housing with cover Quick-release fasteners including plastic bushings
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Lock Details: No. of locks: 4
    Width (mm): 200mm
    Height (mm): 200mm
    Depth (mm): 80mm
    Width (in): 7.87in
    Height (in): 7.87in
    Depth (in): 3.15in
    IP Rating: IP 66
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 3RX | NEMA 4 | NEMA 4X | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 3RX | Type 4 | Type 4X | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 1.680
    Net Weight (lb): 3.704
    Gross Weight (kg): 1.926
    Gross Weight (lb): 4.246
    EAN: 4028177919044
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $383.69
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • KX 1563000 | KX Terminal box, WHD: 300x200x80 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fastenersImage_1
    Quick view

    RITTAL

    SKU: KX 1563000

    KX 1563000 | KX Terminal box, WHD: 300x200x80 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fasteners

    Data Sheet: Data Sheet
    Material: Housing: Stainless steel 1.4301 (AISI 304) Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in PU seal
    Base Material: Stainless steel 1.4301 (AISI 304)
    Surface Finish: Housing and cover: Brushed, grain 180
    Supply Includes: Housing with cover Quick-release fasteners including plastic bushings
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Lock Details: No. of locks: 4
    Width (mm): 300mm
    Height (mm): 200mm
    Depth (mm): 80mm
    Width (in): 11.8in
    Height (in): 7.87in
    Depth (in): 3.15in
    IP Rating: IP 66
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 3RX | NEMA 4 | NEMA 4X | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 3RX | Type 4 | Type 4X | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 2.322
    Net Weight (lb): 5.119
    Gross Weight (kg): 2.328
    Gross Weight (lb): 5.132
    EAN: 4028177919198
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $468.21
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • KX 1564000 | KX Terminal box, WHD: 150x150x120 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fastenersImage_1
    Quick view

    RITTAL

    SKU: KX 1564000

    KX 1564000 | KX Terminal box, WHD: 150x150x120 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fasteners

    Data Sheet: Data Sheet
    Material: Housing: Stainless steel 1.4301 (AISI 304) Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in PU seal
    Base Material: Stainless steel 1.4301 (AISI 304)
    Surface Finish: Housing and cover: Brushed, grain 180
    Supply Includes: Housing with cover Quick-release fasteners including plastic bushings
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Lock Details: No. of locks: 4
    Width (mm): 150mm
    Height (mm): 150mm
    Depth (mm): 120mm
    Width (in): 5.91in
    Height (in): 5.91in
    Depth (in): 4.72in
    IP Rating: IP 66
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 3RX | NEMA 4 | NEMA 4X | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 3RX | Type 4 | Type 4X | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 1.470
    Net Weight (lb): 3.241
    Gross Weight (kg): 1.480
    Gross Weight (lb): 3.263
    EAN: 4028177919051
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $367.51
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • KX 1565000 | KX Terminal box, WHD: 200x200x120 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fastenersImage_1
    Quick view

    RITTAL

    SKU: KX 1565000

    KX 1565000 | KX Terminal box, WHD: 200x200x120 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fasteners

    Data Sheet: Data Sheet
    Material: Housing: Stainless steel 1.4301 (AISI 304) Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in PU seal
    Base Material: Stainless steel 1.4301 (AISI 304)
    Surface Finish: Housing and cover: Brushed, grain 180
    Supply Includes: Housing with cover Quick-release fasteners including plastic bushings
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Lock Details: No. of locks: 4
    Width (mm): 200mm
    Height (mm): 200mm
    Depth (mm): 120mm
    Width (in): 7.87in
    Height (in): 7.87in
    Depth (in): 4.72in
    IP Rating: IP 66
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 3RX | NEMA 4 | NEMA 4X | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 3RX | Type 4 | Type 4X | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 1.934
    Net Weight (lb): 4.264
    Gross Weight (kg): 2.131
    Gross Weight (lb): 4.698
    EAN: 4028177919068
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $421.08
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • KX 1566000 | KX Terminal box, WHD: 300x200x120 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fastenersImage_1
    Quick view

    RITTAL

    SKU: KX 1566000

    KX 1566000 | KX Terminal box, WHD: 300x200x120 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fasteners

    Data Sheet: Data Sheet
    Material: Housing: Stainless steel 1.4301 (AISI 304) Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in PU seal
    Base Material: Stainless steel 1.4301 (AISI 304)
    Surface Finish: Housing and cover: Brushed, grain 180
    Supply Includes: Housing with cover Quick-release fasteners including plastic bushings
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Lock Details: No. of locks: 4
    Width (mm): 300mm
    Height (mm): 200mm
    Depth (mm): 120mm
    Width (in): 11.8in
    Height (in): 7.87in
    Depth (in): 4.72in
    IP Rating: IP 66
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 3RX | NEMA 4 | NEMA 4X | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 3RX | Type 4 | Type 4X | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 2.700
    Net Weight (lb): 5.952
    Gross Weight (kg): 2.866
    Gross Weight (lb): 6.318
    EAN: 4028177919204
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $481.34
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • KX 1567000 | KX Terminal box, WHD: 300x300x120 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fastenersImage_1
    Quick view

    RITTAL

    SKU: KX 1567000

    KX 1567000 | KX Terminal box, WHD: 300x300x120 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fasteners

    Data Sheet: Data Sheet
    Material: Housing: Stainless steel 1.4301 (AISI 304) Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in PU seal
    Base Material: Stainless steel 1.4301 (AISI 304)
    Surface Finish: Housing and cover: Brushed, grain 180
    Supply Includes: Housing with cover Quick-release fasteners including plastic bushings
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Lock Details: No. of locks: 4
    Width (mm): 300mm
    Height (mm): 300mm
    Depth (mm): 120mm
    Width (in): 11.8in
    Height (in): 11.8in
    Depth (in): 4.72in
    IP Rating: IP 66
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 3RX | NEMA 4 | NEMA 4X | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 3RX | Type 4 | Type 4X | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 3.750
    Net Weight (lb): 8.267
    Gross Weight (kg): 3.940
    Gross Weight (lb): 8.686
    EAN: 4028177919075
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $546.16
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • KX 1568000 | KX Terminal box, WHD: 400x200x120 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fastenersImage_1
    Quick view

    RITTAL

    SKU: KX 1568000

    KX 1568000 | KX Terminal box, WHD: 400x200x120 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fasteners

    Data Sheet: Data Sheet
    Material: Housing: Stainless steel 1.4301 (AISI 304) Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in PU seal
    Base Material: Stainless steel 1.4301 (AISI 304)
    Surface Finish: Housing and cover: Brushed, grain 180
    Supply Includes: Housing with cover Quick-release fasteners including plastic bushings
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Lock Details: No. of locks: 4
    Width (mm): 400mm
    Height (mm): 200mm
    Depth (mm): 120mm
    Width (in): 15.7in
    Height (in): 7.87in
    Depth (in): 4.72in
    IP Rating: IP 66
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 3RX | NEMA 4 | NEMA 4X | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 3RX | Type 4 | Type 4X | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 3.620
    Net Weight (lb): 7.981
    Gross Weight (kg): 3.660
    Gross Weight (lb): 8.069
    EAN: 4028177919082
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $505.60
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • KX 1569000 | KX Terminal box, WHD: 400x300x120 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fastenersImage_1
    Quick view

    RITTAL

    SKU: KX 1569000

    KX 1569000 | KX Terminal box, WHD: 400x300x120 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fasteners

    Data Sheet: Data Sheet
    Material: Housing: Stainless steel 1.4301 (AISI 304) Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in PU seal
    Base Material: Stainless steel 1.4301 (AISI 304)
    Surface Finish: Housing and cover: Brushed, grain 180
    Supply Includes: Housing with cover Quick-release fasteners including plastic bushings
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Lock Details: No. of locks: 4
    Width (mm): 400mm
    Height (mm): 300mm
    Depth (mm): 120mm
    Width (in): 15.7in
    Height (in): 11.8in
    Depth (in): 4.72in
    IP Rating: IP 66
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 3RX | NEMA 4 | NEMA 4X | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 3RX | Type 4 | Type 4X | Type 12
    Customs Tariff No: 84879059
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 4.300
    Net Weight (lb): 9.480
    Gross Weight (kg): 4.560
    Gross Weight (lb): 10.053
    EAN: 4028177919211
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $609.58
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

OUR MANUFACTURERS!

ABB BALDOR

ABB DRIVES

ABB ELECTRIFICATION

ABB ROBOTICS

Terms & Conditions | Contact Us | Our Brands
