KX 1569000 | KX Terminal box, WHD: 400x300x120 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fasteners

RITTAL

No reviews yet Write a Review
SKU:
KX 1569000
$609.58
KX 1569000 | KX Terminal box, WHD: 400x300x120 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fastenersImage_1
Condition:
New
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
Shipping:
Calculated at Checkout
KX Terminal box, WHD: 400x300x120 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fasteners View full description
$609.58
46 people looking at this.

Description

Rittal KX 1569000

KX Terminal box, WHD: 400x300x120 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fasteners, KX terminal box Stainless steel, Housing: Stainless steel 1.4301 (AISI 304) Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in PU seal, Stainless steel 1.4301 (AISI 304), Housing and cover: Brushed, grain 180, Housing with cover Quick-release fasteners including plastic bushings, 1.25 mm (0.05 in), 400 mm, 300 mm, 120 mm, 15.7 in, 11.8 in, 4.72 in, IP 66, NEMA 1 | NEMA 3R | NEMA 3RX | NEMA 4 | NEMA 4X | NEMA 12, Type 1 | Type 3R | Type 3RX | Type 4 | Type 4X | Type 12, No. of locks: 4, 84879059, 1 pc(s), 9.480 lbs, 4028177919211, The KX small enclosure stainless steel offers maximum data quality and consistency in engineering, flexibility, and safety for a variety of applications.

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:
RITTAL
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
Data Sheet:
Material:
Housing: Stainless steel 1.4301 (AISI 304) Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in PU seal
Base Material:
Stainless steel 1.4301 (AISI 304)
Surface Finish:
Housing and cover: Brushed, grain 180
Supply Includes:
Housing with cover Quick-release fasteners including plastic bushings
Mat Thick - Enclosure:
1.25 mm (0.05 in)
Lock Details:
No. of locks: 4
Width (mm):
400mm
Height (mm):
300mm
Depth (mm):
120mm
Width (in):
15.7in
Height (in):
11.8in
Depth (in):
4.72in
IP Rating:
IP 66
NEMA Rating:
NEMA 1 | NEMA 3R | NEMA 3RX | NEMA 4 | NEMA 4X | NEMA 12
UL Type Rating:
Type 1 | Type 3R | Type 3RX | Type 4 | Type 4X | Type 12
Customs Tariff No:
84879059
Packaging Unit:
1 pc(s).
Net Weight (kg):
4.300
Net Weight (lb):
9.480
Gross Weight (kg):
4.560
Gross Weight (lb):
10.053
EAN:
4028177919211
ETIM 9:
EC000261
ETIM 8:
EC000261
ECLASS 8.0:
27180101

Related Products

KX 1561000 | KX Terminal box, WHD: 300x150x80 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fastenersImage_1
Quick view

RITTAL

SKU: KX 1561000

KX 1561000 | KX Terminal box, WHD: 300x150x80 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fasteners

Data Sheet: Data Sheet
Material: Housing: Stainless steel 1.4301 (AISI 304) Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in PU seal
Base Material: Stainless steel 1.4301 (AISI 304)
Surface Finish: Housing and cover: Brushed, grain 180
Supply Includes: Housing with cover Quick-release fasteners including plastic bushings
Mat Thick - Enclosure: 1.25 mm (0.05 in)
Lock Details: No. of locks: 4
Width (mm): 300mm
Height (mm): 150mm
Depth (mm): 80mm
Width (in): 11.8in
Height (in): 5.91in
Depth (in): 3.15in
IP Rating: IP 66
NEMA Rating: NEMA 1 | NEMA 3R | NEMA 3RX | NEMA 4 | NEMA 4X | NEMA 12
UL Type Rating: Type 1 | Type 3R | Type 3RX | Type 4 | Type 4X | Type 12
Customs Tariff No: 84879059
Packaging Unit: 1 pc(s).
Net Weight (kg): 1.868
Net Weight (lb): 4.118
Gross Weight (kg): 1.971
Gross Weight (lb): 4.345
EAN: 4028177919181
ETIM 9: EC000261
ETIM 8: EC000261
ECLASS 8.0: 27180101
$407.95
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
KX 1567000 | KX Terminal box, WHD: 300x300x120 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fastenersImage_1
Quick view

RITTAL

SKU: KX 1567000

KX 1567000 | KX Terminal box, WHD: 300x300x120 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fasteners

Data Sheet: Data Sheet
Material: Housing: Stainless steel 1.4301 (AISI 304) Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in PU seal
Base Material: Stainless steel 1.4301 (AISI 304)
Surface Finish: Housing and cover: Brushed, grain 180
Supply Includes: Housing with cover Quick-release fasteners including plastic bushings
Mat Thick - Enclosure: 1.25 mm (0.05 in)
Lock Details: No. of locks: 4
Width (mm): 300mm
Height (mm): 300mm
Depth (mm): 120mm
Width (in): 11.8in
Height (in): 11.8in
Depth (in): 4.72in
IP Rating: IP 66
NEMA Rating: NEMA 1 | NEMA 3R | NEMA 3RX | NEMA 4 | NEMA 4X | NEMA 12
UL Type Rating: Type 1 | Type 3R | Type 3RX | Type 4 | Type 4X | Type 12
Customs Tariff No: 84879059
Packaging Unit: 1 pc(s).
Net Weight (kg): 3.750
Net Weight (lb): 8.267
Gross Weight (kg): 3.940
Gross Weight (lb): 8.686
EAN: 4028177919075
ETIM 9: EC000261
ETIM 8: EC000261
ECLASS 8.0: 27180101
$546.16
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
KX 1563000 | KX Terminal box, WHD: 300x200x80 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fastenersImage_1
Quick view

RITTAL

SKU: KX 1563000

KX 1563000 | KX Terminal box, WHD: 300x200x80 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fasteners

Data Sheet: Data Sheet
Material: Housing: Stainless steel 1.4301 (AISI 304) Cover: Stainless steel 1.4301 (AISI 304), all-round foamed-in PU seal
Base Material: Stainless steel 1.4301 (AISI 304)
Surface Finish: Housing and cover: Brushed, grain 180
Supply Includes: Housing with cover Quick-release fasteners including plastic bushings
Mat Thick - Enclosure: 1.25 mm (0.05 in)
Lock Details: No. of locks: 4
Width (mm): 300mm
Height (mm): 200mm
Depth (mm): 80mm
Width (in): 11.8in
Height (in): 7.87in
Depth (in): 3.15in
IP Rating: IP 66
NEMA Rating: NEMA 1 | NEMA 3R | NEMA 3RX | NEMA 4 | NEMA 4X | NEMA 12
UL Type Rating: Type 1 | Type 3R | Type 3RX | Type 4 | Type 4X | Type 12
Customs Tariff No: 84879059
Packaging Unit: 1 pc(s).
Net Weight (kg): 2.322
Net Weight (lb): 5.119
Gross Weight (kg): 2.328
Gross Weight (lb): 5.132
EAN: 4028177919198
ETIM 9: EC000261
ETIM 8: EC000261
ECLASS 8.0: 27180101
$468.21
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List

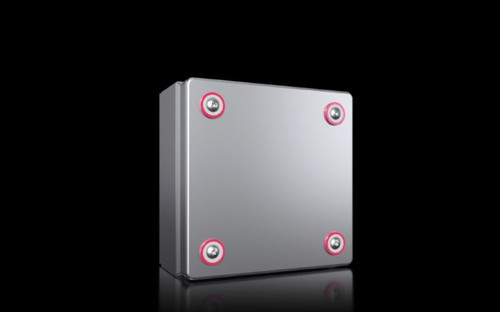

KX 1560000 | KX Terminal box, WHD: 150x150x80 mm, stainless steel 1.4301, without mounting plate, with cover, with quick-release fastenersImage_1
