RITTAL
SKU: VX 9840305
VX 9840305 | VX Hybrid Double Door, Nema 4X, internally fastened hardware used for all components (rear panel, side panel, roof, base plate) stainless steel, 63" x 63" x 16"
Data Sheet: Data SheetMaterial: Housing: Stainless steel 1.4301 (AISI 304) Enclosure frame: Stainless steel 1.4301 (AISI 304), 1.5 mm Roof: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed Door: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed Side/rear panel:Base Material: Stainless steel 1.4301 (AISI 304)Surface Finish: Enclosure frame: Uncoated Door, roof and rear panel: Exterior brushed, grain size 400 Mounting panel: Zinc-platedSupply Includes: Enclosure frame Doors - center latched, can be hinged left or right Roof plate with overlapping sides. Back and drip shield Base, solid Rear panels Side Panels Center mullion - removable Heavy-duty padlockable handle 4 punched rails 18 x 39 mm MountiMounting Plate Dims: 1,502 mm x 1,496 mm ( 59.1 ? x 58.9 ? )Number of Doors: 2Depth (mm): 400mmWidth (in): 63inHeight (in): 63inDepth (in): 15.7inIP Rating: IP 66NEMA Rating: NEMA 4XUL Type Rating: Type 1, 3R, 4X, 12Packaging Unit: 1 pc(s).Net Weight (kg): 490.500Net Weight (lb): 1081.366Gross Weight (kg): 490.500Gross Weight (lb): 1081.366UPC Code: 94145$0.00Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: VX 9840306
VX 9840306 | VX Hybrid Double Door, Nema 4X, internally fastened hardware used for all components (rear panel, side panel, roof, base plate) stainless steel, 71" x 63" x 20"
Data Sheet: Data SheetMaterial: Housing: Stainless steel 1.4301 (AISI 304) Enclosure frame: Stainless steel 1.4301 (AISI 304), 1.5 mm Roof: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed Door: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed Side/rear panel:Base Material: Stainless steel 1.4301 (AISI 304)Surface Finish: Enclosure frame: Uncoated Door, roof and rear panel: Exterior brushed, grain size 400 Mounting panel: Zinc-platedSupply Includes: Enclosure frame Doors - center latched, can be hinged left or right Roof plate with overlapping sides. Back and drip shield Base, solid Rear panels Side Panels Center mullion - removable Heavy-duty padlockable handle 4 punched rails 18 x 39 mm MountiMounting Plate Dims: 1,502 mm x 1,696 mm ( 59.1 ? x 66.8 ? )Number of Doors: 2Depth (mm): 500mmWidth (in): 63inHeight (in): 70.9inDepth (in): 19.7inIP Rating: IP 66NEMA Rating: NEMA 4XUL Type Rating: Type 1, 3R, 4X, 12Packaging Unit: 1 pc(s).Net Weight (kg): 562.401Net Weight (lb): 1239.880Gross Weight (kg): 562.401Gross Weight (lb): 1239.880UPC Code: 94146$0.00Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: VX 9840307
VX 9840307 | VX Hybrid Double Door, Nema 4X, internally fastened hardware used for all components (rear panel, side panel, roof, base plate) stainless steel, 71" x 71" x 24"
Data Sheet: Data SheetMaterial: Housing: Stainless steel 1.4301 (AISI 304) Enclosure frame: Stainless steel 1.4301 (AISI 304), 1.5 mm Roof: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed Door: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed Side/rear panel:Base Material: Stainless steel 1.4301 (AISI 304)Surface Finish: Enclosure frame: Uncoated Door, roof and rear panel: Exterior brushed, grain size 400 Mounting panel: Zinc-platedSupply Includes: Enclosure frame Doors - center latched, can be hinged left or right Roof plate with overlapping sides. Back and drip shield Base, solid Rear panels Side Panels Center mullion - removable Heavy-duty padlockable handle 4 punched rails 18 x 39 mm MountiMounting Plate Dims: 1,702 mm x 1,696 mm ( 67 ? x 66.8 ? )Number of Doors: 2Depth (mm): 600mmWidth (in): 70.9inHeight (in): 70.9inDepth (in): 23.6inIP Rating: IP 66NEMA Rating: NEMA 4XUL Type Rating: Type 1, 3R, 4X, 12Packaging Unit: 1 pc(s).Net Weight (kg): 643.600Net Weight (lb): 1418.893Gross Weight (kg): 643.600Gross Weight (lb): 1418.893UPC Code: 94147$0.00Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: VX 9840308

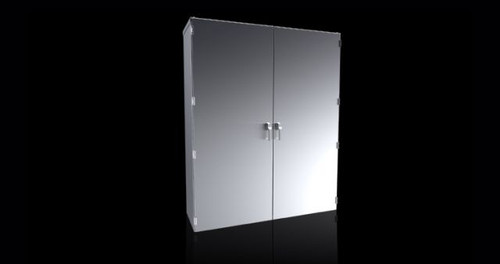

VX 9840308 | VX Hybrid Double Door, Nema 4X, internally fastened hardware used for all components (rear panel, side panel, roof, base plate) stainless steel, 79" x 71" x 24"
Data Sheet: Data SheetMaterial: Housing: Stainless steel 1.4301 (AISI 304) Enclosure frame: Stainless steel 1.4301 (AISI 304), 1.5 mm Roof: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed Door: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed Side/rear panel:Base Material: Stainless steel 1.4301 (AISI 304)Surface Finish: Enclosure frame: Uncoated Door, roof and rear panel: Exterior brushed, grain size 400 Mounting panel: Zinc-platedSupply Includes: Enclosure frame Doors - center latched, can be hinged left or right Roof plate with overlapping sides. Back and drip shield Base, solid Rear panels Side Panels Center mullion - removable Heavy-duty padlockable handle 4 punched rails 18 x 39 mm MountiMounting Plate Dims: 1,702 mm x 1,896 mm ( 67 ? x 74.6 ? )Number of Doors: 2Depth (mm): 600mmWidth (in): 70.9inHeight (in): 78.7inDepth (in): 23.6inIP Rating: IP 66NEMA Rating: NEMA 4XUL Type Rating: Type 1, 3R, 4X, 12Packaging Unit: 1 pc(s).Net Weight (kg): 699.200Net Weight (lb): 1541.470Gross Weight (kg): 699.200Gross Weight (lb): 1541.470UPC Code: 94148$0.00Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: VX 9840309
VX 9840309 | VX Hybrid Double Door, Nema 4X, internally fastened hardware used for all components (rear panel, side panel, roof, base plate) stainless steel, 87" x 71" x 24"
Data Sheet: Data SheetMaterial: Housing: Stainless steel 1.4301 (AISI 304) Enclosure frame: Stainless steel 1.4301 (AISI 304), 1.5 mm Roof: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed Door: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed Side/rear panel:Base Material: Stainless steel 1.4301 (AISI 304)Surface Finish: Enclosure frame: Uncoated Door, roof and rear panel: Exterior brushed, grain size 400 Mounting panel: Zinc-platedSupply Includes: Enclosure frame Doors - center latched, can be hinged left or right Roof plate with overlapping sides. Back and drip shield Base, solid Rear panels Side Panels Center mullion - removable Heavy-duty padlockable handle 4 punched rails 18 x 39 mm MountiMounting Plate Dims: 1,702 mm x 2,096 mm ( 67 ? x 82.5 ? )Number of Doors: 2Depth (mm): 600mmWidth (in): 70.9inHeight (in): 86.6inDepth (in): 23.6inIP Rating: IP 66NEMA Rating: NEMA 4XUL Type Rating: Type 1, 3R, 4X, 12Packaging Unit: 1 pc(s).Net Weight (kg): 754.700Net Weight (lb): 1663.827Gross Weight (kg): 754.700Gross Weight (lb): 1663.827UPC Code: 94149$0.00Please Call/Email for Stock Availability (864)-458-9988
