Description

Rittal VX 9840307

Name: VX 9840307 | VX Hybrid Double Door, Nema 4X, internally fastened hardware used for all components (rear panel, side panel, roof, base plate) stainless steel, 71" x 71" x 24"
Brand: RITTAL
SKU: VX 9840307
Availability: OutOfStock

VX Hybrid Double Door, Nema 4X, internally fastened hardware used for all components (rear panel, side panel, roof, base plate) stainless steel, 71" x 71" x 24", VX Hybrid Double Door, NEMA 4X Stainless steel, 1,702 mm x 1,696 mm ( 67 ? x 66.8 ? ), Housing: Stainless steel 1.4301 (AISI 304) Enclosure frame: Stainless steel 1.4301 (AISI 304), 1.5 mm Roof: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed Door: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed Side/rear panel: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed Base plates: Stainless steel 1.4301 (AISI 304), 1.5 mm Mounting panel: Carbon steel, 3.0 mm, Stainless steel 1.4301 (AISI 304), Enclosure frame: Uncoated Door, roof and rear panel: Exterior brushed, grain size 400 Mounting panel: Zinc-plated, Enclosure frame Doors - center latched, can be hinged left or right Roof plate with overlapping sides. Back and drip shield Base, solid Rear panels Side Panels Center mullion - removable Heavy-duty padlockable handle 4 punched rails 18 x 39 mm Mounting panel, 600 mm, 70.9 in, 70.9 in, 23.6 in, IP 66, NEMA 4X, Type 1, 3R, 4X, 12, 2, 1 pc(s), 1418.893 lbs, , The VX Hybrid Double Door is a robust yet lightweight enclosure solution, perfect for applications where simple, quick deployment, portability, and safety are critical. The removable mullion allows for a single mounting panel and ample space for installing and removal of the panel. With corrosive resistant NEMA 4X rating, these enclosures have a place in nearly endless applications.

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:

RITTAL

Width:

70.90 (in)

Height:

70.90 (in)

Depth:

23.60 (in)

Data Sheet:

Material:

Housing: Stainless steel 1.4301 (AISI 304) Enclosure frame: Stainless steel 1.4301 (AISI 304), 1.5 mm Roof: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed Door: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed Side/rear panel:

Base Material:

Stainless steel 1.4301 (AISI 304)

Surface Finish:

Enclosure frame: Uncoated Door, roof and rear panel: Exterior brushed, grain size 400 Mounting panel: Zinc-plated

Supply Includes:

Enclosure frame Doors - center latched, can be hinged left or right Roof plate with overlapping sides. Back and drip shield Base, solid Rear panels Side Panels Center mullion - removable Heavy-duty padlockable handle 4 punched rails 18 x 39 mm Mounti

Mounting Plate Dims:

1,702 mm x 1,696 mm ( 67 ? x 66.8 ? )

Number of Doors:

Depth (mm):

600mm

Width (in):

70.9in

Height (in):

70.9in

Depth (in):

23.6in

IP Rating:

IP 66

NEMA Rating:

NEMA 4X

UL Type Rating:

Type 1, 3R, 4X, 12

Packaging Unit:

1 pc(s).

Net Weight (kg):

643.600

Net Weight (lb):

1418.893

Gross Weight (kg):

643.600

Gross Weight (lb):

1418.893

UPC Code:

94147

VX 9840308 | VX Hybrid Double Door, Nema 4X, internally fastened hardware used for all components (rear panel, side panel, roof, base plate) stainless steel, 79" x 71" x 24"

Data Sheet: Data Sheet

Material: Housing: Stainless steel 1.4301 (AISI 304) Enclosure frame: Stainless steel 1.4301 (AISI 304), 1.5 mm Roof: Stainless steel 1.4301 (AISI 304), 1.5 mm, exterior brushed Door: Stainless steel 1.4301 (AISI 304), 2.0 mm, exterior brushed Side/rear panel:

Base Material: Stainless steel 1.4301 (AISI 304)

Surface Finish: Enclosure frame: Uncoated Door, roof and rear panel: Exterior brushed, grain size 400 Mounting panel: Zinc-plated

Supply Includes: Enclosure frame Doors - center latched, can be hinged left or right Roof plate with overlapping sides. Back and drip shield Base, solid Rear panels Side Panels Center mullion - removable Heavy-duty padlockable handle 4 punched rails 18 x 39 mm Mounti

Mounting Plate Dims: 1,702 mm x 1,896 mm ( 67 ? x 74.6 ? )

Number of Doors: 2

Depth (mm): 600mm

Width (in): 70.9in

Height (in): 78.7in

Depth (in): 23.6in

IP Rating: IP 66

NEMA Rating: NEMA 4X

UL Type Rating: Type 1, 3R, 4X, 12

Packaging Unit: 1 pc(s).

Net Weight (kg): 699.200

Net Weight (lb): 1541.470

Gross Weight (kg): 699.200

Gross Weight (lb): 1541.470

UPC Code: 94148

$0.00

Please Call/Email for Stock Availability (864)-458-9988

VX 9840309 | VX Hybrid Double Door, Nema 4X, internally fastened hardware used for all components (rear panel, side panel, roof, base plate) stainless steel, 87" x 71" x 24"Image_1 — Quick view

RITTAL

SKU: VX 9840309

VX 9840309 | VX Hybrid Double Door, Nema 4X, internally fastened hardware used for all components (rear panel, side panel, roof, base plate) stainless steel, 87" x 71" x 24"

Data Sheet: Data Sheet

Base Material: Stainless steel 1.4301 (AISI 304)

Surface Finish: Enclosure frame: Uncoated Door, roof and rear panel: Exterior brushed, grain size 400 Mounting panel: Zinc-plated

Mounting Plate Dims: 1,702 mm x 2,096 mm ( 67 ? x 82.5 ? )

Number of Doors: 2

Depth (mm): 600mm

Width (in): 70.9in

Height (in): 86.6in

Depth (in): 23.6in

IP Rating: IP 66

NEMA Rating: NEMA 4X

UL Type Rating: Type 1, 3R, 4X, 12

Packaging Unit: 1 pc(s).

Net Weight (kg): 754.700

Net Weight (lb): 1663.827

Gross Weight (kg): 754.700

Gross Weight (lb): 1663.827

UPC Code: 94149

$0.00

Please Call/Email for Stock Availability (864)-458-9988

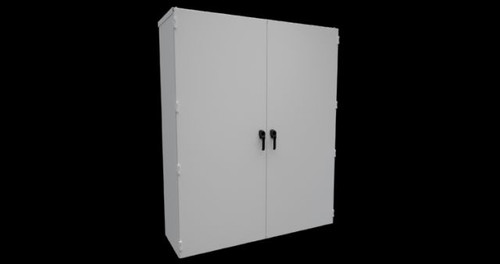

VX 9840302 | VX Hybrid Double Door, NEMA 4, internally fastened hardware used for all components (rear panel, side panel, roof, base plate) carbon steel, 71" x 71" x 24"Image_1 — Quick view

RITTAL

SKU: VX 9840302

VX 9840302 | VX Hybrid Double Door, NEMA 4, internally fastened hardware used for all components (rear panel, side panel, roof, base plate) carbon steel, 71" x 71" x 24"

Data Sheet: Data Sheet

Material: Housing: Carbon steel Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Side/rear panel: Carbon Steel, 1.5mm Base plate: Sheet steel, 2 mm Mounting panel: Carbon steel, 3.0 mm

Base Material: Carbon steel

Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated

Color: RAL 7035

Supply Includes: Enclosure frame Doors - center latched, can be hinged left or right Roof plate with overlapping sides. Back and drip shield Base, solid Rear panels Side Panels Mounting panel Center mullion - removable Heavy-duty padlockable handle 4 punched rails 18

Mounting Plate Dims: 1,702 mm x 1,696 mm ( 67 ? x 66.8 ? )

Number of Doors: 2

Depth (mm): 600mm

Width (in): 70.9in

Height (in): 70.9in

Depth (in): 23.6in

IP Rating: IP 66

NEMA Rating: Type 4

UL Type Rating: NEMA 1, 3R, 4, 12

Packaging Unit: 1 pc(s).

Net Weight (kg): 643.600

Net Weight (lb): 1418.893

Gross Weight (kg): 643.600

Gross Weight (lb): 1418.893

UPC Code: 94142

$0.00

Please Call/Email for Stock Availability (864)-458-9988

VX 9840306 | VX Hybrid Double Door, Nema 4X, internally fastened hardware used for all components (rear panel, side panel, roof, base plate) stainless steel, 71" x 63" x 20"Image_1 — Quick view

RITTAL

SKU: VX 9840306

VX 9840306 | VX Hybrid Double Door, Nema 4X, internally fastened hardware used for all components (rear panel, side panel, roof, base plate) stainless steel, 71" x 63" x 20"

Data Sheet: Data Sheet

Base Material: Stainless steel 1.4301 (AISI 304)

Surface Finish: Enclosure frame: Uncoated Door, roof and rear panel: Exterior brushed, grain size 400 Mounting panel: Zinc-plated

Mounting Plate Dims: 1,502 mm x 1,696 mm ( 59.1 ? x 66.8 ? )

Number of Doors: 2

Depth (mm): 500mm

Width (in): 63in

Height (in): 70.9in

Depth (in): 19.7in

IP Rating: IP 66

NEMA Rating: NEMA 4X

UL Type Rating: Type 1, 3R, 4X, 12

Packaging Unit: 1 pc(s).

Net Weight (kg): 562.401

Net Weight (lb): 1239.880

Gross Weight (kg): 562.401

Gross Weight (lb): 1239.880

UPC Code: 94146

$0.00

Please Call/Email for Stock Availability (864)-458-9988

VX 9840303 | VX Hybrid Double Door, NEMA 4, internally fastened hardware used for all components (rear panel, side panel, roof, base plate) carbon steel, 79" x 71" x 24"Image_1 — Quick view

RITTAL

SKU: VX 9840303

VX 9840303 | VX Hybrid Double Door, NEMA 4, internally fastened hardware used for all components (rear panel, side panel, roof, base plate) carbon steel, 79" x 71" x 24"

Data Sheet: Data Sheet

Base Material: Carbon steel

Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated

Color: RAL 7035

Mounting Plate Dims: 1,702 mm x 1,896 mm ( 67 ? x 74.6 ? )

Number of Doors: 2

Depth (mm): 600mm

Width (in): 70.9in

Height (in): 78.7in

Depth (in): 23.6in

IP Rating: IP 66

NEMA Rating: Type 4

UL Type Rating: NEMA 1, 3R, 4, 12

Packaging Unit: 1 pc(s).

Net Weight (kg): 699.200

Net Weight (lb): 1541.470

Gross Weight (kg): 699.200

Gross Weight (lb): 1541.470

UPC Code: 94143

$0.00

Please Call/Email for Stock Availability (864)-458-9988
