AX 1003000 | AX wall-mounted enclosure, WHD: 300x300x210 mm, 304 stainless steel, with mounting panel, single-door, with one cam lock

RITTAL

No reviews yet Write a Review
SKU:
AX 1003000
$803.75
AX 1003000 | AX wall-mounted enclosure, WHD: 300x300x210 mm, 304 stainless steel, with mounting panel, single-door, with one cam lockImage_1
Condition:
New
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
Shipping:
Calculated at Checkout
AX wall-mounted enclosure, WHD: 300x300x210 mm, 304 stainless steel, with mounting panel, single-door, with one cam lock View full description
$803.75
8 people looking at this.

Description

Rittal AX 1003000

AX wall-mounted enclosure, WHD: 300x300x210 mm, 304 stainless steel, with mounting panel, single-door, with one cam lock, Basic enclosure AX, stainless steel, 2 mm (0.08 in), 250 mm x 275 mm ( 9.84 ? x 10.8 ? ), Housing: Stainless steel Door: Stainless steel, all-round foamed-in PU seal Mounting plate: Carbon steel Stainless steel 1.4301 (AISI 304), Stainless steel 1.4301 (AISI 304), Housing and door: Brushed, grain 400, peak-to-valley height < 0.8 µm Mounting panel: Zinc-plated, Housing with door(s), swing angle 130° Mounting panel Lock: 3 mm double-bit, 1.5 mm (0.06 in), 1.25 mm (0.05 in), 300 mm, 300 mm, 210 mm, 11.8 in, 11.8 in, 8.27 in, IP 66, IK10, NEMA 1 | NEMA 3R | NEMA 4 | NEMA 4X | NEMA 12, Type 1 | Type 3R | Type 4 | Type 4X | Type 12, 1, Lock version: Cam No. of locks: 1 Lock Insert: 3 mm double-bit Material lock: Die-cast zinc, 94032080, 1 pc(s), 13.935 lbs, 4028177815063, The robust stainless steel housings feature an integrated cam system that allows for extensive system expansion without drilling, quickly and securely.

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:
RITTAL
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
Data Sheet:
Material:
Housing: Stainless steel Door: Stainless steel, all-round foamed-in PU seal Mounting plate: Carbon steel Stainless steel 1.4301 (AISI 304)
Base Material:
Stainless steel 1.4301 (AISI 304)
Surface Finish:
Housing and door: Brushed, grain 400, peak-to-valley height < 0.8 µm Mounting panel: Zinc-plated
Supply Includes:
Housing with door(s), swing angle 130° Mounting panel Lock: 3 mm double-bit
Mat Thick - Door:
1.5 mm (0.06 in)
Mat Thick - Enclosure:
1.25 mm (0.05 in)
Mat Thick - Mtg Plate:
2 mm (0.08 in)
Mounting Plate Dims:
250 mm x 275 mm ( 9.84 ? x 10.8 ? )
Number of Doors:
1
Lock Details:
Lock version: Cam No. of locks: 1 Lock Insert: 3 mm double-bit Material lock: Die-cast zinc
Width (mm):
300mm
Height (mm):
300mm
Depth (mm):
210mm
Width (in):
11.8in
Height (in):
11.8in
Depth (in):
8.27in
IP Rating:
IP 66
IK Code:
IK10
NEMA Rating:
NEMA 1 | NEMA 3R | NEMA 4 | NEMA 4X | NEMA 12
UL Type Rating:
Type 1 | Type 3R | Type 4 | Type 4X | Type 12
Customs Tariff No:
94032080
Packaging Unit:
1 pc(s).
Net Weight (kg):
6.321
Net Weight (lb):
13.935
Gross Weight (kg):
6.335
Gross Weight (lb):
13.966
EAN:
4028177815063
ETIM 9:
EC000261
ETIM 8:
EC000261
ECLASS 8.0:
27180101

Related Products

AX 1033000 | AX wall-mounted enclosure, WHD: 300x300x210 mm, carbon steel, with mounting panel, single-door, with one cam lockImage_1
Quick view

RITTAL

SKU: AX 1033000

AX 1033000 | AX wall-mounted enclosure, WHD: 300x300x210 mm, carbon steel, with mounting panel, single-door, with one cam lock

Data Sheet: Data Sheet
Material: Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal
Base Material: Carbon steel
Surface Finish: Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated
Color: RAL 7035
Supply Includes: Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit
Mat Thick - Door: 1.5 mm (0.06 in)
Mat Thick - Enclosure: 1.25 mm (0.05 in)
Mat Thick - Mtg Plate: 2 mm (0.08 in)
Mounting Plate Dims: 250 mm x 275 mm ( 9.84 ? x 10.8 ? )
Number of Doors: 1
Position Door Catch: Yes
Lock Details: Lock version: Cam No. of locks: 1 Lock Insert: 3 mm double-bit
Width (mm): 300mm
Height (mm): 300mm
Depth (mm): 210mm
Width (in): 11.8in
Height (in): 11.8in
Depth (in): 8.27in
IP Rating: IP 66
IK Code: IK10
NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12
UL Type Rating: Type 1 | Type 3R | Type 4 | Type 12
Customs Tariff No: 94032080
Packaging Unit: 1 pc(s).
Net Weight (kg): 6.440
Net Weight (lb): 14.198
Gross Weight (kg): 6.700
Gross Weight (lb): 14.771
EAN: 4028177813458
ETIM 9: EC000261
ETIM 8: EC000261
ECLASS 8.0: 27180101
$306.82
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
AX 1006000 | AX wall-mounted enclosure, WHD: 380x380x210 mm, 304 stainless steel, with mounting panel, single-door, with one cam lockImage_1
Quick view

RITTAL

SKU: AX 1006000

AX 1006000 | AX wall-mounted enclosure, WHD: 380x380x210 mm, 304 stainless steel, with mounting panel, single-door, with one cam lock

Data Sheet: Data Sheet
Material: Housing: Stainless steel Door: Stainless steel, all-round foamed-in PU seal Mounting plate: Carbon steel Stainless steel 1.4301 (AISI 304)
Base Material: Stainless steel 1.4301 (AISI 304)
Surface Finish: Housing and door: Brushed, grain 400, peak-to-valley height < 0.8 µm Mounting panel: Zinc-plated
Supply Includes: Housing with door(s), swing angle 130° Mounting panel Lock: 3 mm double-bit
Mat Thick - Door: 1.5 mm (0.06 in)
Mat Thick - Enclosure: 1.25 mm (0.05 in)
Mat Thick - Mtg Plate: 2 mm (0.08 in)
Mounting Plate Dims: 330 mm x 355 mm ( 13 ? x 14 ? )
Number of Doors: 1
Lock Details: Lock version: Cam No. of locks: 1 Lock Insert: 3 mm double-bit Material lock: Die-cast zinc
Width (mm): 380mm
Height (mm): 380mm
Depth (mm): 210mm
Width (in): 15in
Height (in): 15in
Depth (in): 8.27in
IP Rating: IP 66
IK Code: IK10
NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 4X | NEMA 12
UL Type Rating: Type 1 | Type 3R | Type 4 | Type 4X | Type 12
Customs Tariff No: 94032080
Packaging Unit: 1 pc(s).
Net Weight (kg): 9.000
Net Weight (lb): 19.842
Gross Weight (kg): 9.115
Gross Weight (lb): 20.095
EAN: 4028177814950
ETIM 9: EC000261
ETIM 8: EC000261
ECLASS 8.0: 27180101
$906.36
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
AX 1011000 | AX wall-mounted enclosure, WHD: 380x300x210 mm, 304 stainless steel, with mounting panel, single-door, with one cam locksImage_1
Quick view

RITTAL

SKU: AX 1011000

AX 1011000 | AX wall-mounted enclosure, WHD: 380x300x210 mm, 304 stainless steel, with mounting panel, single-door, with one cam locks

Data Sheet: Data Sheet
Material: Housing: Stainless steel Door: Stainless steel, all-round foamed-in PU seal Mounting plate: Carbon steel Stainless steel 1.4301 (AISI 304)
Base Material: Stainless steel 1.4301 (AISI 304)
Surface Finish: Housing and door: Brushed, grain 400, peak-to-valley height < 0.8 µm Mounting panel: Zinc-plated
Supply Includes: Housing with door(s), swing angle 130° Mounting panel Lock: 3 mm double-bit
Mat Thick - Door: 1.5 mm (0.06 in)
Mat Thick - Enclosure: 1.25 mm (0.05 in)
Mat Thick - Mtg Plate: 2 mm (0.08 in)
Mounting Plate Dims: 330 mm x 275 mm ( 13 ? x 10.8 ? )
Number of Doors: 1
Lock Details: Lock version: Cam No. of locks: 1 Lock Insert: 3 mm double-bit Material lock: Die-cast zinc
Width (mm): 380mm
Height (mm): 300mm
Depth (mm): 210mm
Width (in): 15in
Height (in): 11.8in
Depth (in): 8.27in
IP Rating: IP 66
IK Code: IK10
NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 4X | NEMA 12
UL Type Rating: Type 1 | Type 3R | Type 4 | Type 4X | Type 12
Customs Tariff No: 94032080
Packaging Unit: 1 pc(s).
Net Weight (kg): 7.100
Net Weight (lb): 15.653
Gross Weight (kg): 7.532
Gross Weight (lb): 16.605
EAN: 4028177815117
ETIM 9: EC000261
ETIM 8: EC000261
ECLASS 8.0: 27180101
$825.53
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
AX 1009000 | AX wall-mounted enclosure, WHD: 600x380x210 mm, 304 stainless steel, with mounting panel, single-door, with one cam lockImage_1
Quick view

RITTAL

SKU: AX 1009000

AX 1009000 | AX wall-mounted enclosure, WHD: 600x380x210 mm, 304 stainless steel, with mounting panel, single-door, with one cam lock

Data Sheet: Data Sheet
Material: Housing: Stainless steel Door: Stainless steel, all-round foamed-in PU seal Mounting plate: Carbon steel Stainless steel 1.4301 (AISI 304)
Base Material: Stainless steel 1.4301 (AISI 304)
Surface Finish: Housing and door: Brushed, grain 400, peak-to-valley height < 0.8 µm Mounting panel: Zinc-plated
Supply Includes: Housing with door(s), swing angle 130° Mounting panel Lock: 3 mm double-bit
Mat Thick - Door: 1.5 mm (0.06 in)
Mat Thick - Enclosure: 1.25 mm (0.05 in)
Mat Thick - Mtg Plate: 2.5 mm (0.1 in)
Mounting Plate Dims: 550 mm x 355 mm ( 21.7 ? x 14 ? )
Number of Doors: 1
Lock Details: Lock version: Cam No. of locks: 1 Lock Insert: 3 mm double-bit Material lock: Die-cast zinc
Width (mm): 600mm
Height (mm): 380mm
Depth (mm): 210mm
Width (in): 23.6in
Height (in): 15in
Depth (in): 8.27in
IP Rating: IP 66
IK Code: IK10
NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 4X | NEMA 12
UL Type Rating: Type 1 | Type 3R | Type 4 | Type 4X | Type 12
Customs Tariff No: 94032080
Packaging Unit: 1 pc(s).
Net Weight (kg): 13.851
Net Weight (lb): 30.536
Gross Weight (kg): 13.935
Gross Weight (lb): 30.721
EAN: 4028177814981
ETIM 9: EC000261
ETIM 8: EC000261
ECLASS 8.0: 27180101
$1,199.52
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List

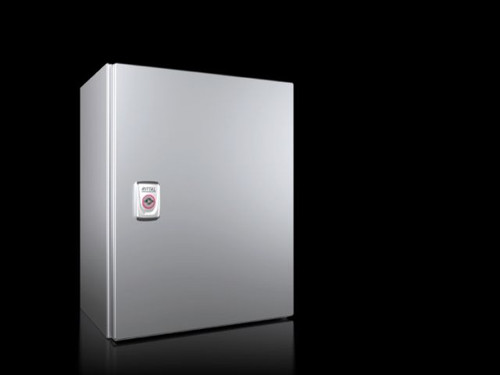

AX 1005000 | AX wall-mounted enclosure, WHD: 300x380x210 mm, 304 stainless steel, with mounting panel, single-door, with one cam lockImage_1
