Rittal AX 1033000

Name: AX 1033000 | AX wall-mounted enclosure, WHD: 300x300x210 mm, carbon steel, with mounting panel, single-door, with one cam lock
Brand: RITTAL
SKU: AX 1033000
Price: 306.82 USD
Availability: InStock

AX wall-mounted enclosure, WHD: 300x300x210 mm, carbon steel, with mounting panel, single-door, with one cam lock, Basic enclosure AX, carbon steel, 2 mm (0.08 in), 250 mm x 275 mm ( 9.84 ? x 10.8 ? ), Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal, Carbon steel, Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated, RAL 7035, Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit, 1.5 mm (0.06 in), 1.25 mm (0.05 in), 300 mm, 300 mm, 210 mm, 11.8 in, 11.8 in, 8.27 in, IP 66, IK10, NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12, Type 1 | Type 3R | Type 4 | Type 12, 1, Yes, Lock version: Cam No. of locks: 1 Lock Insert: 3 mm double-bit, 94032080, 1 pc(s), 14.198 lbs, 4028177813458, The AX wall-mounted enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX wall-mounted control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be installed and retrofitted easily, quickly and safely on rails without drilling.

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:

RITTAL

Width:

1.00 (in)

Height:

1.00 (in)

Depth:

1.00 (in)

Data Sheet:

Material:

Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal

Base Material:

Carbon steel

Surface Finish:

Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated

Color:

RAL 7035

Supply Includes:

Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit

Mat Thick - Door:

1.5 mm (0.06 in)

Mat Thick - Enclosure:

1.25 mm (0.05 in)

Mat Thick - Mtg Plate:

2 mm (0.08 in)

Mounting Plate Dims:

250 mm x 275 mm ( 9.84 ? x 10.8 ? )

Number of Doors:

Position Door Catch:

Yes

Lock Details:

Lock version: Cam No. of locks: 1 Lock Insert: 3 mm double-bit

Width (mm):

300mm

Height (mm):

300mm

Depth (mm):

210mm

Width (in):

11.8in

Height (in):

11.8in

Depth (in):

8.27in

IP Rating:

IP 66

IK Code:

IK10

NEMA Rating:

NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12

UL Type Rating:

Type 1 | Type 3R | Type 4 | Type 12

Customs Tariff No:

94032080

Packaging Unit:

1 pc(s).

Net Weight (kg):

6.440

Net Weight (lb):

14.198

Gross Weight (kg):

6.700

Gross Weight (lb):

14.771

EAN:

4028177813458

ETIM 9:

EC000261

ETIM 8:

EC000261

ECLASS 8.0:

27180101

AX 1003000 | AX wall-mounted enclosure, WHD: 300x300x210 mm, 304 stainless steel, with mounting panel, single-door, with one cam lock

Data Sheet: Data Sheet

Material: Housing: Stainless steel Door: Stainless steel, all-round foamed-in PU seal Mounting plate: Carbon steel Stainless steel 1.4301 (AISI 304)

Base Material: Stainless steel 1.4301 (AISI 304)

Surface Finish: Housing and door: Brushed, grain 400, peak-to-valley height < 0.8 µm Mounting panel: Zinc-plated

Supply Includes: Housing with door(s), swing angle 130° Mounting panel Lock: 3 mm double-bit

Mat Thick - Door: 1.5 mm (0.06 in)

Mat Thick - Enclosure: 1.25 mm (0.05 in)

Mat Thick - Mtg Plate: 2 mm (0.08 in)

Mounting Plate Dims: 250 mm x 275 mm ( 9.84 ? x 10.8 ? )

Number of Doors: 1

Lock Details: Lock version: Cam No. of locks: 1 Lock Insert: 3 mm double-bit Material lock: Die-cast zinc

Width (mm): 300mm

Height (mm): 300mm

Depth (mm): 210mm

Width (in): 11.8in

Height (in): 11.8in

Depth (in): 8.27in

IP Rating: IP 66

IK Code: IK10

NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 4X | NEMA 12

UL Type Rating: Type 1 | Type 3R | Type 4 | Type 4X | Type 12

Customs Tariff No: 94032080

Packaging Unit: 1 pc(s).

Net Weight (kg): 6.321

Net Weight (lb): 13.935

Gross Weight (kg): 6.335

Gross Weight (lb): 13.966

EAN: 4028177815063

ETIM 9: EC000261

ETIM 8: EC000261

ECLASS 8.0: 27180101

$803.75

Please Call/Email for Stock Availability (864)-458-9988

AX 1034000 | AX wall-mounted enclosure, WHD: 300x400x210 mm, carbon steel, with mounting panel, single-door, with one cam lockImage_1 — Quick view

RITTAL

SKU: AX 1034000

AX 1034000 | AX wall-mounted enclosure, WHD: 300x400x210 mm, carbon steel, with mounting panel, single-door, with one cam lock

Data Sheet: Data Sheet

Material: Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal

Base Material: Carbon steel

Surface Finish: Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated

Color: RAL 7035

Supply Includes: Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit

Mat Thick - Door: 1.5 mm (0.06 in)

Mat Thick - Enclosure: 1.25 mm (0.05 in)

Mat Thick - Mtg Plate: 2 mm (0.08 in)

Mounting Plate Dims: 250 mm x 375 mm ( 9.84 ? x 14.8 ? )

Number of Doors: 1

Position Door Catch: Yes

Lock Details: Lock version: Cam No. of locks: 1 Lock Insert: 3 mm double-bit

Width (mm): 300mm

Height (mm): 400mm

Depth (mm): 210mm

Width (in): 11.8in

Height (in): 15.7in

Depth (in): 8.27in

IP Rating: IP 66

IK Code: IK10

NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12

UL Type Rating: Type 1 | Type 3R | Type 4 | Type 12

Customs Tariff No: 94032080

Packaging Unit: 1 pc(s).

Net Weight (kg): 8.060

Net Weight (lb): 17.769

Gross Weight (kg): 8.380

Gross Weight (lb): 18.475

EAN: 4028177813441

ETIM 9: EC000261

ETIM 8: EC000261

ECLASS 8.0: 27180101

$321.28

Please Call/Email for Stock Availability (864)-458-9988

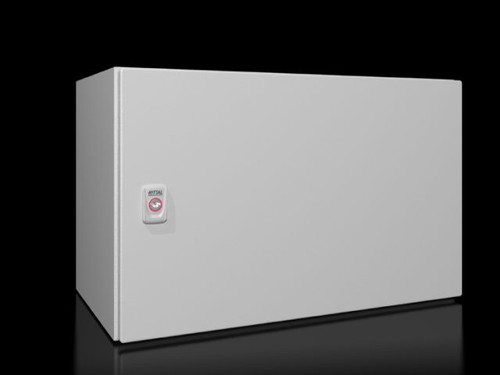

AX 1339000 | AX wall-mounted enclosure, WHD: 600x380x350 mm, carbon steel, with mounting panel, single-door, with one cam lockImage_1 — Quick view
