Basic enclosure AX, carbon steel

(Showing 12 of 26)
Compare
Show 12 24 36 48 96 All
  • AX 1033000 | AX wall-mounted enclosure, WHD: 300x300x210 mm, carbon steel, with mounting panel, single-door, with one cam lockImage_1
    Quick view

    RITTAL

    SKU: AX 1033000

    AX 1033000 | AX wall-mounted enclosure, WHD: 300x300x210 mm, carbon steel, with mounting panel, single-door, with one cam lock

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated
    Color: RAL 7035
    Supply Includes: Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit
    Mat Thick - Door: 1.5 mm (0.06 in)
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Mat Thick - Mtg Plate: 2 mm (0.08 in)
    Mounting Plate Dims: 250 mm x 275 mm ( 9.84 ? x 10.8 ? )
    Number of Doors: 1
    Position Door Catch: Yes
    Lock Details: Lock version: Cam No. of locks: 1 Lock Insert: 3 mm double-bit
    Width (mm): 300mm
    Height (mm): 300mm
    Depth (mm): 210mm
    Width (in): 11.8in
    Height (in): 11.8in
    Depth (in): 8.27in
    IP Rating: IP 66
    IK Code: IK10
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 6.440
    Net Weight (lb): 14.198
    Gross Weight (kg): 6.700
    Gross Weight (lb): 14.771
    EAN: 4028177813458
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $306.82
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • AX 1034000 | AX wall-mounted enclosure, WHD: 300x400x210 mm, carbon steel, with mounting panel, single-door, with one cam lockImage_1
    Quick view

    RITTAL

    SKU: AX 1034000

    AX 1034000 | AX wall-mounted enclosure, WHD: 300x400x210 mm, carbon steel, with mounting panel, single-door, with one cam lock

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated
    Color: RAL 7035
    Supply Includes: Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit
    Mat Thick - Door: 1.5 mm (0.06 in)
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Mat Thick - Mtg Plate: 2 mm (0.08 in)
    Mounting Plate Dims: 250 mm x 375 mm ( 9.84 ? x 14.8 ? )
    Number of Doors: 1
    Position Door Catch: Yes
    Lock Details: Lock version: Cam No. of locks: 1 Lock Insert: 3 mm double-bit
    Width (mm): 300mm
    Height (mm): 400mm
    Depth (mm): 210mm
    Width (in): 11.8in
    Height (in): 15.7in
    Depth (in): 8.27in
    IP Rating: IP 66
    IK Code: IK10
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 8.060
    Net Weight (lb): 17.769
    Gross Weight (kg): 8.380
    Gross Weight (lb): 18.475
    EAN: 4028177813441
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $321.28
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

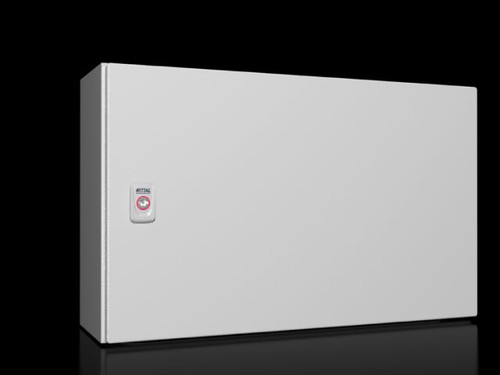

  • AX 1039000 | AX wall-mounted enclosure, WHD: 600x380x210 mm, carbon steel, with mounting panel, single-door, with one cam lockImage_1
    Quick view

    RITTAL

    SKU: AX 1039000

    AX 1039000 | AX wall-mounted enclosure, WHD: 600x380x210 mm, carbon steel, with mounting panel, single-door, with one cam lock

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated
    Color: RAL 7035
    Supply Includes: Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit
    Mat Thick - Door: 1.5 mm (0.06 in)
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Mat Thick - Mtg Plate: 2.5 mm (0.1 in)
    Mounting Plate Dims: 550 mm x 355 mm ( 21.7 ? x 14 ? )
    Number of Doors: 1
    Position Door Catch: Yes
    Lock Details: Lock version: Cam No. of locks: 1 Lock Insert: 3 mm double-bit
    Width (mm): 600mm
    Height (mm): 380mm
    Depth (mm): 210mm
    Width (in): 23.6in
    Height (in): 15in
    Depth (in): 8.27in
    IP Rating: IP 66
    IK Code: IK10
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 14.274
    Net Weight (lb): 31.469
    Gross Weight (kg): 14.400
    Gross Weight (lb): 31.747
    EAN: 4028177813380
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $440.03
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • AX 1045000 | AX wall-mounted enclosure, WHD: 400x500x210 mm, carbon steel, with mounting panel, single-door, with two cam locksImage_1
    Quick view

    RITTAL

    SKU: AX 1045000

    AX 1045000 | AX wall-mounted enclosure, WHD: 400x500x210 mm, carbon steel, with mounting panel, single-door, with two cam locks

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated
    Color: RAL 7035
    Supply Includes: Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit
    Mat Thick - Door: 1.5 mm (0.06 in)
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Mat Thick - Mtg Plate: 2 mm (0.08 in)
    Mounting Plate Dims: 350 mm x 475 mm ( 13.8 ? x 18.7 ? )
    Number of Doors: 1
    Position Door Catch: Yes
    Lock Details: Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit
    Width (mm): 400mm
    Height (mm): 500mm
    Depth (mm): 210mm
    Width (in): 15.7in
    Height (in): 19.7in
    Depth (in): 8.27in
    IP Rating: IP 66
    IK Code: IK10
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 12.000
    Net Weight (lb): 26.455
    Gross Weight (kg): 12.140
    Gross Weight (lb): 26.764
    EAN: 4028177813403
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $372.64
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • AX 1050000 | AX wall-mounted enclosure, WHD: 500x500x210 mm, carbon steel, with mounting panel, single-door, with two cam locksImage_1
    Quick view

    RITTAL

    SKU: AX 1050000

    AX 1050000 | AX wall-mounted enclosure, WHD: 500x500x210 mm, carbon steel, with mounting panel, single-door, with two cam locks

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated
    Color: RAL 7035
    Supply Includes: Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit
    Mat Thick - Door: 1.5 mm (0.06 in)
    Mat Thick - Enclosure: 1.25 mm (0.05 in)
    Mat Thick - Mtg Plate: 2.5 mm (0.1 in)
    Mounting Plate Dims: 450 mm x 475 mm ( 17.7 ? x 18.7 ? )
    Number of Doors: 1
    Position Door Catch: Yes
    Lock Details: Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit
    Width (mm): 500mm
    Height (mm): 500mm
    Depth (mm): 210mm
    Width (in): 19.7in
    Height (in): 19.7in
    Depth (in): 8.27in
    IP Rating: IP 66
    IK Code: IK10
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 15.060
    Net Weight (lb): 33.202
    Gross Weight (kg): 15.420
    Gross Weight (lb): 33.995
    EAN: 4028177813397
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $409.33
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

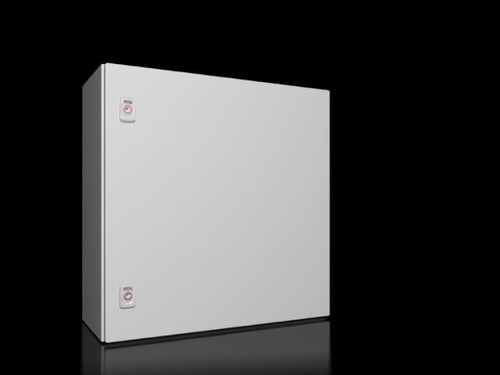

  • AX 1054000 | AX wall-mounted enclosure, WHD: 600x600x250 mm, carbon steel, with mounting panel, single-door, with two cam locksImage_1
    Quick view

    RITTAL

    SKU: AX 1054000

    AX 1054000 | AX wall-mounted enclosure, WHD: 600x600x250 mm, carbon steel, with mounting panel, single-door, with two cam locks

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated
    Color: RAL 7035
    Supply Includes: Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit
    Mat Thick - Door: 1.5 mm (0.06 in)
    Mat Thick - Enclosure: 1.5 mm (0.06 in)
    Mat Thick - Mtg Plate: 2.5 mm (0.1 in)
    Mounting Plate Dims: 550 mm x 575 mm ( 21.7 ? x 22.6 ? )
    Number of Doors: 1
    Position Door Catch: Yes
    Lock Details: Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit
    Width (mm): 600mm
    Height (mm): 600mm
    Depth (mm): 250mm
    Width (in): 23.6in
    Height (in): 23.6in
    Depth (in): 9.84in
    IP Rating: IP 66
    IK Code: IK10
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 23.278
    Net Weight (lb): 51.319
    Gross Weight (kg): 23.400
    Gross Weight (lb): 51.588
    EAN: 4028177813328
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $490.04
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • AX 1055000 | AX wall-mounted enclosure, WHD: 800x600x300 mm, carbon steel, with mounting panel, single-door, with two cam locksImage_1
    Quick view

    RITTAL

    SKU: AX 1055000

    AX 1055000 | AX wall-mounted enclosure, WHD: 800x600x300 mm, carbon steel, with mounting panel, single-door, with two cam locks

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated
    Color: RAL 7035
    Supply Includes: Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit
    Mat Thick - Door: 2 mm (0.08 in)
    Mat Thick - Enclosure: 1.5 mm (0.06 in)
    Mat Thick - Mtg Plate: 2.5 mm (0.1 in)
    Mounting Plate Dims: 750 mm x 575 mm ( 29.5 ? x 22.6 ? )
    Number of Doors: 1
    Position Door Catch: Yes
    Lock Details: Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit
    Width (mm): 800mm
    Height (mm): 600mm
    Depth (mm): 300mm
    Width (in): 31.5in
    Height (in): 23.6in
    Depth (in): 11.8in
    IP Rating: IP 66
    IK Code: IK10
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 32.300
    Net Weight (lb): 71.209
    Gross Weight (kg): 34.200
    Gross Weight (lb): 75.398
    EAN: 4028177813250
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $670.31
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • AX 1058000 | AX wall-mounted enclosure, WHD: 600x800x250 mm, carbon steel, with mounting panel, single-door, with two cam locksImage_1
    Quick view

    RITTAL

    SKU: AX 1058000

    AX 1058000 | AX wall-mounted enclosure, WHD: 600x800x250 mm, carbon steel, with mounting panel, single-door, with two cam locks

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated
    Color: RAL 7035
    Supply Includes: Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit
    Mat Thick - Door: 2 mm (0.08 in)
    Mat Thick - Enclosure: 1.5 mm (0.06 in)
    Mat Thick - Mtg Plate: 2.5 mm (0.1 in)
    Mounting Plate Dims: 545 mm x 775 mm ( 21.5 ? x 30.5 ? )
    Number of Doors: 1
    Position Door Catch: Yes
    Lock Details: Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit
    Width (mm): 600mm
    Height (mm): 800mm
    Depth (mm): 250mm
    Width (in): 23.6in
    Height (in): 31.5in
    Depth (in): 9.84in
    IP Rating: IP 66
    IK Code: IK10
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 30.250
    Net Weight (lb): 66.690
    Gross Weight (kg): 32.000
    Gross Weight (lb): 70.548
    EAN: 4028177813311
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $654.17
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • AX 1059000 | AX wall-mounted enclosure, WHD: 600x800x400 mm, carbon steel, with mounting panel, single-door, with two cam locksImage_1
    Quick view

    RITTAL

    SKU: AX 1059000

    AX 1059000 | AX wall-mounted enclosure, WHD: 600x800x400 mm, carbon steel, with mounting panel, single-door, with two cam locks

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated
    Color: RAL 7035
    Supply Includes: Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit
    Mat Thick - Door: 2 mm (0.08 in)
    Mat Thick - Enclosure: 1.5 mm (0.06 in)
    Mat Thick - Mtg Plate: 2.5 mm (0.1 in)
    Mounting Plate Dims: 545 mm x 775 mm ( 21.5 ? x 30.5 ? )
    Number of Doors: 1
    Position Door Catch: Yes
    Lock Details: Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit
    Width (mm): 600mm
    Height (mm): 800mm
    Depth (mm): 400mm
    Width (in): 23.6in
    Height (in): 31.5in
    Depth (in): 15.7in
    IP Rating: IP 66
    IK Code: IK10
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 35.500
    Net Weight (lb): 78.264
    Gross Weight (kg): 37.360
    Gross Weight (lb): 82.365
    EAN: 4028177813144
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $712.09
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

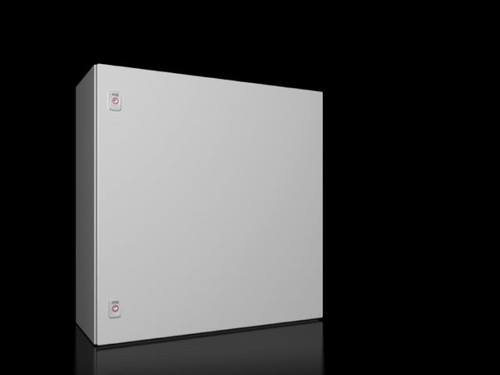

  • AX 1073000 | AX wall-mounted enclosure, WHD: 760x760x300 mm, carbon steel, with mounting panel, single-door, with two cam locksImage_1
    Quick view

    RITTAL

    SKU: AX 1073000

    AX 1073000 | AX wall-mounted enclosure, WHD: 760x760x300 mm, carbon steel, with mounting panel, single-door, with two cam locks

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated
    Color: RAL 7035
    Supply Includes: Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit
    Mat Thick - Door: 2 mm (0.08 in)
    Mat Thick - Enclosure: 1.5 mm (0.06 in)
    Mat Thick - Mtg Plate: 2.5 mm (0.1 in)
    Mounting Plate Dims: 705 mm x 735 mm ( 27.8 ? x 28.9 ? )
    Number of Doors: 1
    Position Door Catch: Yes
    Lock Details: Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit
    Width (mm): 760mm
    Height (mm): 760mm
    Depth (mm): 300mm
    Width (in): 29.9in
    Height (in): 29.9in
    Depth (in): 11.8in
    IP Rating: IP 66
    IK Code: IK10
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 39.900
    Net Weight (lb): 87.964
    Gross Weight (kg): 40.500
    Gross Weight (lb): 89.287
    EAN: 4028177813267
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $770.10
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

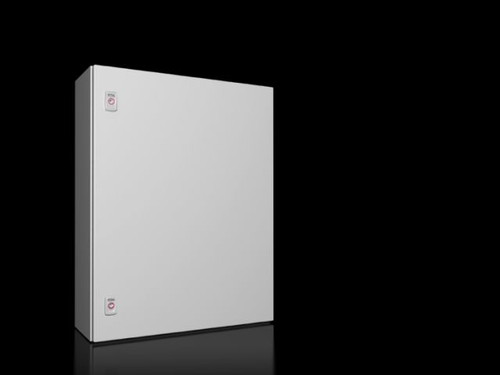

  • AX 1076000 | AX wall-mounted enclosure, WHD: 600x760x210 mm, carbon steel, with mounting panel, single-door, with two cam locksImage_1
    Quick view

    RITTAL

    SKU: AX 1076000

    AX 1076000 | AX wall-mounted enclosure, WHD: 600x760x210 mm, carbon steel, with mounting panel, single-door, with two cam locks

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated
    Color: RAL 7035
    Supply Includes: Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit
    Mat Thick - Door: 2 mm (0.08 in)
    Mat Thick - Enclosure: 1.5 mm (0.06 in)
    Mat Thick - Mtg Plate: 2.5 mm (0.1 in)
    Mounting Plate Dims: 550 mm x 735 mm ( 21.7 ? x 28.9 ? )
    Number of Doors: 1
    Position Door Catch: Yes
    Lock Details: Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit
    Width (mm): 600mm
    Height (mm): 760mm
    Depth (mm): 210mm
    Width (in): 23.6in
    Height (in): 29.9in
    Depth (in): 8.27in
    IP Rating: IP 66
    IK Code: IK10
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 28.500
    Net Weight (lb): 62.832
    Gross Weight (kg): 29.500
    Gross Weight (lb): 65.036
    EAN: 4028177813366
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $519.27
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • AX 1090000 | AX wall-mounted enclosure, WHD: 600x1000x250 mm, carbon steel, with mounting panel, single-door, with two cam locksImage_1
    Quick view

    RITTAL

    SKU: AX 1090000

    AX 1090000 | AX wall-mounted enclosure, WHD: 600x1000x250 mm, carbon steel, with mounting panel, single-door, with two cam locks

    Data Sheet: Data Sheet
    Material: Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal
    Base Material: Carbon steel
    Surface Finish: Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated
    Color: RAL 7035
    Supply Includes: Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit
    Mat Thick - Door: 2 mm (0.08 in)
    Mat Thick - Enclosure: 1.5 mm (0.06 in)
    Mat Thick - Mtg Plate: 2.5 mm (0.1 in)
    Mounting Plate Dims: 545 mm x 975 mm ( 21.5 ? x 38.4 ? )
    Number of Doors: 1
    Position Door Catch: Yes
    Lock Details: Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit
    Width (mm): 600mm
    Depth (mm): 250mm
    Width (in): 23.6in
    Height (in): 39.4in
    Depth (in): 9.84in
    IP Rating: IP 66
    IK Code: IK10
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 38.950
    Net Weight (lb): 85.870
    Gross Weight (kg): 39.500
    Gross Weight (lb): 87.082
    EAN: 4028177813304
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $813.90
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

OUR MANUFACTURERS!

ABB BALDOR

ABB DRIVES

ABB ELECTRIFICATION

ABB ROBOTICS

Terms & Conditions | Contact Us | Our Brands
