AX 1073000 | AX wall-mounted enclosure, WHD: 760x760x300 mm, carbon steel, with mounting panel, single-door, with two cam locks

RITTAL

No reviews yet Write a Review
SKU:
AX 1073000
$770.10
AX 1073000 | AX wall-mounted enclosure, WHD: 760x760x300 mm, carbon steel, with mounting panel, single-door, with two cam locksImage_1
Condition:
New
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
Shipping:
Calculated at Checkout
AX wall-mounted enclosure, WHD: 760x760x300 mm, carbon steel, with mounting panel, single-door, with two cam locks View full description
$770.10
42 people looking at this.

Description

Rittal AX 1073000

AX wall-mounted enclosure, WHD: 760x760x300 mm, carbon steel, with mounting panel, single-door, with two cam locks, Basic enclosure AX, carbon steel, 2.5 mm (0.1 in), 705 mm x 735 mm ( 27.8 ? x 28.9 ? ), Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal, Carbon steel, Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated, RAL 7035, Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit, 2 mm (0.08 in), 1.5 mm (0.06 in), 760 mm, 760 mm, 300 mm, 29.9 in, 29.9 in, 11.8 in, IP 66, IK10, NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12, Type 1 | Type 3R | Type 4 | Type 12, 1, Yes, Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit, 94032080, 1 pc(s), 87.964 lbs, 4028177813267, The AX wall-mounted enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX wall-mounted control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be installed and retrofitted easily, quickly and safely on rails without drilling.

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:
RITTAL
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
Data Sheet:
Material:
Housing: Carbon steel Door: Carbon steel, all-round foamed-in PU seal
Base Material:
Carbon steel
Surface Finish:
Housing and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting panel: Zinc-plated
Color:
RAL 7035
Supply Includes:
Housing with door(s) Flange (gland) plate(s) in enclosure base Mounting panel Punched door strip Lock: 3 mm double-bit
Mat Thick - Door:
2 mm (0.08 in)
Mat Thick - Enclosure:
1.5 mm (0.06 in)
Mat Thick - Mtg Plate:
2.5 mm (0.1 in)
Mounting Plate Dims:
705 mm x 735 mm ( 27.8 ? x 28.9 ? )
Number of Doors:
1
Position Door Catch:
Yes
Lock Details:
Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit
Width (mm):
760mm
Height (mm):
760mm
Depth (mm):
300mm
Width (in):
29.9in
Height (in):
29.9in
Depth (in):
11.8in
IP Rating:
IP 66
IK Code:
IK10
NEMA Rating:
NEMA 1 | NEMA 3R | NEMA 4 | NEMA 12
UL Type Rating:
Type 1 | Type 3R | Type 4 | Type 12
Customs Tariff No:
94032080
Packaging Unit:
1 pc(s).
Net Weight (kg):
39.900
Net Weight (lb):
87.964
Gross Weight (kg):
40.500
Gross Weight (lb):
89.287
EAN:
4028177813267
ETIM 9:
EC000261
ETIM 8:
EC000261
ECLASS 8.0:
27180101

Related Products

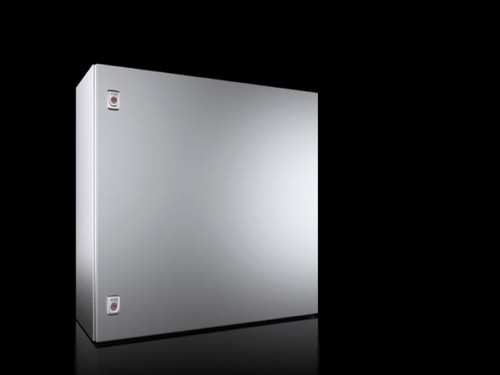

AX 1014000 | AX wall-mounted enclosure, WHD: 760x760x300 mm, 304 stainless steel, with mounting panel, single-door, with two cam locksImage_1
