  • RX 9362000 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 00 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measu

RX 9362000 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 00 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measu

RITTAL

No reviews yet Write a Review
SKU:
RX 9362000
$0.00
RX 9362000 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 00 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measuImage_1
Condition:
New
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 00 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measurement points View full description
$0.00

Description

Rittal RX 9362000

, , RiLineX NH fuse-switch-disconnector in size 00 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measurement points on the cover. The NH fuse-switch-disconnectors have a park position to simplify maintenance work. Connection version with size M8 screw connection. Cable outlet can be individually converted at the top or bottom.

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:
RITTAL
Width:
1.00 (in)
Height:
1.00 (in)
Depth:
1.00 (in)
Data Sheet:
Material:
Polyamide (PA 6) Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-plated
Color:
RAL 9005 RAL 35745
Width (mm):
106mm
Height (mm):
194.2mm
Depth (mm):
104.5mm
Width (in):
4.17in
Height (in):
7.65in
Depth (in):
4.11in
Voltage (V):
690 V AC
IP Rating:
IP 2XB
Customs Tariff No:
85369095
Packaging Unit:
1 pc(s).
Net Weight (kg):
1.015
Net Weight (lb):
2.238
Gross Weight (kg):
1.023
Gross Weight (lb):
2.255
ETIM 9:
EC001040

Related Products

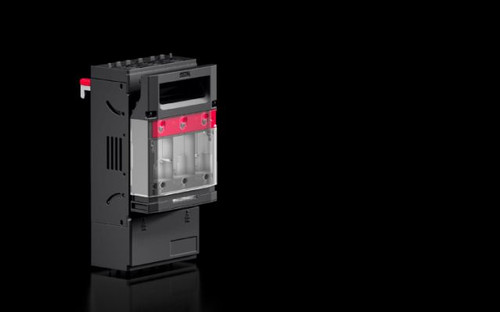

RX 9362035 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 00 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measuImage_1
Quick view

RITTAL

SKU: RX 9362035

RX 9362035 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 00 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measu

Data Sheet: Data Sheet
Material: Polyamide (PA 6) Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-plated
Color: RAL 9005 RAL 35745
Supply Includes: Incl. connection plug for electrical fuse monitoring
Width (mm): 106mm
Height (mm): 229.5mm
Depth (mm): 104.5mm
Width (in): 4.17in
Height (in): 9.04in
Depth (in): 4.11in
Voltage (V): 690 V AC
IP Rating: IP 2XB
Customs Tariff No: 85369095
Packaging Unit: 1 pc(s).
Net Weight (kg): 1.155
Net Weight (lb): 2.546
Gross Weight (kg): 1.175
Gross Weight (lb): 2.590
ETIM 9: EC001040
$0.00
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List
RX 9362005 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 00 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measuImage_1
Quick view

RITTAL

SKU: RX 9362005

RX 9362005 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 00 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measu

Data Sheet: Data Sheet
Material: Polyamide (PA 6) Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-plated
Color: RAL 9005 RAL 35745
Supply Includes: Incl. connection plug for electrical fuse monitoring
Width (mm): 106mm
Height (mm): 229.5mm
Depth (mm): 104.5mm
Width (in): 4.17in
Height (in): 9.04in
Depth (in): 4.11in
Voltage (V): 690 V AC
IP Rating: IP 2XB
Customs Tariff No: 85369095
Packaging Unit: 1 pc(s).
Net Weight (kg): 1.135
Net Weight (lb): 2.502
Gross Weight (kg): 1.155
Gross Weight (lb): 2.546
ETIM 9: EC001040
$0.00
Please Call/Email for Stock Availability (864)-458-9988
Add to Your List

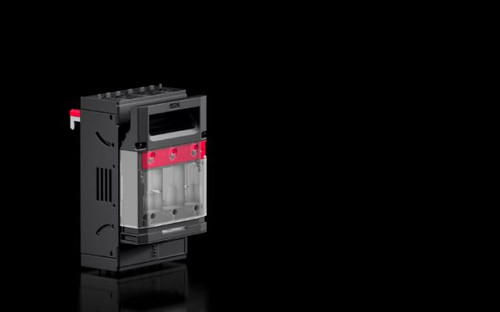

RX 9362030 | RiLineX NH fuse switch disconnector, RiLineX NH fuse-switch-disconnector in size 00 for 60 mm busbar systems. The cover is lockable, sealable and features visual fuse monitoring. The safe voltage test takes place via the integrated measuImage_1
