Description

Rittal WM 8017548

Name: WM 8017548 | These flange mount disconnect wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include
Brand: RITTAL
SKU: WM 8017548
Price: 876.71 USD
Availability: InStock

These flange mount disconnect wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include a cold rolled steel body and door, and a zinc plated mounting panel., WM wall-mounted disconnect enclosure, 2.5 mm (0.1 in), 549 mm x 570 mm ( 21.6 ? x 22.4 ? ), Door: Carbon steel, 2.0 mm, all-round foamed-in PU seal Housing: Carbon steel Mounting plate: Carbon steel, zinc-plated, Dipcoat-primed and powder-coated, textured paint, RAL 7035, Housing with door(s) Door hinged on left Mounting plate Rear wall mounting holes Flange door with universal disconnect cutout 2-point latching L-Handle, 2 mm (0.08 in), 2 mm (0.08 in), 650 mm, 600 mm, 210 mm, 25.6 in, 23.6 in, 8.27 in, NEMA 4 | UL Type 4/3R/12, 8538100000, 1 pc(s), 126.367 lbs, , These flange mount disconnect wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include a cold rolled steel body and door, and a zinc plated mounting panel.

Docs/Downloads

Data Sheet

Rittal ECatalog

Rittal Configurator

Videos

Rittal Videos

Carolina Motion Controls Videos

Extra Information

Brand:

RITTAL

Width:

25.60 (in)

Height:

23.60 (in)

Depth:

8.27 (in)

Data Sheet:

Material:

Door: Carbon steel, 2.0 mm, all-round foamed-in PU seal Housing: Carbon steel Mounting plate: Carbon steel, zinc-plated

Surface Finish:

Dipcoat-primed and powder-coated, textured paint

Color:

RAL 7035

Supply Includes:

Housing with door(s) Door hinged on left Mounting plate Rear wall mounting holes Flange door with universal disconnect cutout 2-point latching L-Handle

Mat Thick - Door:

2 mm (0.08 in)

Mat Thick - Enclosure:

2 mm (0.08 in)

Mat Thick - Mtg Plate:

2.5 mm (0.1 in)

Mounting Plate Dims:

549 mm x 570 mm ( 21.6 ? x 22.4 ? )

Width (mm):

650mm

Height (mm):

600mm

Depth (mm):

210mm

Width (in):

25.6in

Height (in):

23.6in

Depth (in):

8.27in

NEMA Rating:

NEMA 4 | UL Type 4/3R/12

Customs Tariff No:

8538100000

Packaging Unit:

1 pc(s).

Net Weight (kg):

57.319

Net Weight (lb):

126.367

Gross Weight (kg):

69.720

Gross Weight (lb):

153.706

UPC Code:

83129

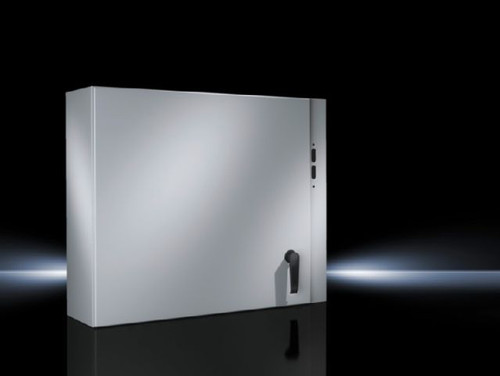

WM 8017596 | These flange mount disconnect wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include
