Basic enclosure AX, stainless steel

(Showing 8 of 20)
Compare
Show 12 All
  • AX 1016000 | AX wall-mounted enclosure, WHD: 800x1000x300 mm, 304 stainless steel, with mounting panel, single-door, with two cam locksImage_1
    Quick view

    RITTAL

    SKU: AX 1016000

    AX 1016000 | AX wall-mounted enclosure, WHD: 800x1000x300 mm, 304 stainless steel, with mounting panel, single-door, with two cam locks

    Data Sheet: Data Sheet
    Material: Housing: Stainless steel Door: Stainless steel, all-round foamed-in PU seal Mounting plate: Carbon steel Stainless steel 1.4301 (AISI 304)
    Base Material: Stainless steel 1.4301 (AISI 304)
    Surface Finish: Housing and door: Brushed, grain 400, peak-to-valley height < 0.8 µm Mounting panel: Zinc-plated
    Supply Includes: Housing with door(s), swing angle 130° Mounting panel Lock: 3 mm double-bit
    Mat Thick - Door: 2 mm (0.08 in)
    Mat Thick - Enclosure: 1.5 mm (0.06 in)
    Mat Thick - Mtg Plate: 2.5 mm (0.1 in)
    Mounting Plate Dims: 745 mm x 975 mm ( 29.3 ? x 38.4 ? )
    Number of Doors: 1
    Lock Details: Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit Material lock: Die-cast zinc
    Width (mm): 800mm
    Depth (mm): 300mm
    Width (in): 31.5in
    Height (in): 39.4in
    Depth (in): 11.8in
    IP Rating: IP 66
    IK Code: IK10
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 4X | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 4X | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 50.300
    Net Weight (lb): 110.892
    Gross Weight (kg): 51.000
    Gross Weight (lb): 112.436
    EAN: 4028177815025
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $2,948.56
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • AX 1017000 | AX wall-mounted enclosure, WHD: 800x1200x300 mm, 304 stainless steel, with mounting panel, single-door, with 3-point lock systemImage_1
    Quick view

    RITTAL

    SKU: AX 1017000

    AX 1017000 | AX wall-mounted enclosure, WHD: 800x1200x300 mm, 304 stainless steel, with mounting panel, single-door, with 3-point lock system

    Data Sheet: Data Sheet
    Material: Housing: Stainless steel Door: Stainless steel, all-round foamed-in PU seal Mounting plate: Carbon steel Stainless steel 1.4301 (AISI 304)
    Base Material: Stainless steel 1.4301 (AISI 304)
    Surface Finish: Housing and door: Brushed, grain 400, peak-to-valley height < 0.8 µm Mounting panel: Zinc-plated
    Supply Includes: Housing with door(s), swing angle 130° Mounting panel Lock: 3 mm double-bit
    Mat Thick - Door: 2 mm (0.08 in)
    Mat Thick - Enclosure: 1.5 mm (0.06 in)
    Mat Thick - Mtg Plate: 2.5 mm (0.1 in)
    Mounting Plate Dims: 745 mm x 1,175 mm ( 29.3 ? x 46.3 ? )
    Number of Doors: 1
    Lock Details: Lock version: 3-point locking system No. of locks: 1 Lock Insert: 3 mm double-bit Material lock: Stainless steel 1.4404 (AISI 316L)
    Width (mm): 800mm
    Depth (mm): 300mm
    Width (in): 31.5in
    Height (in): 47.2in
    Depth (in): 11.8in
    IP Rating: IP 66
    IK Code: IK10
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 4X | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 4X | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 56.000
    Net Weight (lb): 123.459
    Gross Weight (kg): 61.000
    Gross Weight (lb): 134.482
    EAN: 4028177815032
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $3,276.49
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

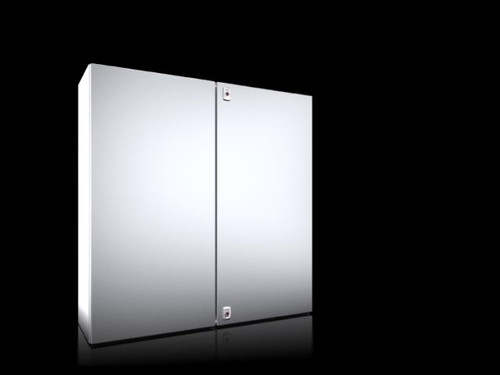

  • AX 1018000 | AX wall-mounted enclosure, WHD: 1000x1000x300 mm, 304 stainless steel, with mounting panel, two-door, with two cam locksImage_1
    Quick view

    RITTAL

    SKU: AX 1018000

    AX 1018000 | AX wall-mounted enclosure, WHD: 1000x1000x300 mm, 304 stainless steel, with mounting panel, two-door, with two cam locks

    Data Sheet: Data Sheet
    Material: Housing: Stainless steel Door: Stainless steel, all-round foamed-in PU seal Mounting plate: Carbon steel Stainless steel 1.4301 (AISI 304)
    Base Material: Stainless steel 1.4301 (AISI 304)
    Surface Finish: Housing and door: Brushed, grain 400, peak-to-valley height < 0.8 µm Mounting panel: Zinc-plated
    Supply Includes: Housing with door(s), swing angle 130° Mounting panel Lock: 3 mm double-bit
    Mat Thick - Door: 2 mm (0.08 in)
    Mat Thick - Enclosure: 1.5 mm (0.06 in)
    Mat Thick - Mtg Plate: 2.5 mm (0.1 in)
    Mounting Plate Dims: 945 mm x 975 mm ( 37.2 ? x 38.4 ? )
    Number of Doors: 2
    Lock Details: Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit Material lock: Die-cast zinc
    Depth (mm): 300mm
    Width (in): 39.4in
    Height (in): 39.4in
    Depth (in): 11.8in
    IP Rating: IP 55
    IK Code: IK10
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 60.500
    Net Weight (lb): 133.380
    Gross Weight (kg): 64.000
    Gross Weight (lb): 141.096
    EAN: 4028177815049
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $3,937.77
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • AX 1019000 | AX wall-mounted enclosure, WHD: 1000x1200x300 mm, 304 stainless steel, with mounting panel, two-door, with 3-point lock systemImage_1
    Quick view

    RITTAL

    SKU: AX 1019000

    AX 1019000 | AX wall-mounted enclosure, WHD: 1000x1200x300 mm, 304 stainless steel, with mounting panel, two-door, with 3-point lock system

    Data Sheet: Data Sheet
    Material: Housing: Stainless steel Door: Stainless steel, all-round foamed-in PU seal Mounting plate: Carbon steel Stainless steel 1.4301 (AISI 304)
    Base Material: Stainless steel 1.4301 (AISI 304)
    Surface Finish: Housing and door: Brushed, grain 400, peak-to-valley height < 0.8 µm Mounting panel: Zinc-plated
    Supply Includes: Housing with door(s), swing angle 130° Mounting panel Lock: 3 mm double-bit
    Mat Thick - Door: 2 mm (0.08 in)
    Mat Thick - Enclosure: 1.5 mm (0.06 in)
    Mat Thick - Mtg Plate: 2.5 mm (0.1 in)
    Mounting Plate Dims: 945 mm x 1,175 mm ( 37.2 ? x 46.3 ? )
    Number of Doors: 2
    Lock Details: Lock version: 3-point locking system No. of locks: 1 Lock Insert: 3 mm double-bit Material lock: Stainless steel 1.4404 (AISI 316L)
    Depth (mm): 300mm
    Width (in): 39.4in
    Height (in): 47.2in
    Depth (in): 11.8in
    IP Rating: IP 55
    IK Code: IK10
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 71.400
    Net Weight (lb): 157.410
    Gross Weight (kg): 78.000
    Gross Weight (lb): 171.960
    EAN: 4028177815056
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $4,230.02
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • AX 1302000 | AX wall-mounted enclosure, WHD: 300x380x210 mm, 316 stainless steel, with mounting panel, single-door, with one cam lockImage_1
    Quick view

    RITTAL

    SKU: AX 1302000

    AX 1302000 | AX wall-mounted enclosure, WHD: 300x380x210 mm, 316 stainless steel, with mounting panel, single-door, with one cam lock

    Data Sheet: Data Sheet
    Material: Housing: Stainless steel Door: Stainless steel, all-round foamed-in PU seal Mounting plate: Carbon steel Stainless steel 1.4404 (AISI 316L)
    Base Material: Stainless steel 1.4404 (AISI 316L)
    Surface Finish: Housing and door: Brushed, grain 400, peak-to-valley height < 0.8 µm Mounting panel: Zinc-plated
    Supply Includes: Housing with door(s), swing angle 130° Mounting panel Lock: 3 mm double-bit
    Mat Thick - Door: 1.5 mm (0.06 in)
    Mat Thick - Enclosure: 1.5 mm (0.06 in)
    Mat Thick - Mtg Plate: 2 mm (0.08 in)
    Mounting Plate Dims: 250 mm x 355 mm ( 9.84 ? x 14 ? )
    Number of Doors: 1
    Lock Details: Lock version: Cam No. of locks: 1 Lock Insert: 3 mm double-bit Material lock: Stainless steel 1.4404 (AISI 316L)
    Width (mm): 300mm
    Height (mm): 380mm
    Depth (mm): 210mm
    Width (in): 11.8in
    Height (in): 15in
    Depth (in): 8.27in
    IP Rating: IP 66
    IK Code: IK10
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 4X | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 4X | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 6.000
    Net Weight (lb): 13.228
    Gross Weight (kg): 8.400
    Gross Weight (lb): 18.519
    EAN: 4028177815070
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $1,017.10
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • AX 1303000 | AX wall-mounted enclosure, WHD: 380x380x210 mm, 316 stainless steel, with mounting panel, single-door, with one cam lockImage_1
    Quick view

    RITTAL

    SKU: AX 1303000

    AX 1303000 | AX wall-mounted enclosure, WHD: 380x380x210 mm, 316 stainless steel, with mounting panel, single-door, with one cam lock

    Data Sheet: Data Sheet
    Material: Housing: Stainless steel Door: Stainless steel, all-round foamed-in PU seal Mounting plate: Carbon steel Stainless steel 1.4404 (AISI 316L)
    Base Material: Stainless steel 1.4404 (AISI 316L)
    Surface Finish: Housing and door: Brushed, grain 400, peak-to-valley height < 0.8 µm Mounting panel: Zinc-plated
    Supply Includes: Housing with door(s), swing angle 130° Mounting panel Lock: 3 mm double-bit
    Mat Thick - Door: 1.5 mm (0.06 in)
    Mat Thick - Enclosure: 1.5 mm (0.06 in)
    Mat Thick - Mtg Plate: 2 mm (0.08 in)
    Mounting Plate Dims: 330 mm x 355 mm ( 13 ? x 14 ? )
    Number of Doors: 1
    Lock Details: Lock version: Cam No. of locks: 1 Lock Insert: 3 mm double-bit Material lock: Stainless steel 1.4404 (AISI 316L)
    Width (mm): 380mm
    Height (mm): 380mm
    Depth (mm): 210mm
    Width (in): 15in
    Height (in): 15in
    Depth (in): 8.27in
    IP Rating: IP 66
    IK Code: IK10
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 4X | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 4X | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 9.310
    Net Weight (lb): 20.525
    Gross Weight (kg): 9.800
    Gross Weight (lb): 21.605
    EAN: 4028177815087
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $1,155.49
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • AX 1304000 | AX wall-mounted enclosure, WHD: 600x600x210 mm, 316 stainless steel, with mounting panel, single-door, with one cam lockImage_1
    Quick view

    RITTAL

    SKU: AX 1304000

    AX 1304000 | AX wall-mounted enclosure, WHD: 600x600x210 mm, 316 stainless steel, with mounting panel, single-door, with one cam lock

    Data Sheet: Data Sheet
    Material: Housing: Stainless steel Door: Stainless steel, all-round foamed-in PU seal Mounting plate: Carbon steel Stainless steel 1.4404 (AISI 316L)
    Base Material: Stainless steel 1.4404 (AISI 316L)
    Surface Finish: Housing and door: Brushed, grain 400, peak-to-valley height < 0.8 µm Mounting panel: Zinc-plated
    Supply Includes: Housing with door(s), swing angle 130° Mounting panel Lock: 3 mm double-bit
    Mat Thick - Door: 1.5 mm (0.06 in)
    Mat Thick - Enclosure: 1.5 mm (0.06 in)
    Mat Thick - Mtg Plate: 2.5 mm (0.1 in)
    Mounting Plate Dims: 550 mm x 575 mm ( 21.7 ? x 22.6 ? )
    Number of Doors: 1
    Lock Details: Lock version: Cam No. of locks: 2 Lock Insert: 3 mm double-bit Material lock: Stainless steel 1.4404 (AISI 316L)
    Width (mm): 600mm
    Height (mm): 600mm
    Depth (mm): 210mm
    Width (in): 23.6in
    Height (in): 23.6in
    Depth (in): 8.27in
    IP Rating: IP 66
    IK Code: IK10
    NEMA Rating: NEMA 1 | NEMA 3R | NEMA 4 | NEMA 4X | NEMA 12
    UL Type Rating: Type 1 | Type 3R | Type 4 | Type 4X | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 21.000
    Net Weight (lb): 46.297
    Gross Weight (kg): 21.980
    Gross Weight (lb): 48.458
    EAN: 4028177815094
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $1,793.96
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • AX 1305000 | AX wall-mounted enclosure, WHD: 1000x1200x300 mm, 316 stainless steel, with mounting panel, two-door, with 3-point lock systemImage_1
    Quick view

    RITTAL

    SKU: AX 1305000

    AX 1305000 | AX wall-mounted enclosure, WHD: 1000x1200x300 mm, 316 stainless steel, with mounting panel, two-door, with 3-point lock system

    Data Sheet: Data Sheet
    Material: Housing: Stainless steel Door: Stainless steel, all-round foamed-in PU seal Mounting plate: Carbon steel Stainless steel 1.4404 (AISI 316L)
    Base Material: Stainless steel 1.4404 (AISI 316L)
    Surface Finish: Housing and door: Brushed, grain 400, peak-to-valley height < 0.8 µm Mounting panel: Zinc-plated
    Supply Includes: Housing with door(s), swing angle 130° Mounting panel Lock: 3 mm double-bit
    Mat Thick - Door: 2 mm (0.08 in)
    Mat Thick - Enclosure: 1.5 mm (0.06 in)
    Mat Thick - Mtg Plate: 2.5 mm (0.1 in)
    Mounting Plate Dims: 945 mm x 1,175 mm ( 37.2 ? x 46.3 ? )
    Number of Doors: 2
    Lock Details: Lock version: 3-point locking system No. of locks: 1 Lock Insert: 3 mm double-bit Material lock: Die-cast zinc
    Depth (mm): 300mm
    Width (in): 39.4in
    Height (in): 47.2in
    Depth (in): 11.8in
    IP Rating: IP 55
    IK Code: IK10
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 71.400
    Net Weight (lb): 157.410
    Gross Weight (kg): 76.000
    Gross Weight (lb): 167.551
    EAN: 4028177815100
    ETIM 9: EC000261
    ETIM 8: EC000261
    ECLASS 8.0: 27180101
    $4,376.32
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
