Baying systems TS 8

(Showing 12 of 63)
Compare
Show 12 24 36 48 All

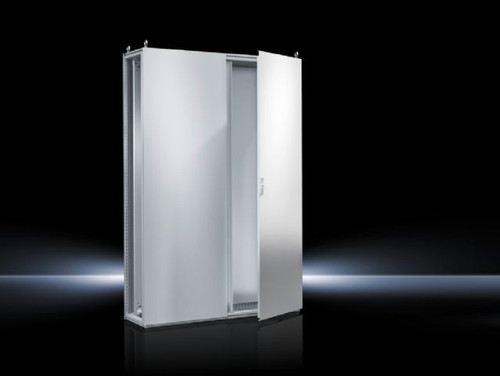

  • TS 8205500 | TS Bayed enclosure system, WHD: 1200x2000x500 mm, Sheet steel, with mounting plate, two doors at the frontImage_1
    Quick view

    RITTAL

    SKU: TS 8205500

    TS 8205500 | TS Bayed enclosure system, WHD: 1200x2000x500 mm, Sheet steel, with mounting plate, two doors at the front

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base plates: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and base plates: Zinc-plated
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting panel 2 TS punched rails, 18 x 38 mm
    Mounting Plate Dims: 1,099 mm x 1,896 mm ( 43.3 ? x 74.6 ? )
    Number of Doors: 2
    Depth (mm): 500mm
    Width (in): 47.2in
    Height (in): 78.7in
    Depth (in): 19.7in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 181.070
    Net Weight (lb): 399.191
    Gross Weight (kg): 190.600
    Gross Weight (lb): 420.201
    EAN: 4028177250871
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $3,527.31
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8206500 | TS Bayed enclosure system, WHD: 1200x2000x600 mm, Sheet steel, with mounting plate, two doors at the frontImage_1
    Quick view

    RITTAL

    SKU: TS 8206500

    TS 8206500 | TS Bayed enclosure system, WHD: 1200x2000x600 mm, Sheet steel, with mounting plate, two doors at the front

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base plates: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and base plates: Zinc-plated
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting panel 2 TS punched rails, 18 x 38 mm 2 support strips fitted in the enclosu
    Mounting Plate Dims: 1,099 mm x 1,896 mm ( 43.3 ? x 74.6 ? )
    Number of Doors: 2
    Depth (mm): 600mm
    Width (in): 47.2in
    Height (in): 78.7in
    Depth (in): 23.6in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 184.870
    Net Weight (lb): 407.568
    Gross Weight (kg): 194.600
    Gross Weight (lb): 429.019
    EAN: 4028177250888
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $3,539.06
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8208500 | TS Bayed enclosure system, WHD: 1200x2000x800 mm, Sheet steel, with mounting plate, two doors at the frontImage_1
    Quick view

    RITTAL

    SKU: TS 8208500

    TS 8208500 | TS Bayed enclosure system, WHD: 1200x2000x800 mm, Sheet steel, with mounting plate, two doors at the front

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base plates: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and base plates: Zinc-plated
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting panel 2 TS punched rails, 18 x 38 mm 2 support strips fitted in the enclosu
    Mounting Plate Dims: 1,099 mm x 1,896 mm ( 43.3 ? x 74.6 ? )
    Number of Doors: 2
    Depth (mm): 800mm
    Width (in): 47.2in
    Height (in): 78.7in
    Depth (in): 31.5in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 197.000
    Net Weight (lb): 434.310
    Gross Weight (kg): 203.000
    Gross Weight (lb): 447.538
    EAN: 4028177250895
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $3,745.85
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8225500 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on Image_1
    Quick view

    RITTAL

    SKU: TS 8225500

    TS 8225500 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Enclosure frame with door(s) Roof plate Rear panel, detachable 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting plate 2 TS punched rails, 18 x 38 mm
    Number of Doors: 2
    Depth (mm): 500mm
    Width (in): 47.2in
    Height (in): 86.6in
    Depth (in): 19.7in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 9403200082
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 291.005
    Net Weight (lb): 641.555
    Gross Weight (kg): 308.642
    Gross Weight (lb): 680.438
    UPC Code: 37986
    EAN: 4028177505759
    ECLASS 8.0: 27180101
    $3,745.85
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8226500 | TS Bayed enclosure system, WHD: 1200x2200x600 mm, Sheet steel, with mounting plate, two doors at the frontImage_1
    Quick view

    RITTAL

    SKU: TS 8226500

    TS 8226500 | TS Bayed enclosure system, WHD: 1200x2200x600 mm, Sheet steel, with mounting plate, two doors at the front

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base plates: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and base plates: Zinc-plated
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting panel 2 TS punched rails, 18 x 38 mm 2 support strips fitted in the enclosu
    Mounting Plate Dims: 1,099 mm x 2,096 mm ( 43.3 ? x 82.5 ? )
    Number of Doors: 2
    Depth (mm): 600mm
    Width (in): 47.2in
    Height (in): 86.6in
    Depth (in): 23.6in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 197.600
    Net Weight (lb): 435.633
    Gross Weight (kg): 208.000
    Gross Weight (lb): 458.561
    EAN: 4028177250901
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $3,930.38
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8228500 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on Image_1
    Quick view

    RITTAL

    SKU: TS 8228500

    TS 8228500 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Enclosure frame with door(s) Roof plate Rear panel, detachable 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting plate 2 TS punched rails, 18 x 38 mm
    Number of Doors: 2
    Depth (mm): 800mm
    Width (in): 47.2in
    Height (in): 86.6in
    Depth (in): 31.5in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 9403200082
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 446.493
    Net Weight (lb): 984.347
    Gross Weight (kg): 473.545
    Gross Weight (lb): 1043.987
    UPC Code: 37988
    EAN: 4028177500525
    ECLASS 8.0: 27180101
    $4,029.97
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8245500 | TS Bayed enclosure system, WHD: 1200x1400x500 mm, Sheet steel, with mounting plate, single door at the frontImage_1
    Quick view

    RITTAL

    SKU: TS 8245500

    TS 8245500 | TS Bayed enclosure system, WHD: 1200x1400x500 mm, Sheet steel, with mounting plate, single door at the front

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base plates: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and base plates: Zinc-plated
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting panel 2 TS punched rails, 18 x 38 mm
    Mounting Plate Dims: 1,099 mm x 1,296 mm ( 43.3 ? x 51 ? )
    Number of Doors: 2
    Depth (mm): 500mm
    Width (in): 47.2in
    Height (in): 55.1in
    Depth (in): 19.7in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 130.960
    Net Weight (lb): 288.717
    Gross Weight (kg): 143.500
    Gross Weight (lb): 316.363
    EAN: 4028177250918
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $2,794.37
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8265500 | TS Bayed enclosure system, WHD: 1200x1600x500 mm, Sheet steel, with mounting plate, two doors at the frontImage_1
    Quick view

    RITTAL

    SKU: TS 8265500

    TS 8265500 | TS Bayed enclosure system, WHD: 1200x1600x500 mm, Sheet steel, with mounting plate, two doors at the front

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base plates: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and base plates: Zinc-plated
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting panel 2 TS punched rails, 18 x 38 mm
    Mounting Plate Dims: 1,099 mm x 1,496 mm ( 43.3 ? x 58.9 ? )
    Number of Doors: 2
    Depth (mm): 500mm
    Width (in): 47.2in
    Height (in): 63in
    Depth (in): 19.7in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 145.300
    Net Weight (lb): 320.331
    Gross Weight (kg): 159.300
    Gross Weight (lb): 351.196
    EAN: 4028177386679
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $2,798.28
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8284500 | TS Bayed enclosure system, WHD: 1200x1800x400 mm, Sheet steel, with mounting plate, two doors at the frontImage_1
    Quick view

    RITTAL

    SKU: TS 8284500

    TS 8284500 | TS Bayed enclosure system, WHD: 1200x1800x400 mm, Sheet steel, with mounting plate, two doors at the front

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base plates: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and base plates: Zinc-plated
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting panel 2 TS punched rails, 18 x 38 mm
    Mounting Plate Dims: 1,099 mm x 1,696 mm ( 43.3 ? x 66.8 ? )
    Number of Doors: 2
    Depth (mm): 400mm
    Width (in): 47.2in
    Height (in): 70.9in
    Depth (in): 15.7in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 162.070
    Net Weight (lb): 357.303
    Gross Weight (kg): 170.600
    Gross Weight (lb): 376.108
    EAN: 4028177250925
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $3,446.07
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

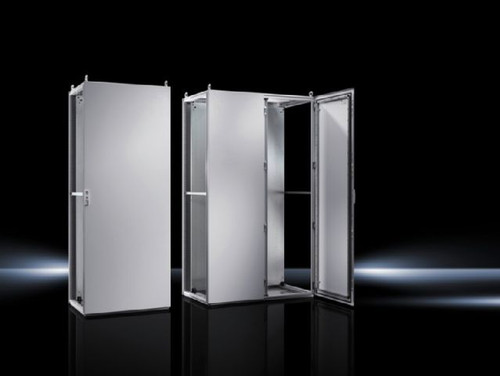

  • TS 8285500 | TS Bayed enclosure system, WHD: 1200x1800x500 mm, Sheet steel, with mounting plate, two doors at the frontImage_1
    Quick view

    RITTAL

    SKU: TS 8285500

    TS 8285500 | TS Bayed enclosure system, WHD: 1200x1800x500 mm, Sheet steel, with mounting plate, two doors at the front

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base plates: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and base plates: Zinc-plated
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting panel 2 TS punched rails, 18 x 38 mm
    Mounting Plate Dims: 1,099 mm x 1,696 mm ( 43.3 ? x 66.8 ? )
    Number of Doors: 2
    Depth (mm): 500mm
    Width (in): 47.2in
    Height (in): 70.9in
    Depth (in): 19.7in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 164.635
    Net Weight (lb): 362.958
    Gross Weight (kg): 173.300
    Gross Weight (lb): 382.061
    EAN: 4028177250932
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $3,506.39
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8286500 | TS Bayed enclosure system, WHD: 1200x1800x600 mm, Sheet steel, with mounting plate, two doors at the frontImage_1
    Quick view

    RITTAL

    SKU: TS 8286500

    TS 8286500 | TS Bayed enclosure system, WHD: 1200x1800x600 mm, Sheet steel, with mounting plate, two doors at the front

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base plates: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and base plates: Zinc-plated
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting panel 2 TS punched rails, 18 x 38 mm 2 support strips fitted in the enclosu
    Mounting Plate Dims: 1,099 mm x 1,696 mm ( 43.3 ? x 66.8 ? )
    Number of Doors: 2
    Depth (mm): 600mm
    Width (in): 47.2in
    Height (in): 70.9in
    Depth (in): 23.6in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 170.905
    Net Weight (lb): 376.781
    Gross Weight (kg): 179.900
    Gross Weight (lb): 396.611
    EAN: 4028177250949
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $3,527.31
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8405500 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on Image_1
    Quick view

    RITTAL

    SKU: TS 8405500

    TS 8405500 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Gland plate Mounting panel 2 TS punched rails, 18 x 38 mm
    Number of Doors: 1
    Width (mm): 400mm
    Depth (mm): 500mm
    Width (in): 15.7in
    Height (in): 78.7in
    Depth (in): 19.7in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 9403200082
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 169.998
    Net Weight (lb): 374.781
    Gross Weight (kg): 169.998
    Gross Weight (lb): 374.781
    UPC Code: 81085
    ECLASS 8.0: 27180101
    $2,036.47
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

Our Manufacturer Partners!

View All Manufacturers

Terms & Conditions | Contact Us | Our Brands
