Baying systems TS 8

(Showing 12 of 63)
Compare
Show 12 All
  • TS 8865500 | TS Bayed enclosure system, WHD: 800x1600x500 mm, Sheet steel, with mounting plate, single door at the frontImage_1
    Quick view

    RITTAL

    SKU: TS 8865500

    TS 8865500 | TS Bayed enclosure system, WHD: 800x1600x500 mm, Sheet steel, with mounting plate, single door at the front

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base plates: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and base plates: Zinc-plated
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting panel 2 TS punched rails, 18 x 38 mm
    Mounting Plate Dims: 699 mm x 1,496 mm ( 27.5 ? x 58.9 ? )
    Number of Doors: 1
    Width (mm): 800mm
    Depth (mm): 500mm
    Width (in): 31.5in
    Height (in): 63in
    Depth (in): 19.7in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 98.600
    Net Weight (lb): 217.376
    Gross Weight (kg): 104.300
    Gross Weight (lb): 229.942
    EAN: 4028177386662
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $2,561.39
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

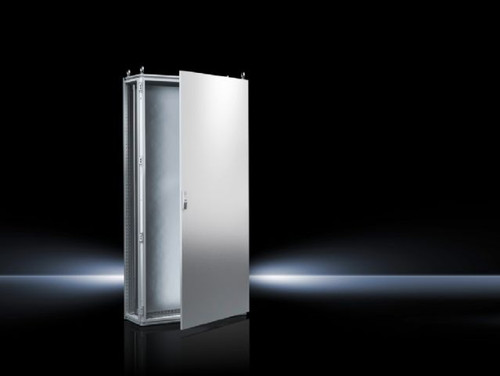

  • TS 8884500 | TS Bayed enclosure system, WHD: 800x1800x400 mm, Sheet steel, with mounting plate, single door at the frontImage_1
    Quick view

    RITTAL

    SKU: TS 8884500

    TS 8884500 | TS Bayed enclosure system, WHD: 800x1800x400 mm, Sheet steel, with mounting plate, single door at the front

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base plates: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and base plates: Zinc-plated
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting panel 2 TS punched rails, 18 x 38 mm
    Mounting Plate Dims: 699 mm x 1,696 mm ( 27.5 ? x 66.8 ? )
    Number of Doors: 1
    Width (mm): 800mm
    Depth (mm): 400mm
    Width (in): 31.5in
    Height (in): 70.9in
    Depth (in): 15.7in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 107.825
    Net Weight (lb): 237.713
    Gross Weight (kg): 113.500
    Gross Weight (lb): 250.224
    EAN: 4028177251090
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $2,286.56
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8885500 | TS Bayed enclosure system, WHD: 800x1800x500 mm, Sheet steel, with mounting plate, single door at the frontImage_1
    Quick view

    RITTAL

    SKU: TS 8885500

    TS 8885500 | TS Bayed enclosure system, WHD: 800x1800x500 mm, Sheet steel, with mounting plate, single door at the front

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base plates: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and base plates: Zinc-plated
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting panel 2 TS punched rails, 18 x 38 mm
    Mounting Plate Dims: 699 mm x 1,696 mm ( 27.5 ? x 66.8 ? )
    Number of Doors: 1
    Width (mm): 800mm
    Depth (mm): 500mm
    Width (in): 31.5in
    Height (in): 70.9in
    Depth (in): 19.7in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 109.060
    Net Weight (lb): 240.436
    Gross Weight (kg): 114.800
    Gross Weight (lb): 253.090
    EAN: 4028177251106
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $2,412.23
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8886500 | TS Bayed enclosure system, WHD: 800x1800x600 mm, Sheet steel, with mounting plate, single door at the frontImage_1
    Quick view

    RITTAL

    SKU: TS 8886500

    TS 8886500 | TS Bayed enclosure system, WHD: 800x1800x600 mm, Sheet steel, with mounting plate, single door at the front

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm Base plates: Carbon steel, 1.5 mm Mounting panel: Carbon steel, 3.0 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and base plates: Zinc-plated
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting panel 2 TS punched rails, 18 x 38 mm 2 support strips fitted in the enclosu
    Mounting Plate Dims: 699 mm x 1,696 mm ( 27.5 ? x 66.8 ? )
    Number of Doors: 1
    Width (mm): 800mm
    Depth (mm): 600mm
    Width (in): 31.5in
    Height (in): 70.9in
    Depth (in): 23.6in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 94032080
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 114.285
    Net Weight (lb): 251.955
    Gross Weight (kg): 120.300
    Gross Weight (lb): 265.216
    EAN: 4028177251113
    ETIM 9: EC000261
    ECLASS 8.0: 27180101
    $2,498.50
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8888500 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on Image_1
    Quick view

    RITTAL

    SKU: TS 8888500

    TS 8888500 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 9403200082
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 265.996
    Net Weight (lb): 586.420
    Gross Weight (kg): 279.996
    Gross Weight (lb): 617.285
    UPC Code: 38098
    ECLASS 8.0: 27180101
    $2,652.93
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8901220 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on Image_1
    Quick view

    RITTAL

    SKU: TS 8901220

    TS 8901220 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Enclosure frame with door(s) Roof plate Rear panel, detachable 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting plate 2 TS punched rails, 18 x 38 mm
    Number of Doors: 2
    Depth (mm): 500mm
    Width (in): 63in
    Height (in): 70.9in
    Depth (in): 19.7in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 9403200082
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 551.146
    Net Weight (lb): 1215.067
    Gross Weight (kg): 551.799
    Gross Weight (lb): 1216.507
    UPC Code: 38114
    ECLASS 8.0: 27180101
    $3,957.90
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8901230 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on Image_1
    Quick view

    RITTAL

    SKU: TS 8901230

    TS 8901230 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Enclosure frame with door(s) Roof plate Rear panel, detachable 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting plate 2 TS punched rails, 18 x 38 mm
    Number of Doors: 2
    Depth (mm): 600mm
    Width (in): 63in
    Height (in): 70.9in
    Depth (in): 23.6in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 9403200082
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 557.760
    Net Weight (lb): 1229.649
    Gross Weight (kg): 558.399
    Gross Weight (lb): 1231.058
    UPC Code: 38115
    ECLASS 8.0: 27180101
    $4,083.57
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8901260 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on Image_1
    Quick view

    RITTAL

    SKU: TS 8901260

    TS 8901260 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Enclosure frame with door(s) Roof plate Rear panel, detachable 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting plate 2 TS punched rails, 18 x 38 mm
    Number of Doors: 2
    Depth (mm): 500mm
    Width (in): 70.9in
    Height (in): 70.9in
    Depth (in): 19.7in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 9403200082
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 559.991
    Net Weight (lb): 1234.567
    Gross Weight (kg): 559.991
    Gross Weight (lb): 1234.567
    UPC Code: 38118
    ECLASS 8.0: 27180101
    $4,617.55
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

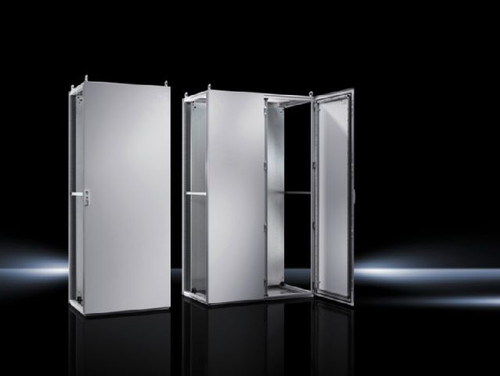

  • TS 8901270 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on Image_1
    Quick view

    RITTAL

    SKU: TS 8901270

    TS 8901270 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Enclosure frame Door(s) Right-hand door catch on single-door enclosures may be swapped to the left Roof plate Rear panel 4 eyebolts Lock: 3 mm double-bit Gland plate Mounting panel 2 TS punched rails, 18 x 38 mm
    Depth (mm): 600mm
    Width (in): 70.9in
    Height (in): 70.9in
    Depth (in): 23.6in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 9403200082
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 589.989
    Net Weight (lb): 1300.702
    Gross Weight (kg): 589.989
    Gross Weight (lb): 1300.702
    UPC Code: 38119
    ECLASS 8.0: 27180101
    $4,821.77
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8901290 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on Image_1
    Quick view

    RITTAL

    SKU: TS 8901290

    TS 8901290 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Enclosure frame with door(s) Roof plate Rear panel, detachable 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting plate 2 TS punched rails, 18 x 38 mm
    Number of Doors: 2
    Depth (mm): 500mm
    Width (in): 63in
    Height (in): 78.7in
    Depth (in): 19.7in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 9403200082
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 537.919
    Net Weight (lb): 1185.907
    Gross Weight (kg): 539.601
    Gross Weight (lb): 1189.615
    UPC Code: 38121
    ECLASS 8.0: 27180101
    $4,355.71
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8901400 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on Image_1
    Quick view

    RITTAL

    SKU: TS 8901400

    TS 8901400 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Enclosure frame with door(s) Roof plate Rear panel, detachable 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting plate 2 TS punched rails, 18 x 38 mm
    Number of Doors: 2
    Depth (mm): 600mm
    Width (in): 63in
    Height (in): 78.7in
    Depth (in): 23.6in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 9403200082
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 544.533
    Net Weight (lb): 1200.488
    Gross Weight (kg): 546.301
    Gross Weight (lb): 1204.386
    UPC Code: 38122
    ECLASS 8.0: 27180101
    $4,405.50
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List
  • TS 8901410 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on Image_1
    Quick view

    RITTAL

    SKU: TS 8901410

    TS 8901410 | Baying systems TS 8, Due to its symmetrical profile in terms of width and depth, the TS 8 baying system, made from carbon steel, saves considerable space and facilitates easy internal installation. It also allows a baying arrangement on

    Data Sheet: Data Sheet
    Material: Enclosure frame: Carbon steel, 1.5 mm Roof: Carbon steel, 1.5 mm Door: Carbon steel, 2.0 mm Rear wall: carbon steel, 1.5 mm
    Base Material: Carbon steel
    Surface Finish: Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint
    Color: RAL 7035
    Supply Includes: Enclosure frame with door(s) Roof plate Rear panel, detachable 4 eyebolts Lock: 3 mm double-bit Base Plates Mounting plate 2 TS punched rails, 18 x 38 mm
    Number of Doors: 2
    Depth (mm): 800mm
    Width (in): 63in
    Height (in): 78.7in
    Depth (in): 31.5in
    IP Rating: IP 55
    IK Code: IK09
    NEMA Rating: NEMA 1 | NEMA 12
    UL Type Rating: Type 1 | Type 12
    Customs Tariff No: 9403200082
    Packaging Unit: 1 pc(s).
    Net Weight (kg): 566.578
    Net Weight (lb): 1249.089
    Gross Weight (kg): 567.200
    Gross Weight (lb): 1250.460
    UPC Code: 38123
    ECLASS 8.0: 27180101
    $4,612.29
    Please Call/Email for Stock Availability (864)-458-9988
    Add to Your List

OUR MANUFACTURERS!

ABB BALDOR

ABB DRIVES

ABB ELECTRIFICATION

ABB ROBOTICS

Terms & Conditions | Contact Us | Our Brands
