RITTAL
SKU: SK 3177000
SK 3177000 | SK filter mat, for tangential fans SK 3144/3145, for front outlet grilles SK 3176, WHD: 425 x 85 x 8 mm
Data Sheet: Data SheetMaterial: Chemical fibersWidth (mm): 425mmHeight (mm): 85mmDepth (mm): 8mmWidth (in): 16.7inHeight (in): 3.35inDepth (in): 0.31inCustoms Tariff No: 56039390Packaging Unit: 5 pc(s).Net Weight (kg): 0.020Net Weight (lb): 0.044Gross Weight (kg): 0.025Gross Weight (lb): 0.055EAN: 4028177038219ETIM 9: EC002513ETIM 8: EC002513ECLASS 8.0: 27180706$72.52Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SK 3179801
SK 3179801 | SK Blue e+ S cooling unit, wall-mounted, 0.5 kW, R-1234yf, 110-240 V, 1~, 50-60 Hz, carbon steel, WxHxD: 300 x 570 x 199 mm
Data Sheet: Data SheetMaterial: Carbon steelColor: Housing: RAL 7035 Louvered grille: RAL 7012Supply Includes: Assembly components Wired ready for connection (plug-in terminal strip)Width (mm): 300mmHeight (mm): 570mmDepth (mm): 199mmWidth (in): 11.8inHeight (in): 22.4inDepth (in): 7.83inCooling Output (W): 35Voltage (V): 110 V - 240 V, 1~, 50 Hz/60 HzRated Power (W): 35IP Rating: Internal circuit IP 55NEMA Rating: UL Type 1 | UL Type 12Customs Tariff No: 84158200Packaging Unit: 1 pc(s).Net Weight (kg): 12.840Net Weight (lb): 28.307Gross Weight (kg): 13.840Gross Weight (lb): 30.512EAN: 4028177962569ETIM 9: EC000855ETIM 8: EC000855ECLASS 8.0: 27180704$3,869.28Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SK 3180800
SK 3180800 | SK cooling unit Blue e+ S, wall mounted, 0.78 kW, 110-240 V, 1~, 50-60 Hz, carbon steel, HWD: 570 x 300 x 250 mm
Data Sheet: Data SheetMaterial: Carbon steelColor: Housing: RAL 7035 Louvered grille: RAL 7012Supply Includes: Assembly components Wired ready for connection (plug-in terminal strip) Integral electric condensate evaporationWidth (mm): 300mmHeight (mm): 570mmDepth (mm): 250mmWidth (in): 11.8inHeight (in): 22.4inDepth (in): 9.84inCooling Output (W): 35Voltage (V): 110 V - 240 V, 1~, 50 Hz/60 HzRated Power (W): 35IP Rating: Internal circuit IP 55NEMA Rating: UL Type 1 | UL Type 12Customs Tariff No: 84158200Packaging Unit: 1 pc(s).Net Weight (kg): 16.500Net Weight (lb): 36.376Gross Weight (kg): 16.950Gross Weight (lb): 37.368EAN: 4028177966833ETIM 9: EC000855ETIM 8: EC000855ECLASS 8.0: 27180704$4,712.40Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SK 3181135
SK 3181135 | Absorbing mat for folded filter, To achieve IP55 degree of protection (except with 3245.xxx) in conjunction with the folded filter of the Blue e+ filter fan., Absorber mat: 100% polyester, White, Width: 173 mm Height: 173 mm, 0.034 kg, N
Data Sheet: Data SheetMaterial: Absorber mat: 100% polyesterColor: WhiteWidth (mm): 173mmHeight (mm): 173mmIP Rating: IP 55 in combination with the folded filterCustoms Tariff No: 39269097Packaging Unit: 5 pc(s).Net Weight (kg): 0.030Net Weight (lb): 0.066Gross Weight (kg): 0.034Gross Weight (lb): 0.075EAN: 4028177042803ETIM 9: EC002513ECLASS 8.0: 27180706$33.46Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SK 3182135
SK 3182135 | Absorbing mat for folded filter, To achieve IP55 degree of protection (except with 3245.xxx) in conjunction with the folded filter of the Blue e+ filter fan., Absorber mat: 100% polyester, White, 3240.900, Not suitable for use in EMC fil
Data Sheet: Data SheetMaterial: Absorber mat: 100% polyesterColor: WhiteWidth (mm): 221mmHeight (mm): 221mmIP Rating: IP 55 in combination with the folded filterCustoms Tariff No: 39269097Packaging Unit: 5 pc(s).Net Weight (kg): 0.060Net Weight (lb): 0.132Gross Weight (kg): 0.062Gross Weight (lb): 0.137EAN: 4028177042797ETIM 9: EC002513ECLASS 8.0: 27180706$33.46Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SK 3183135
SK 3183135 | Absorbing mat for folded filter, To achieve IP55 degree of protection (except with 3245.xxx) in conjunction with the folded filter of the Blue e+ filter fan., Absorber mat: 100% polyester, White, 3243.900, Protection category in combinat
Data Sheet: Data SheetMaterial: Absorber mat: 100% polyesterColor: WhiteWidth (mm): 289mmHeight (mm): 289mmIP Rating: IP 55 in combination with the folded filterCustoms Tariff No: 39269097Packaging Unit: 5 pc(s).Net Weight (kg): 0.075Net Weight (lb): 0.165Gross Weight (kg): 0.087Gross Weight (lb): 0.192EAN: 4028177042773ETIM 9: EC002513ECLASS 8.0: 27180706$0.00Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SK 3184840
SK 3184840 | SK Cooling unit Blue e+ S, wall-mounted, 3412 BTU/h 380-480 V, 2~, 50-60 Hz, carbon steel, WHD: 400 x 950 x 196 mm
Data Sheet: Data SheetMaterial: Carbon steelColor: Housing: RAL 7035 Louvered grille: RAL 7012Supply Includes: Assembly components Wired ready for connection (plug-in terminal strip) Integral electric condensate evaporationWidth (mm): 400mmHeight (mm): 950mmDepth (mm): 196mmWidth (in): 15.7inHeight (in): 37.4inDepth (in): 7.72inCooling Output (W): 35Voltage (V): 380 V - 480 V, 2~, 50 Hz/60 HzRated Power (W): 35IP Rating: Internal circuit IP 55NEMA Rating: UL Type 1 | UL Type 12Customs Tariff No: 84158200Packaging Unit: 1 pc(s).Net Weight (kg): 31.000Net Weight (lb): 68.343Gross Weight (kg): 32.000Gross Weight (lb): 70.548EAN: 4028177949942ETIM 9: EC000855ETIM 8: EC000855ECLASS 8.0: 27180704$5,426.40Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SK 3201050
SK 3201050 | Chopped fiber filter mat, Replacement filter mats for roof fans, filter fans or thermoelectric coolers to effectively protect control enclosure components from dirt, dust and water., Chemical fibers, 0.014 kg, to DIN EN 779: G2, 5, 0.01,
Data Sheet: Data Sheet$37.92Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SK 3201940

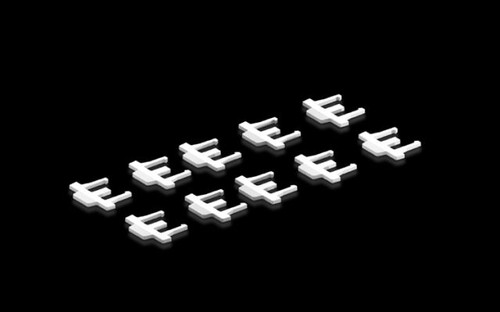

SK 3201940 | Safety clip for Blue e+ filter fan/outlet filter, To prevent unwanted opening of the louver grill in special situations, the safety clip below the function logo can be fitted without the need for tools. This can be used, for example, dur
Data Sheet: Data Sheet$64.96Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SK 3201941
SK 3201941 | SK safety clip for Blue e+ filter fan 3239./3240./3241./3243./3244./3245.
Data Sheet: Data SheetMaterial: PlasticColor: RAL 7035Customs Tariff No: 39269097Packaging Unit: 10 pc(s).Net Weight (kg): 0.010Net Weight (lb): 0.022Gross Weight (kg): 0.016Gross Weight (lb): 0.035EAN: 4028177001299ETIM 9: EC002625ETIM 8: EC002625ECLASS 8.0: 27180706$64.96Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SK 3201970
SK 3201970 | Toroidal Transformer Primary connection 115 V/400 V, For power supply to wall-mounted 230 V air/water heat exchangers. Available with 115 V or 400 V primary connection., Voltage tolerance ± 10%, 1 pc(s)., 3364.X0X, Primary connection 350
Data Sheet: Data SheetSupply Includes: Toroidal Transformer FastenersWidth (mm): 105mmHeight (mm): 123mmDepth (mm): 55mmWidth (in): 4.13inHeight (in): 4.84inDepth (in): 2.17inVoltage (V): 115 V (primary), 1~, 50 Hz/60 Hz | 230 V (secondary), 1~, 50 Hz/60 HzCustoms Tariff No: 85043121Packaging Unit: 1 pc(s).Net Weight (kg): 2.100Net Weight (lb): 4.630Gross Weight (kg): 2.355Gross Weight (lb): 5.192EAN: 4028177690233ETIM 9: EC000855ETIM 8: EC000855ECLASS 8.0: 27180704$573.88Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SK 3209100
SK 3209100 | SK Air/water heat exchanger, roof-mounted, 8530 BTU/h 230 V, 1~, 50/60 Hz, basic controller, water-carrying parts: copper/brass, WHD: 597 x 417 x 475 mm
Data Sheet: Data SheetColor: RAL 7035Supply Includes: Wired ready for connection (plug-in terminal strip) Drilling template Sealing mat FastenersWidth (mm): 597mmHeight (mm): 417mmDepth (mm): 475mmWidth (in): 23.5inHeight (in): 16.4inDepth (in): 18.7inCooling Output (W): 35Voltage (V): 230 V, 1~, 50 Hz/60 HzRated Power (W): 50IP Rating: IP 55Customs Tariff No: 84158300Packaging Unit: 1 pc(s).Net Weight (kg): 33.250Net Weight (lb): 73.304Gross Weight (kg): 35.000Gross Weight (lb): 77.162EAN: 4028177429819ETIM 9: EC002515ETIM 8: EC002515ECLASS 8.0: 27180712$3,708.60Please Call/Email for Stock Availability (864)-458-9988
