RITTAL
SKU: RX 9360000
RX 9360000 | RX baying set incl. connector for RiLineX Board 3-pole
Data Sheet: Data SheetMaterial: Upper part: carbon steel, zinc-plated Contact plate: E-Cu, tin-plated Front cover: polyamide (PA 6) Fire behavior corresponding to UL 94Color: RAL 35745Supply Includes: 3 rail connectors 1 front cover 1 insulating plateWidth (mm): 154mmHeight (mm): 240mmDepth (mm): 77mmWidth (in): 6.06inHeight (in): 9.45inDepth (in): 3.03inVoltage (V): 4Frequency (Hz): 50IP Rating: IP 2XBCustoms Tariff No: 85369010Packaging Unit: 1 pc(s).Net Weight (kg): 1.880Net Weight (lb): 4.145Gross Weight (kg): 1.924Gross Weight (lb): 4.242EAN: 4028177997431ETIM 9: EC002270$0.00Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: RX 9360004
RX 9360004 | RiLineX Board, RiLineX complete board 550 A incl. busbars 30 x 5 mm. Length 905 mm for 1000-mm-wide cabinets. Fully touch-protected up to IP 2XB, can be upgraded to IP 3X. Can be mounted horizontally, vertically, and overhead. For voltag
Data Sheet: Data Sheet$0.00Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: RX 9360008
RX 9360008 | RX RiLineX board 800 A, 3-pole, incl. busbars E-Cu 30x10 mm, 60 mm busbar center distance, W: 905 mm
Data Sheet: Data SheetMaterial: Polyamide (PA 6) Fire behavior corresponding to UL 94 E-CuColor: RAL 35745 RAL 9005Supply Includes: Including integrated busbarsWidth (mm): 905mmHeight (mm): 246mmDepth (mm): 49.2mmWidth (in): 35.6inHeight (in): 9.69inDepth (in): 1.94inVoltage (V): 4Frequency (Hz): 50IP Rating: IP 2XBCustoms Tariff No: 85369010Packaging Unit: 1 pc(s).Net Weight (kg): 11.500Net Weight (lb): 25.353Gross Weight (kg): 12.032Gross Weight (lb): 26.526EAN: 4028177997417ETIM 9: EC001900$0.00Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: RX 9360024

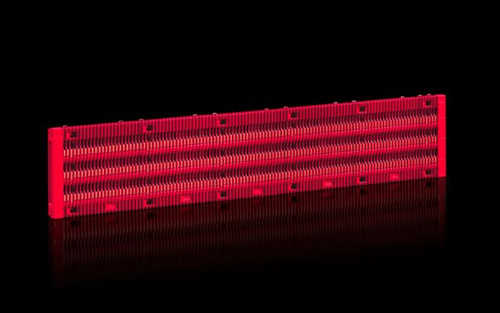

RX 9360024 | RX RiLineX board 550 A, 3-pole, incl. busbars E-Cu 30x5 mm, 60 mm busbar center distance, W: 1,105 mm
Data Sheet: Data SheetMaterial: Polyamide (PA 6) Fire behavior corresponding to UL 94 E-CuColor: RAL 35745 RAL 9005Supply Includes: Including integrated busbarsHeight (mm): 246mmDepth (mm): 49.2mmWidth (in): 43.5inHeight (in): 9.69inDepth (in): 1.94inVoltage (V): 4Frequency (Hz): 50IP Rating: IP 2XBCustoms Tariff No: 85369010Packaging Unit: 1 pc(s).Net Weight (kg): 9.500Net Weight (lb): 20.944Gross Weight (kg): 10.200Gross Weight (lb): 22.487EAN: 4028177997400ETIM 9: EC001900$0.00Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: RX 9360028
RX 9360028 | RiLineX Board, Complete board 800 A, 1,105 mm for 1,200-mm-wide enclosures., Shorter mounting time thanks to pre-mounted complete board, Suitable for applications in the alternating current range up to 1,000 V AC and direct current up to
Data Sheet: Data Sheet$0.00Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: RX 9360064
RX 9360064 | RiLineX Board, RiLineX complete board 550 A incl. busbars 30 x 5 mm. Length 505 mm for 600-mm-wide cabinets. Fully touch-protected up to IP 2XB, can be upgraded to IP 4X. Can be mounted horizontally, vertically, and overhead. For voltage
Data Sheet: Data Sheet$0.00Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: RX 9360068
RX 9360068 | RiLineX Board, Complete board 800 A, 505 mm for 600 mm wide enclosures., Shorter mounting time thanks to pre-mounted complete board, Suitable for applications in the alternating current range up to 1,000 V AC and direct current up to 1,5
Data Sheet: Data Sheet$0.00Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: RX 9360084
RX 9360084 | RiLineX Board, RiLineX complete board 550 A incl. busbars 30 x 5 mm. Length 705 mm for 800-mm-wide cabinets. Fully touch-protected up to IP 2XB, can be upgraded to IP 3X. Can be mounted horizontally, vertically, and overhead. For voltage
Data Sheet: Data Sheet$0.00Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: RX 9360088

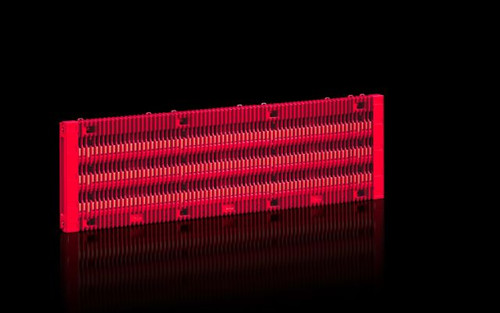

RX 9360088 | RX RiLineX board 800 A, 3-pole, incl. busbars E-Cu 30x10 mm, 60 mm busbar center distance, W: 705 mm
Data Sheet: Data SheetMaterial: Polyamide (PA 6) Fire behavior corresponding to UL 94 E-CuColor: RAL 35745 RAL 9005Supply Includes: Including integrated busbarsWidth (mm): 705mmHeight (mm): 246mmDepth (mm): 49.2mmWidth (in): 27.8inHeight (in): 9.69inDepth (in): 1.94inVoltage (V): 4Frequency (Hz): 50IP Rating: IP 2XBCustoms Tariff No: 85369010Packaging Unit: 1 pc(s).Net Weight (kg): 9.000Net Weight (lb): 19.842Gross Weight (kg): 9.395Gross Weight (lb): 20.712EAN: 4028177997332ETIM 9: EC001900$0.00Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: RX 9360101
RX 9360101 | RX end module set for RiLineX basic module 3-pole
Data Sheet: Data SheetMaterial: Polyamide (PA 6) Fire behavior corresponding to UL 94Color: RAL 35745Supply Includes: Board end element left Board end element right Assembly componentsWidth (mm): 105mmHeight (mm): 240mmDepth (mm): 49.2mmWidth (in): 4.13inHeight (in): 9.45inDepth (in): 1.94inCustoms Tariff No: 85472000Packaging Unit: 2 pc(s).Net Weight (kg): 1.000Net Weight (lb): 2.205Gross Weight (kg): 1.151Gross Weight (lb): 2.538EAN: 4028177997325ETIM 9: EC002270$0.00Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: RX 9360102
RX 9360102 | RiLineX end module set for the 3-pole modular RiLineX board. This set is used to produce the left and right board ends, including all-round contact protection. This end module set can be built on. The scope of delivery includes a left en
Data Sheet: Data SheetMaterial: Polyamide (PA 6) Fire behavior corresponding to UL 94Color: RAL 35745Supply Includes: Board end element left Board end element right Assembly componentsCustoms Tariff No: 85369010Packaging Unit: 2 pc(s).Net Weight (kg): 0.990Net Weight (lb): 2.183Gross Weight (kg): 1.146Gross Weight (lb): 2.526$0.00Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: RX 9360103
RX 9360103 | RX baying set for RiLineX basic module, without connector (simple connection)
Data Sheet: Data SheetMaterial: Polyamide (PA 6) Fire behavior corresponding to UL 94Color: RAL 35745Supply Includes: Board end element left and right Board module cover Board module base plate Assembly componentsHeight (mm): 240mmDepth (mm): 77mmHeight (in): 9.45inDepth (in): 3.03inIP Rating: IP 2XBCustoms Tariff No: 85369010Packaging Unit: 2 pc(s).Net Weight (kg): 1.500Net Weight (lb): 3.307Gross Weight (kg): 1.752Gross Weight (lb): 3.862EAN: 4028177997318ETIM 9: EC002270$0.00Please Call/Email for Stock Availability (864)-458-9988
