RITTAL
SKU: SV 9344010
SV 9344010 | SV NH fuse-switch disconnector, size 00, 160 A, 690 V, 3-pole, screw M8, for mounting plate assembly
Data Sheet: Data SheetMaterial: Polyamide Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-platedColor: Chassis: RAL 7035 Cover: RAL 7035/7001Width (mm): 106mmHeight (mm): 194mmWidth (in): 4.17inHeight (in): 7.64inVoltage (V): 690 V, 3~Customs Tariff No: 85369095Packaging Unit: 1 pc(s).Net Weight (kg): 0.740Net Weight (lb): 1.631Gross Weight (kg): 0.760Gross Weight (lb): 1.676EAN: 4028177540514ETIM 9: EC000249ECLASS 8.0: 27371401$174.21Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SV 9344110
SV 9344110 | SV NH fuse-switch disconnector, size 1, 250 A, 690 V, 3-pole, screw M10, for mounting plate assembly
Data Sheet: Data SheetMaterial: Polyamide Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-platedColor: Chassis: RAL 7035 Cover: RAL 7035/7001Width (mm): 184mmHeight (mm): 298mmWidth (in): 7.24inHeight (in): 11.7inVoltage (V): 690 V, 3~Customs Tariff No: 85365080Packaging Unit: 1 pc(s).Net Weight (kg): 2.138Net Weight (lb): 4.713Gross Weight (kg): 2.140Gross Weight (lb): 4.718EAN: 4028177540606ETIM 9: EC000249ECLASS 8.0: 27371401$678.03Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SV 9344210
SV 9344210 | SV NH fuse-switch disconnector, size 2, 400 A, 690 V, 3-pole, screw M10, for mounting plate assembly
Data Sheet: Data SheetMaterial: Polyamide Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-platedColor: Chassis: RAL 7035 Cover: RAL 7035/7001Width (mm): 210mmHeight (mm): 298mmWidth (in): 8.27inHeight (in): 11.7inVoltage (V): 690 V, 3~Customs Tariff No: 85369095Packaging Unit: 1 pc(s).Net Weight (kg): 3.080Net Weight (lb): 6.790Gross Weight (kg): 3.098Gross Weight (lb): 6.830EAN: 4028177540675ETIM 9: EC000249ECLASS 8.0: 27371401$841.33Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SV 9344310
SV 9344310 | SV NH fuse-switch disconnector, size 3, 630 A, 690 V, 3-pole, screw M10, for mounting plate assembly
Data Sheet: Data SheetMaterial: Polyamide Fire behavior corresponding to UL 94 Contact tracks: Electrolytic copper, silver-platedColor: Chassis: RAL 7035 Cover: RAL 7035/7001Width (mm): 250mmHeight (mm): 298mmWidth (in): 9.84inHeight (in): 11.7inVoltage (V): 690 V, 3~Customs Tariff No: 85369095Packaging Unit: 1 pc(s).Net Weight (kg): 3.600Net Weight (lb): 7.937Gross Weight (kg): 3.800Gross Weight (lb): 8.378EAN: 4028177540736ETIM 9: EC000249ECLASS 8.0: 27371401$951.37Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SV 9344510

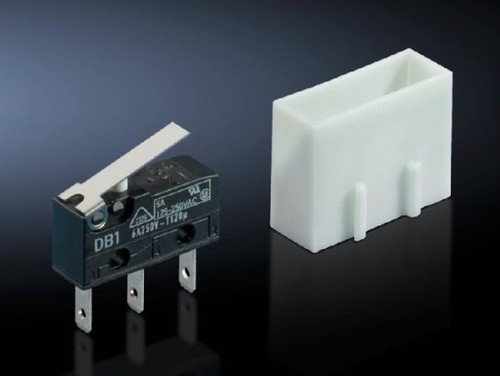

SV 9344510 | Micro-Switches for NH fuse switch disconnectors/NH-fused isolators (185 mm), Incl. plastic lug for attaching the microswitch to the disconnector chassis., 85365019, 2 pc(s)., 0.006, 0.008,
Data Sheet: Data SheetSupply Includes: Incl. plastic lug for attaching the microswitch to the disconnector chassis.Customs Tariff No: 85365019Packaging Unit: 2 pc(s).Net Weight (kg): 0.006Net Weight (lb): 0.013Gross Weight (kg): 0.008Gross Weight (lb): 0.018EAN: 4028177540835ETIM 9: EC001900ECLASS 8.0: 27400613$43.71Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SV 9344620
SV 9344620 | Box terminal for NH fuse-switch disconnectors, For NH fuse-switch disconnectors size 1 to 3 with screw terminal. For direct connection of round and sector-shaped conductors., Cast brass, Nickel-plated, 39269097, 3 pc(s)., 0.39, 0.397,
Data Sheet: Data Sheet$111.12Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SV 9345005
SV 9345005 | Fuse Holders 31 A to 60 A, Fuse holder up to 60 A, 3-pole. Simple mounting on support rails or via OM component adapters., Polyamide Fire protection corresponding to UL 94-V0, RAL 7035, 0.75 ? 25 mm², 0.634 kg, 3-pole, 0.75, 4,
Data Sheet: Data Sheet$393.04Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SV 9345015
SV 9345015 | Fuse Holders 31 A to 60 A, Fuse holder up to 60 A, 3-pole. Simple mounting on support rails or via OM component adapters., Polyamide Fire protection corresponding to UL 94-V0, RAL 7035, 1.5 ? 50 mm², 0.966 kg, 3-pole, 1.5, 2,
Data Sheet: Data Sheet$451.94Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SV 9345035
SV 9345035 | SV Fuseholder, Class J, 60 A, 600 V, 3-pole, (60 mm)
Data Sheet: Data SheetMaterial: Polyamide Fire protection corresponding to UL 94-V0Color: RAL 7035Width (mm): 120mmHeight (mm): 118mmWidth (in): 4.72inHeight (in): 4.65inVoltage (V): 110 ? 600 VCustoms Tariff No: 85369095Packaging Unit: 2 pc(s).Net Weight (kg): 1.240Net Weight (lb): 2.734Gross Weight (kg): 1.280Gross Weight (lb): 2.822EAN: 4028177805408ETIM 9: EC001644ECLASS 8.0: 27400613$516.73Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SV 9345040
SV 9345040 | SV Fuse holder, Class CC, 30 A, 600 V, 3-pole, (60 mm)
Data Sheet: Data SheetMaterial: Polyamide Fire protection corresponding to UL 94-V0Color: RAL 7035Width (mm): 27mmHeight (mm): 200mmWidth (in): 1.06inHeight (in): 7.87inVoltage (V): 110 ? 600 VCustoms Tariff No: 85369095Packaging Unit: 4 pc(s).Net Weight (kg): 0.400Net Weight (lb): 0.882Gross Weight (kg): 0.840Gross Weight (lb): 1.852EAN: 4028177709294ETIM 9: EC001644ECLASS 8.0: 27400613$562.22Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SV 9345100
SV 9345100 | SV Fuse holder, Class J, 61-100 A, 600 V, 3-pole, (60 mm)
Data Sheet: Data SheetMaterial: Polyamide Fire protection corresponding to UL 94-V0 Contact tracks: Electrolytic copper, silver-platedColor: Chassis: RAL 7035 Cover: RAL 7035/7001Width (mm): 184mmHeight (mm): 288mmWidth (in): 7.24inHeight (in): 11.3inVoltage (V): 600 V, 3~Customs Tariff No: 85369095Packaging Unit: 1 pc(s).Net Weight (kg): 2.610Net Weight (lb): 5.754Gross Weight (kg): 2.615Gross Weight (lb): 5.765EAN: 4028177615656ETIM 9: EC001644ECLASS 8.0: 27400613$828.04Please Call/Email for Stock Availability (864)-458-9988 -
RITTAL
SKU: SV 9345200
SV 9345200 | SV Fuse holder, Class J, 101-200 A, 600 V, 3-pole, (60 mm)
Data Sheet: Data SheetMaterial: Polyamide Fire protection corresponding to UL 94-V0 Contact tracks: Electrolytic copper, silver-platedColor: Chassis: RAL 7035 Cover: RAL 7035/7001Width (mm): 210mmHeight (mm): 288mmWidth (in): 8.27inHeight (in): 11.3inVoltage (V): 600 V, 3~Customs Tariff No: 85369095Packaging Unit: 1 pc(s).Net Weight (kg): 3.939Net Weight (lb): 8.684Gross Weight (kg): 3.940Gross Weight (lb): 8.686EAN: 4028177615663ETIM 9: EC001644ECLASS 8.0: 27400613$1,232.61Please Call/Email for Stock Availability (864)-458-9988
