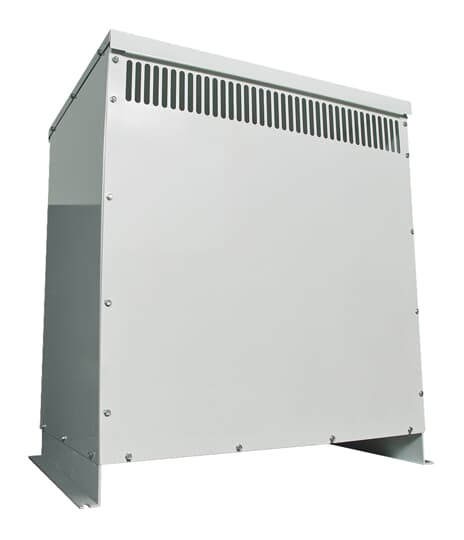

ABB Electrification 9T77H9875G03

3C,112.5KVA,480-208Y,150C,N2,HMT,-30DEG, Standard: No, Enclosure: NEMA 2, Frequency Rating: 60, K Factor: K1, Efficiency: DOE 2016, Primary Voltage: 480, Phase: 3, Secondary Voltage: 208Y/120, Kva Rating: 112.5, Temperature Rating: 40, GE Type QL transformers meet the DOE 2016 efficiency standard. They are available with aluminum or copper windings and utilize a UL recognized 220 C insulation system. They are designed in accordance with UL 1561 (which includes IEEE C57.12.91 and IEEE C57.01), NEMA ST-20 2014, NEMA TP-1 2002, NEMA TP2 2005, and DoE regulation 10CFR part431s-GE's quietest transformer ever-Outward-facing mounting feet makes bolting to the pad a snap-Lug kit included-Ground bar kit included-Core and coil assemblies are mounted on rubber isolation pads to re duce n oi se-Bolted coil ter minat ions-S ingle-piece front/back is easily removable for service-Front panel can be removed just by loosening screws, saving time. (Complete removal of mounting screws is not necessary)-NEMA 2 drip-proof enclosure is standard, weathershield kits are available for conversion to NEMA 3R outdoor configuration-Qualified to the seismic requirements of IEEE-693-2005 and IBC-2012 and CBC 2013-Copper or aluminum windings-Copper ground strap-Robust wood crate packaging with top and side protection protects against shipping & stacking damage-Accessible mounting flanges with front/back slotted mounting holes make installation easier-100PERC factory tested for shorts and coil integrity, current and loss, voltage, impedance and noise. Clear, comprehensive documentation and labeling 9875G03
