Description

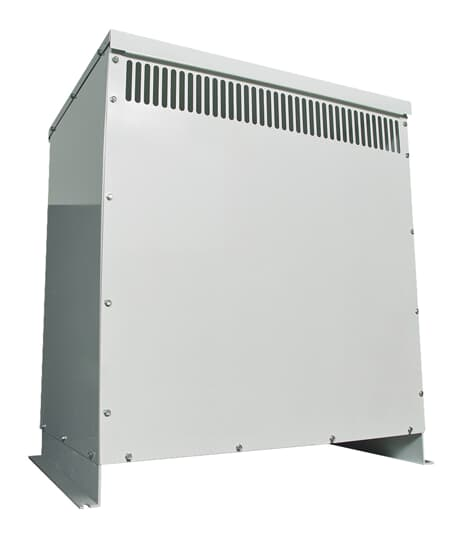

ABB Electrification 9T10C2384
3C,75KVA,600-480Y,150C,N2,K1,DOE, Frequency Rating: 60, Efficiency: DOE 2016, Primary Voltage: 600, Phase: 3, Secondary Voltage: 480Y/277, Kva Rating: 75, Temperature Rating: 40, GE Type QL transformers meet DOE 2016 efficiency standards. They are available with aluminum or copper windings and utilize a UL recognized 220 C insulation system. Quiet Performance-Outward-facing mounting feet-Lug kit included-Ground bar kit included-Core and coil assemblies are mounted on rubber isolation pads to reduce noise-Bolted coil terminations-Single-piece front/back is easily removable for service-NEMA 2 drip-proof enclosure is standard, weathershield kits are available for conversion to NEMA 3R outdoor configuration-Qualified to the s eismic req uirement s of IEEE-6 93-2005 and IBC-2012 and CBC 2013-Copper or aluminum windings-Copper ground strap-Robust packaging with top and side protection protects against shipping damage-Accessible mounting flanges with front/back slotted mounting holes make installation easier-100PERC factory tested for shorts and coil integrity, current and loss, voltage, impedance and noise. Clear, comprehensive documentation and labeling 10C2384
Docs/Downloads
ABB Electrification Stocking Catalog
Videos
Extra Information
Brand:
ABB Electrification
Width:
41.50
(in)
Height:
29.00
(in)
Depth:
37.00
(in)
Weight:
661.00 LBS
Frequency Rating:
60
Efficiency:
DOE 2016
Primary Voltage:
600
Phase:
3
Secondary Voltage:
480Y/277
Kva Rating:
75
Temperature Rating:
40
