Description

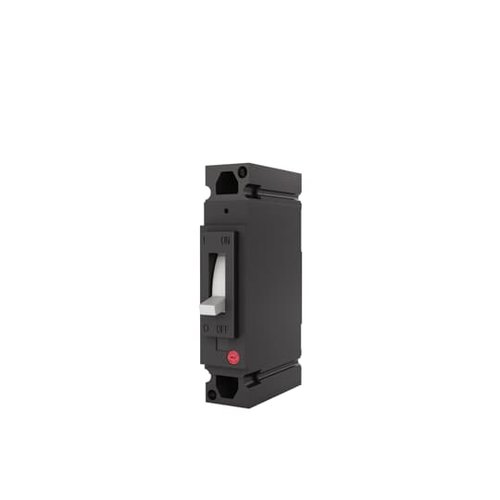

ABB Electrification THED114015WL
15A 1POLE 18KAIC 347VAC 125VDC, Number Of Poles: 1, Interrupt Rating: 20kA at 125 Vdc/65kA at 120 Vac/65kA at 120/240 Vac/65kA at 240 Vac/65kA at 277 Vac, Trip Type: LI, Amperage Rating: 15A, Standard: E11592, Frame: E150, Brand Name: Thermal Magnetic, Trip Range: Non-Interchangeable, Application: Thermal Magnetic, Load Rating: HACR, Sub Brand: E150, The E150 product line consists of Thermal Magnetic Circuit Breakers, Magnetic Circuit Breakers, and Molded-Case Switches rated up to 150 Amps and 600 Volts AC. Catalog numbers include the complete breaker or switch. The WL catalog number suffix indicates that the devices come with Cu/Al line and load lugs. 15A 1POLE 18KAIC 347VAC 125VDC
Docs/Downloads
ABB Electrification Stocking Catalog
Videos
Extra Information
Brand:
ABB Electrification
Width:
41.00
(in)
Height:
48.00
(in)
Depth:
36.00
(in)
Weight:
3.01 LBS
Data Sheet:
Number Of Poles:
1
Interrupt Rating:
20kA at 125 Vdc/65kA at 120 Vac/65kA at 120/240 Vac/65kA at 240 Vac/65kA at 277 Vac
Trip Type:
LI
Amperage Rating:
15A
Standard:
E11592
Frame:
E150
Brand Name:
Thermal Magnetic
Trip Range:
Non-Interchangeable
Application:
Thermal Magnetic
Load Rating:
HACR
Sub Brand:
E150
